(6) Removing the power terminal cover (VFS15-2055PM-W to 2150PM-W, VFS15-4055PL-W to 4150PL-W)
● After wiring is complete, be sure to restore the
terminal cover to its original position.
1)
2)
3)

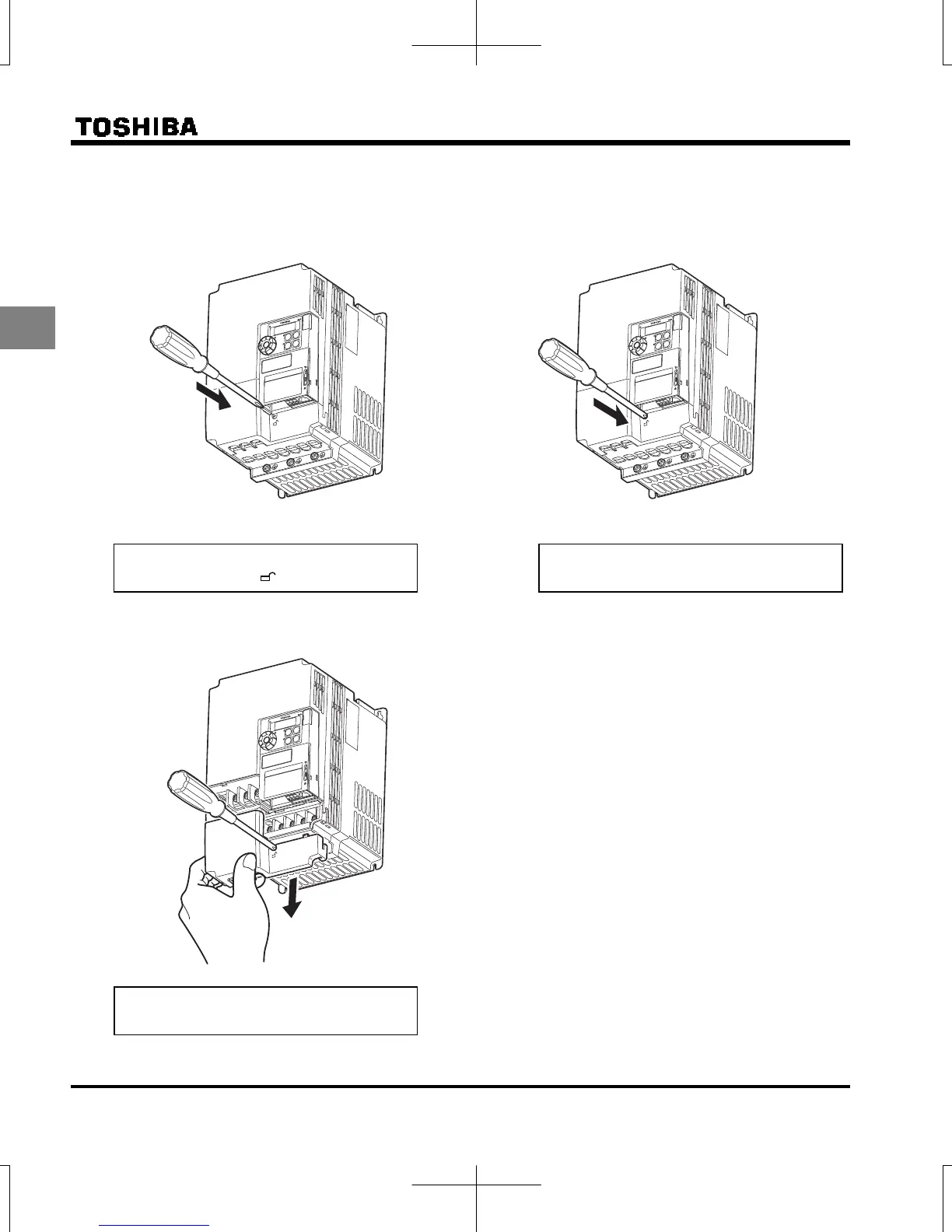

Insert a screwdriver or other thin object into the
hole indicated with the
mark.
Press in on the screwdriver.
While pressing on the screwdriver, slide the
terminal cover downward to remove it.
