Toshiba TOSVERT VFS15-4075PL-W User Manual

E6581611
H-3
8
(Continued)

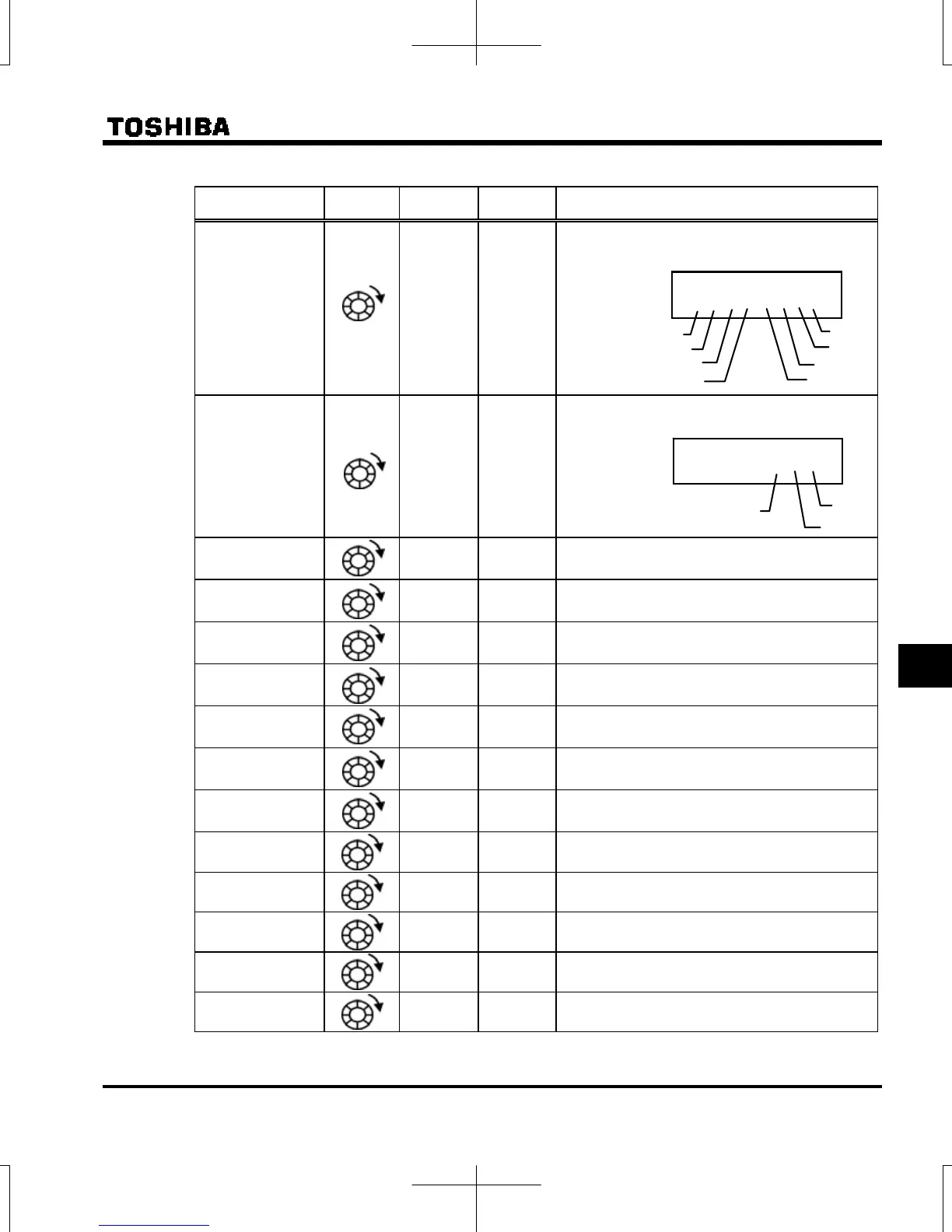

Item displayed
Panel
operated
LED
display
Communic
ation No.
Description
Input terminal
}}i}}i}i
FE06
The ON/OFF status of each of the control signal
input terminals (F, R, RES, S1, S2, S3, VIB, VIA)
are displayed in bits.
ON: 
OFF: 
Output terminal
0 }ii
FE07
The ON/OFF status of each of the control signal
output terminals (RY-RC, OUT, FL) are displayed
in bits.
ON: 
OFF: 
CPU1 version

FE08 The version of the CPU1 is displayed.
CPU2 version

FE73 The version of the CPU2 is displayed.
Inverter rated
current

FE70 The inverter rated current (A) is displayed.
Overload and
region setting

0998
0099
The inverter overload characteristic and region
setting is displayed.
Past trip 1

FE10 Past trip 1 (displayed alternately)
Past trip 2
 
FE11 Past trip 2 (displayed alternately)
Past trip 3
 
FE12 Past trip 3 (displayed alternately)
Past trip 4
 
FE13 Past trip 4 (displayed alternately)
Past trip 5
 
FD10 Past trip 5 (displayed alternately)
Past trip 6
 
FD11 Past trip 6 (displayed alternately)
Past trip 7
 
FD12 Past trip 7 (displayed alternately)
Past trip 8

FD13 Past trip 8 (displayed alternately)
Refer to page H-8 and 9 for notes. (Continued overleaf)
Note 7
Note 7
Note 5
Note 7
Note 4
0 }ii
FL
RY-RC
OUT
}}i}}i}i
VIA
S3
F
R
S2
VIB
S1
RES
Note 7
Note 7
Note 7
Note 7
Note 7
Note 6
