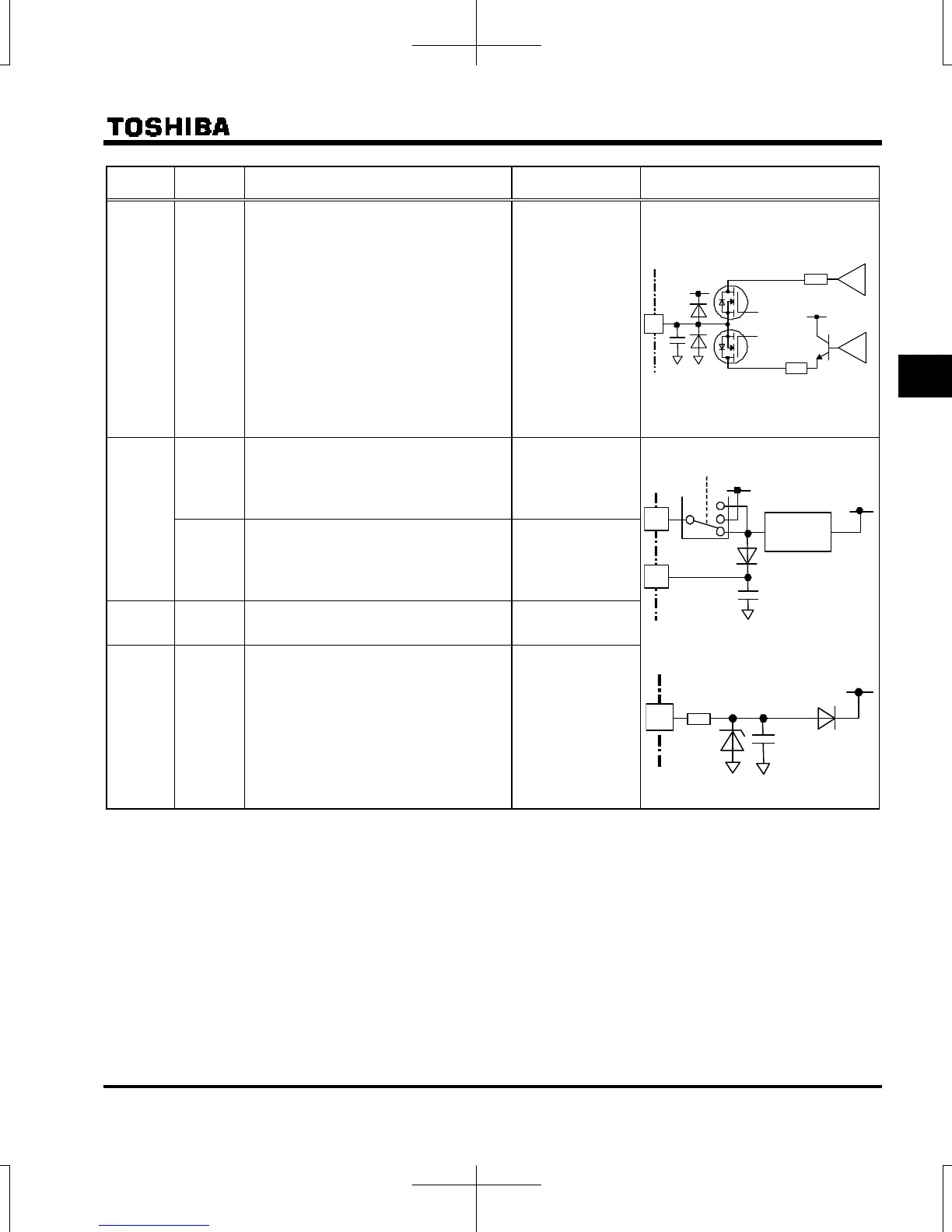

E6581611
B-9
2
Terminal
symbol
Input /
output
Function
Electrical
specifications
Inverter internal circuits
FM Output
Multifunction programmable analog
output. Default setting: output frequency.
The function can be changed to meter
option (0-1mA), 0-10Vdc voltage, or 0-
20mAdc (4-20mA) current output by
parameter setting.
Resolution Max. 1/1000.
1mAdc full-scale
ammeter or
QS60T(option)
0-20mA (4-20mA)
DC ammeter
Permissible load
resistance:
600Ω or less
0-10V DC volt
meter
Permissible load
resistance:
1kΩ or more
P24
Output 24Vdc power output
24Vdc-100mA
Note 2)
+24V
Current
limiter
+24
P24
EXT
SW1
+24V
+SU
1
Input
This terminal can be used as a common
terminal when an external power supply
is used by changing SW1 to PLC side.
-
+24 Output 24Vdc power output
24Vdc-100mA
Note 2)
+SU Input
DC power input terminal for operating the
control circuit. Connect a control power
backup device (option or 24Vdc power
supply) between +SU and CC.
Voltage:
24Vdc±10%
Current: 1A or
more
+24V
68
121
Current
+
–
Voltage
+
–
FM
+24V
