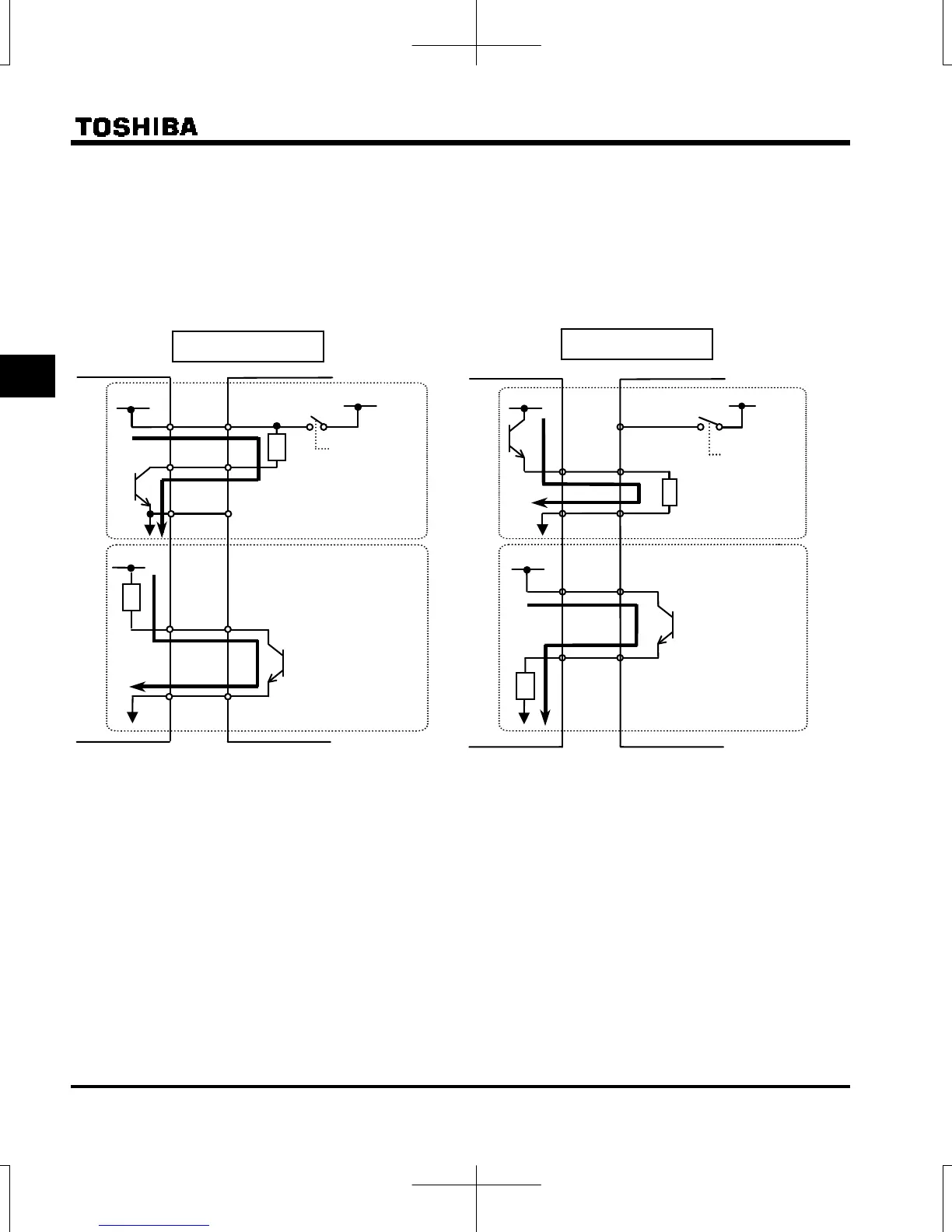

 SINK (Negative)/ SOURCE (Positive) logic connection
(When an external power supply is used)
The P24 terminal is used to connect to an external power supply or to separate a terminal from other input
or output terminals.
<Examples of connections when an external power supply is used>
Note 5) Be sure to connect 0V of external power supply and CC terminal of the inverter.
Note 6) Do not shut down the external power supply on ahead when VIA terminal is used as logic input
terminal by external power supply in SINK logic connection. It could cause unexpected result as
VIA terminal is ON status.
Sink (Negative) logic
Slide switch SW1 : PLC side
Source (Positive) logic
Slide switch SW1 : PLC side
F
Output
In
p
ut
24V
DC
Out
p
ut
OUT
NO
24V
DC
In
p
ut
Common
Inverter
Programmable
controller
P24
Common
24V
DC
SW1:PLC side
CC
24V
DC
In
p
ut
In
p
ut
24V
DC
24V
DC
Output
Output
Inverter
Programmable
controller
SW1:PLC side
P24
Common
Common
F
CC
OUT
NO
Note 5)
