3

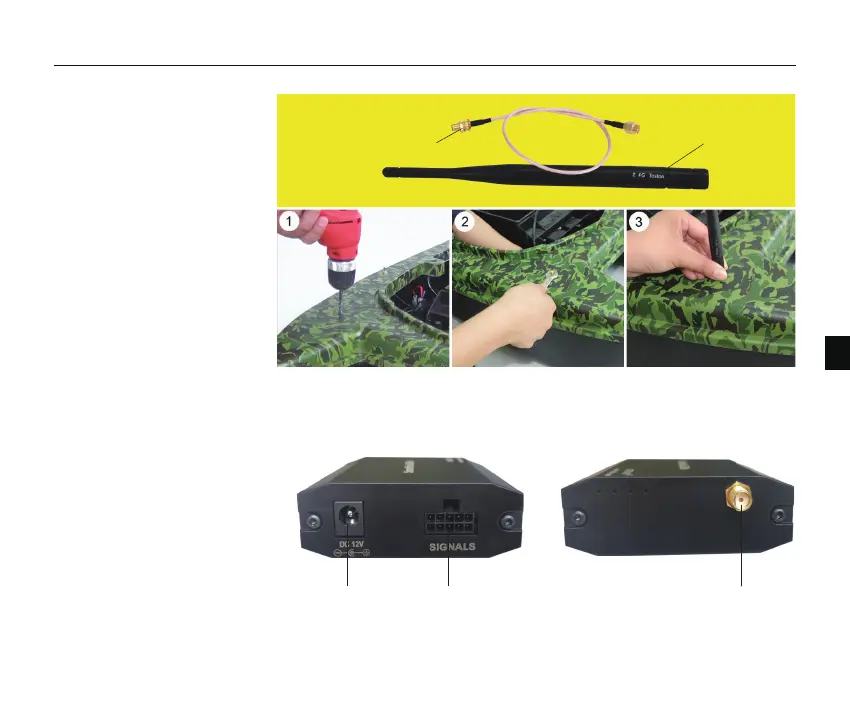

1) Drill an hole (5mm diameter)
on the selected position.
2) Install the SMA cable in the
hole and lock the nut of SMA
connector with washer.
3) Screw the antenna on boat.
SMA radio cable
antenna for SonarBox
Antenna Installation
After all the installation are
nished, please connect the
parts (transducer, antenna,
battery) to the SonarBox.
Then x the SonarBox inside
the boat.
Wiring
Installation (antenna & wiring)
connect to battery connected to transducer
with transducer adapter
connector
connect to antenna
with SMA radio cable
