Socket to
GPS receiver
Switch (Mode set between
X-Pilot and TF640 Gen2 )
Connector to
Antenna
Port B is connected to
Reciver of the remote
Port A is connected to Speed
Contorller(ESC) or Servo
2.1 Connections of CCU

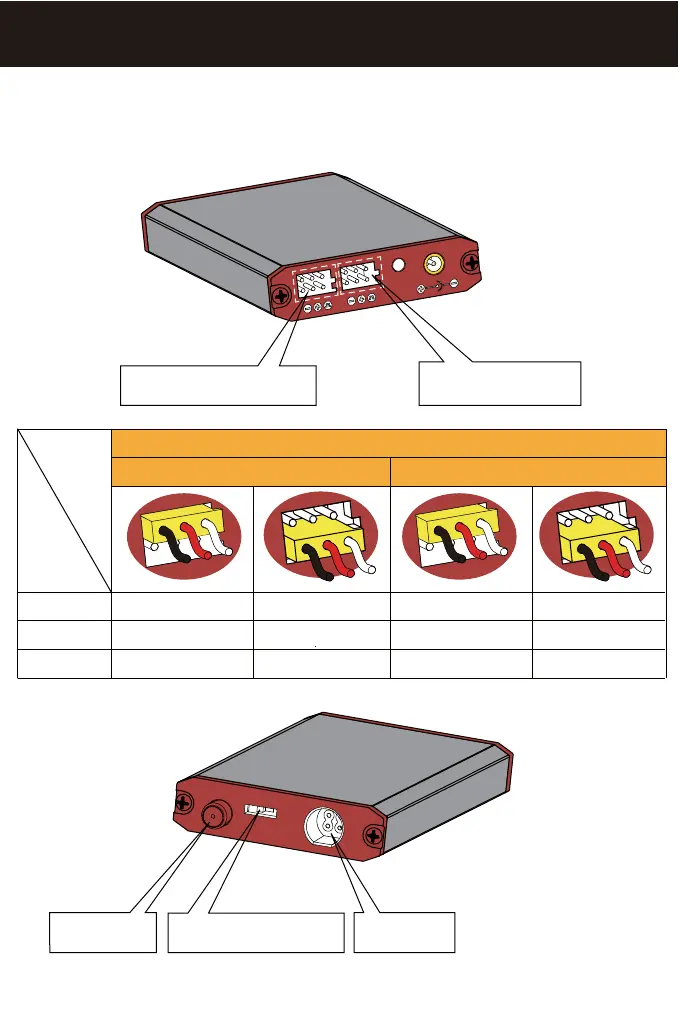

The following figures instruct how to connect the CCU box of X-Pilot with your bait boat.
The system could control most 2 engineers or 1 engine (with rudder) boat with proper settings.
Xboat mode ESC of Right Motor ESC of Left Motor
2 Engines ESC of Right Motor ESC of Left Motor
1 Engine ESC
Servo
channel-3 channel-1
channel of right Motor channel of left Motor
channel of ESC
channel of servo
Port A
Transmitter connection & function
Port B
To Next Page
