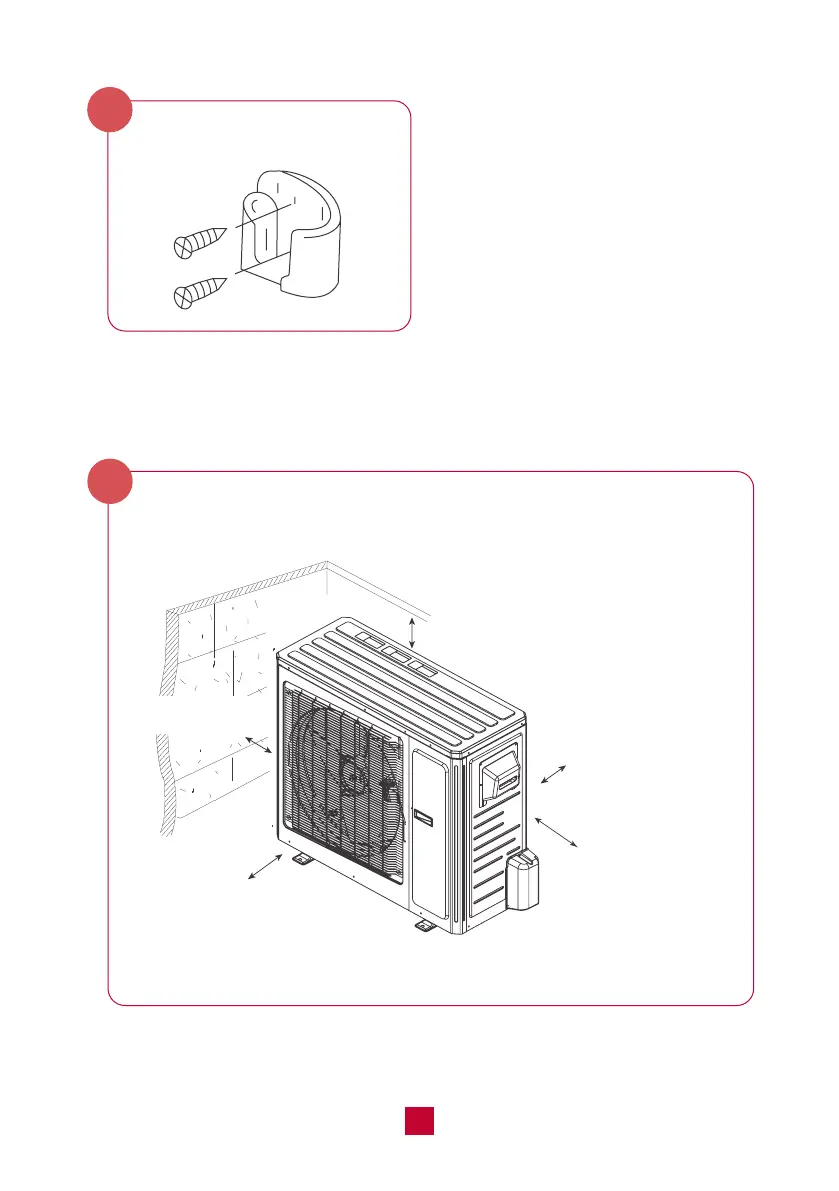

Select a Installation Site
1
Secure the Remote Control
Holder
9
Outdoor Unit:
minimum 19.7in (50 cm)
minimum 78.7in (200 cm)
minimum 19.7in (50 cm)
minimum 11.8 in (30 cm)
minimum
11.8 in (30 cm)
25
27
Table of Contents
Table of Contents
3
Safety Precautions
5
Warning
5
Caution
6
Electrical Safety Warning
7
Part List
8
Required Tools
9
Parts Description
10
Remote Control
11
Function Icons Description
12
Combination Buttons
16
Replacing the Batteries
17
Care and Maintenance
18
Precautions
18
Cleaning the Indoor Unit
18
Cleaning the Reusable Filter
18
Offseason Maintenance
20
Preseason Maintenance
20
Troubleshooting
21
Malfunction Codes
23
Quick Guide for Installation
24
Indoor Unit Installation
29
Select an Installation Site
29
Attach the Mounting Plate to the Wall
30
Connect the Wiring of the Indoor Unit
30
Connecting the Refrigerant Pipings
32
Drilling the Piping Hole on the Wall
35
Mount the Indoor Unit
36
Extend the Pipe by Unwinding It
37
Outdoor Unit Installation
38
Select a Installation Site
38
Install the Drain Joint
39
Secure the Outdoor Unit
39
Connect the Refrigerant Pipe to Outdoor Unit
40
Note on Pipe Length
41
Refrigerant Piping Connection Instructions
41
Connect the Signal and Power Cables
44
Air Evacuation
46
Gas Leak Checks
47
Electrical Safety Checks
47
Test Run
48
Warranty & Customer Support
49
Warranty Information
49
Customer Support
49
