Installation and Maintenance
Service Manual
8. Installation

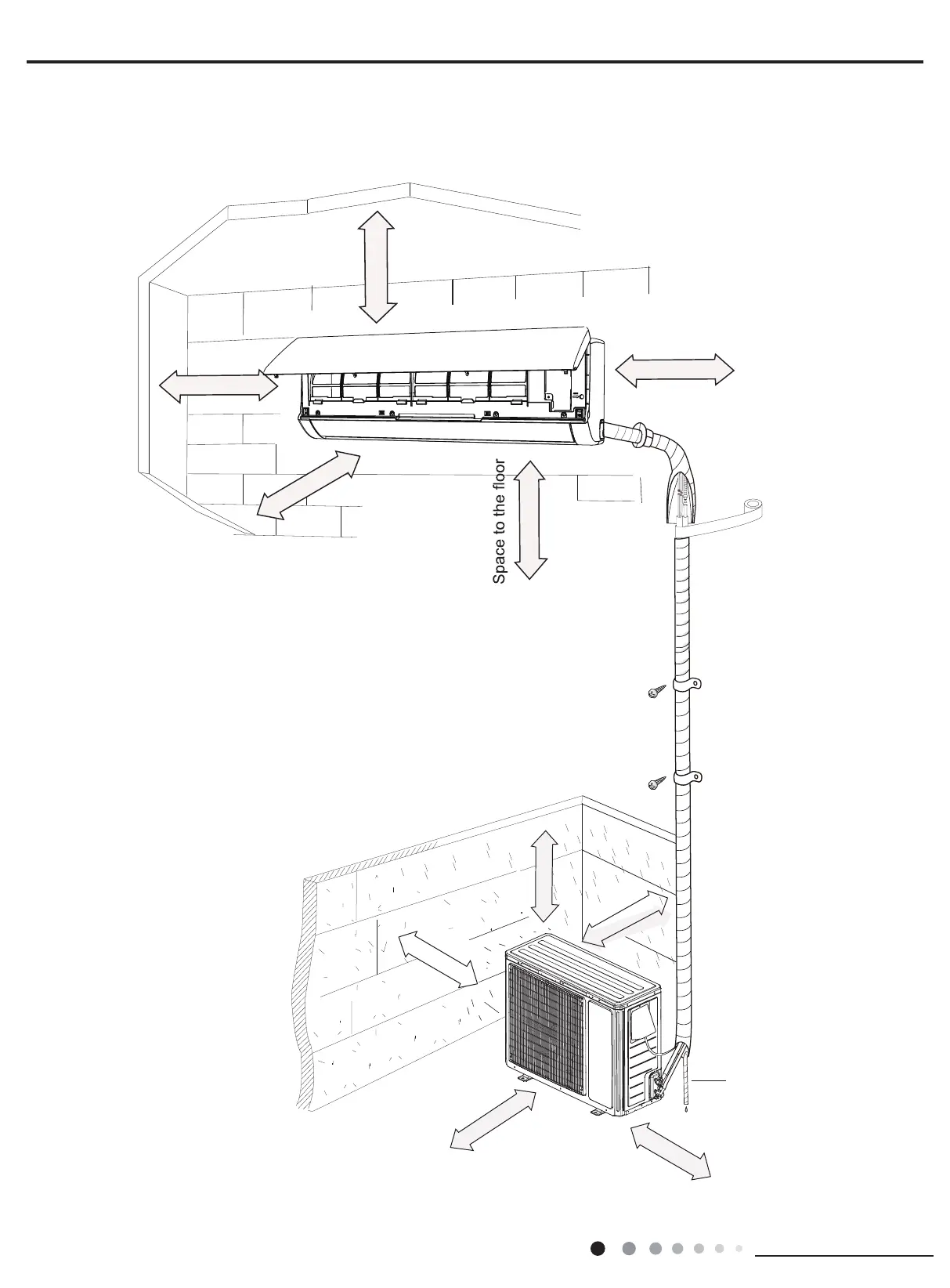

8.1 Installation Dimension Diagram
Space to the ceilin
g
Space to the obstruction
Space to the wall
Space to the wall
At least 5 7/8 inch
At least 98 7/16 inch
At least 5 7/8 inch
At least 5 7/8 inch
At least 118 inch
Space to the obstruction
Drainage pipe
Space to the wall
Space to the obs
truction
Space to the obstructio
Space to the obstruction
At least 19 11/16 inch
At least 11 13/16 inch
At least 19 11/16 inch
At least 11 13/16 inch
At least 78 5/8 inch
