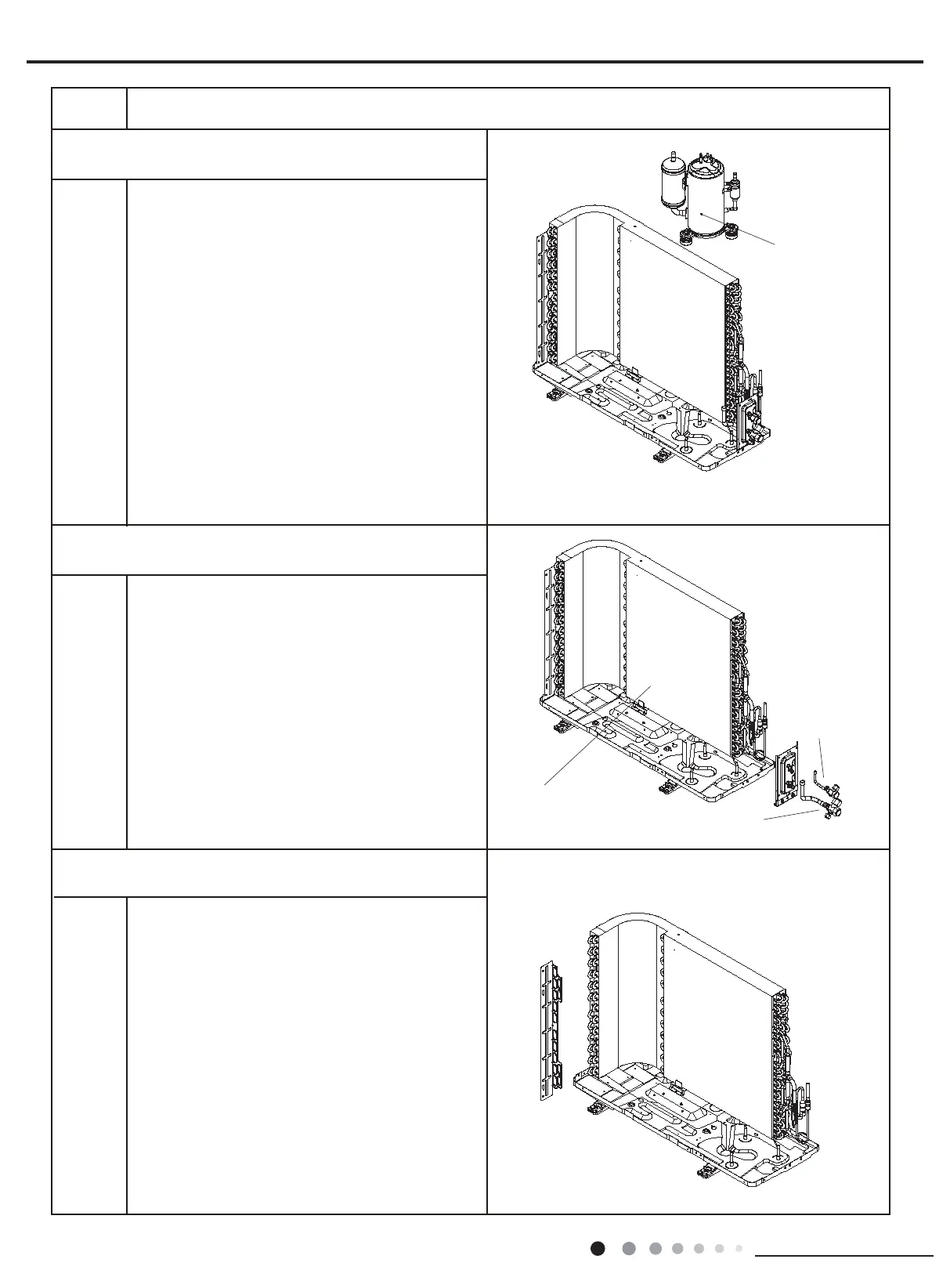

15. Remove chassis sub-assy
14. Remove big and small valve assy
13. Remove compressor
compressor
Remove the three feet screwnuts fixing compressor,
to remove the compressor.
Remove screws connecting condenser assy and
chassis, to remove the chassis sub-assy.
Remove screws connecting condenser assy and
chassis, to remove the condenser assy.
Remove the screws fixing big and small valve, to
remove the valves.
condenser assy
small valve
big
valve
Steps Procedure
To Next Page
