Installation and Maintenance
Service Manual

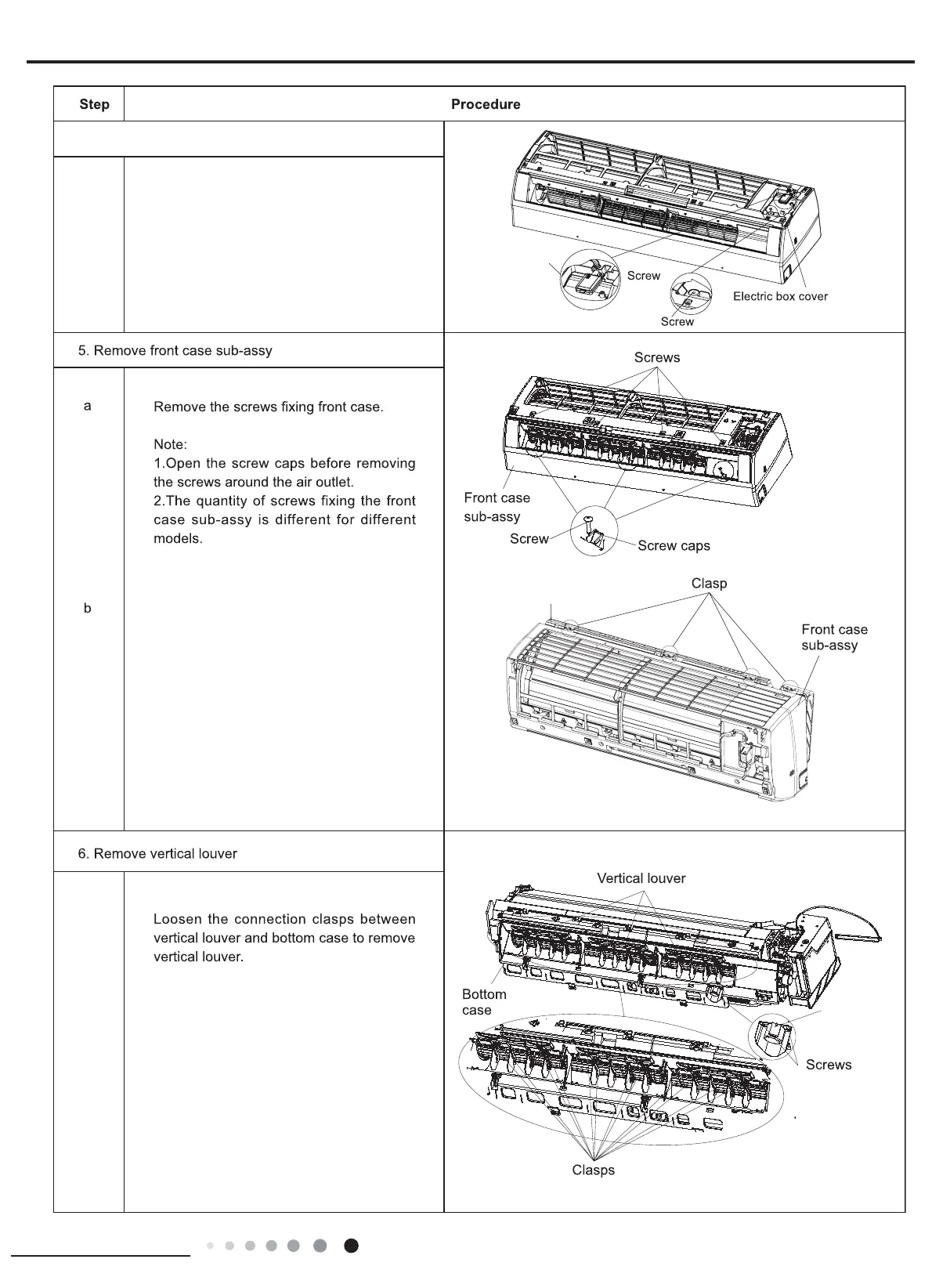

Loosen the connection clasps between
frontcase sub-assy and bottom case.
Lift up the
front case sub-assy and take
Swingmotor
Screw off the screws that are locking
theswing motor and take the motor off.
it out.
4. Remove detecting plate and electric box cover2
Remove the screws fixing detecting plate
and the remove detecting plate.
Remove the screws fixing electric box
cober2 and the remove electric box.
bottom case
Detecting plate
2
