11. Removal Procedure
11.1 Removal Procedure of Indoor Unit
Caution: discharge the refrigerant
completely before removal.

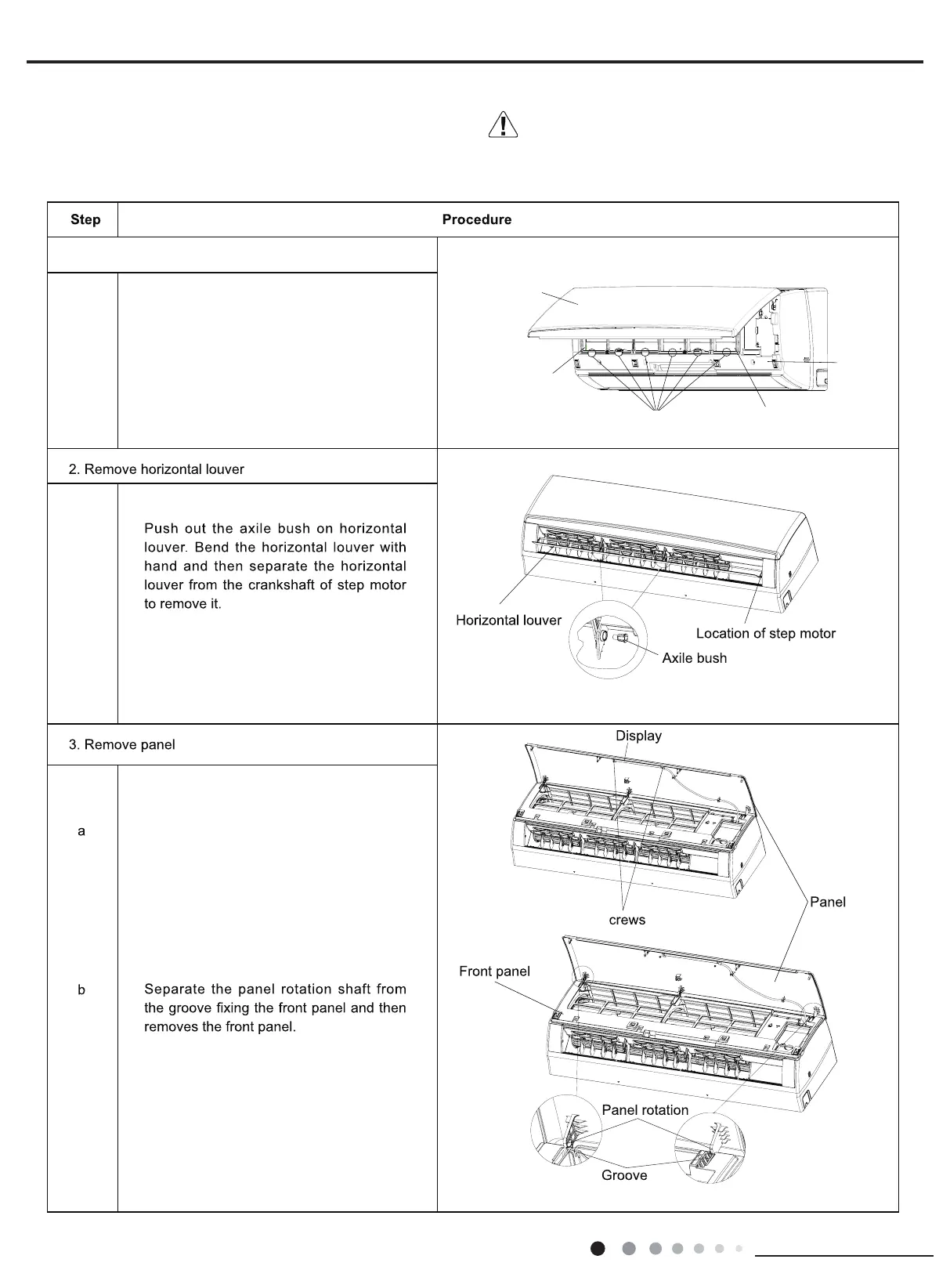

1. Re move filter assy
Open the front panel. Push the left and right
filters to make them break away from the
groove on the front case. Then remove the left
and right filters one by one.
Left filter
Groove Right filter
Front
case
Front panel
Screw off the 2 screws that are locking the
displayboard. Separate the displayboard from
the front panel.
S
To Next Page
