Tosot TW12HQ3D6D User Manual

74
Installation and Maintenance
Service Manual
Indoor tube
tempera ture sensor
Main
board
Wiring
terminal
of motor
Wiring
terminal
of stepping
motor
Screw
Grounding
screw
Wire binder

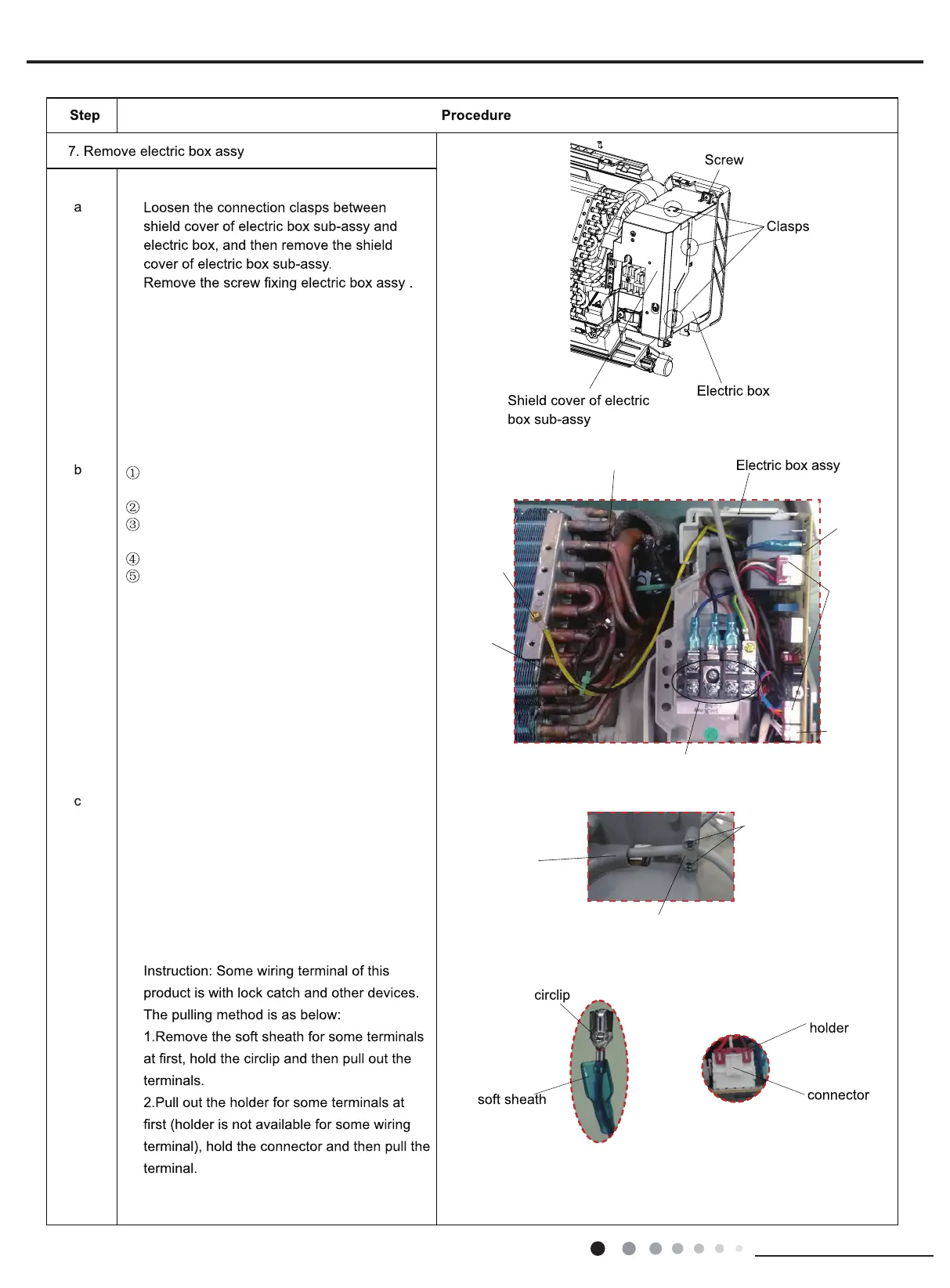

Cut off the wire binderand pull out the
indoor tube temperature sensor.
Screw offone groundingscrew.
Remove the wiring terminals of motor and
stepping motor.
Remove the electric box assy.
Screw off the screws that are lockingeach
lead wire.
Screw
Wire clip
Power cord
Rotate the electric box assy. Twist offthe screws
that are locking the wire clip and loosen the
power cord. Remove the wiring terminal of
power cord. Lift up the main board and take it off.
