ELITE PLUS OWNER’S MANUAL | SET UP
To order optional accessories, please go to TotalGymDirect.com 6

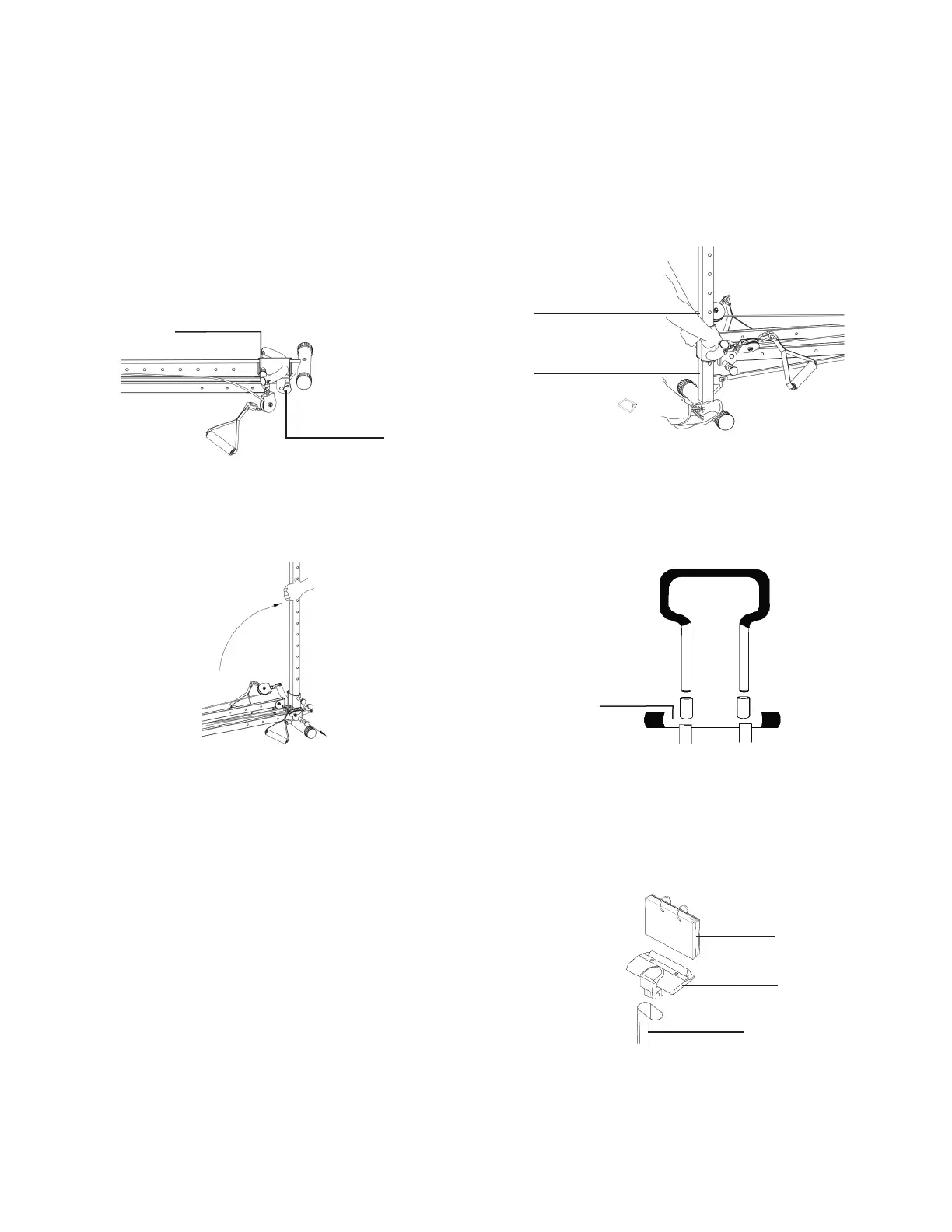

Quick Release Pin
Spring Loaded Pin
B. Take hold of the Vertical Column and pull it up until it is
upright. Release the Spring Loaded Pin. You should hear it lock
back into place. (NOTE: Pin is on left side.)
5. A. Next remove plastic packing ties from the top and bottom
of the Vertical Column. Pull out the Spring Loaded Pin Knob
located at the left rail (NOTE: pin shown in picture is on right
side) to release Spring Loaded Pin. Continue to hold Pin out
while performing the next step.
IMPORTANT: Be sure the Spring Loaded Pin is locked
into place before using your unit. You will know the Pin
is locked into place when you can see the end protrude
through the inside of the Rail Bracket.
6. Position one foot on Back Crossbar to keep the product from
lifting off the floor. With one hand on either the right or left
Rail and the other hand holding the Height Adjustment Quick
Release Pin out, slide the Rails along the Vertical Column to
desired position and release Pin. Pin will pop into place - you
will hear a snap. Last, insert Straight Safety Pin (attached to the
Lanyard on the Height Adjustment Slide Mechanism) through
the hole on the right side of the Height Adjustment Assembly.
NOTE: Insert Safety Hitch C Pin in the side hole located
directly below the Height Adjustment Assembly on the
Vertical Column.
7. PILATES TOE BAR ASSEMBLY
Assemble the Pilates Toe Bar at the opposite end of the unit
by inserting the accessory into the Front Crossbar as pictured
here. Make sure the accessory is fully inserted.
Front Crossbar
8. FLIP CHART ASSEMBLY
To add the Flip Chart, insert the Flip Chart Base into the Vertical
Column. Then secure the Flip Chart onto the Flip Chart Base.
Flip Chart Base
Vertical Column
Height Adjustment
Quick Release Pin
Insert Safety Hitch C Pin into
side hole located directly below
Height Adjustment Assembly on
the Vertical Column
Safety Hitch C Pin
Flip Chart
To Next Page
