INSTALLING SHIELD & BLADE

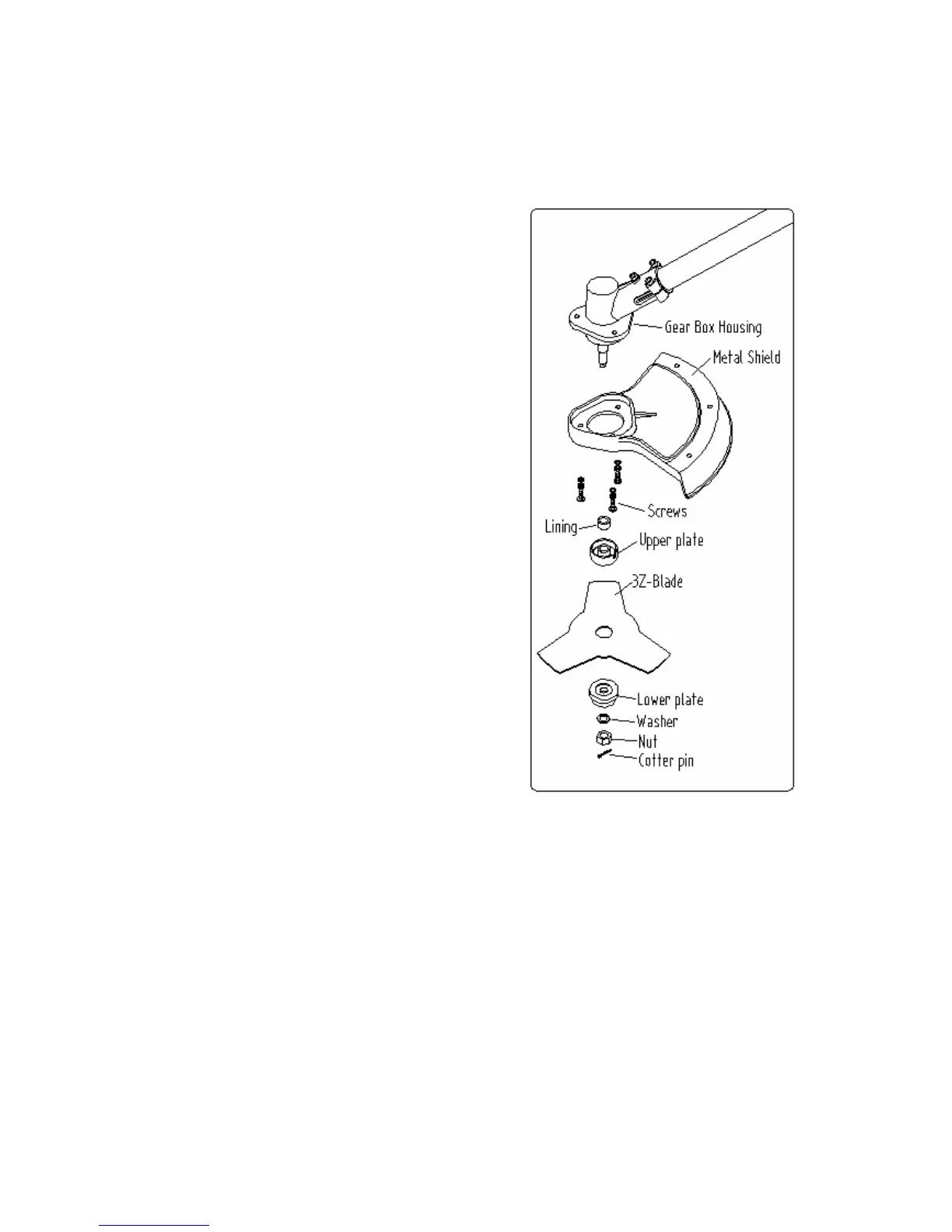

Fit the metal shield to the gear box
housing.
Using three screws and secure to
box housing.
Fit the lining to the gear box housing.
Secure metal blade between upper
and lower plate with nut. Make sure
that cotter pin is installed.
WARNIN G
Ƹ
! CAUTION
METAL SHIELD ONLY TO BE
USED WITH STEEL CUTTING
BLADE
WARNIN G
Ƹ
! CAUTION
EXCESSIVE VIBRATION.
STOP ENGINE IMMEDIATELY
Excessive vibration of blade means
that it is not properly installed-stop
engine immediately and check
blade. Blade not properly installed
will cause injury.

