ASSEMBLY INSTRUCTIONS

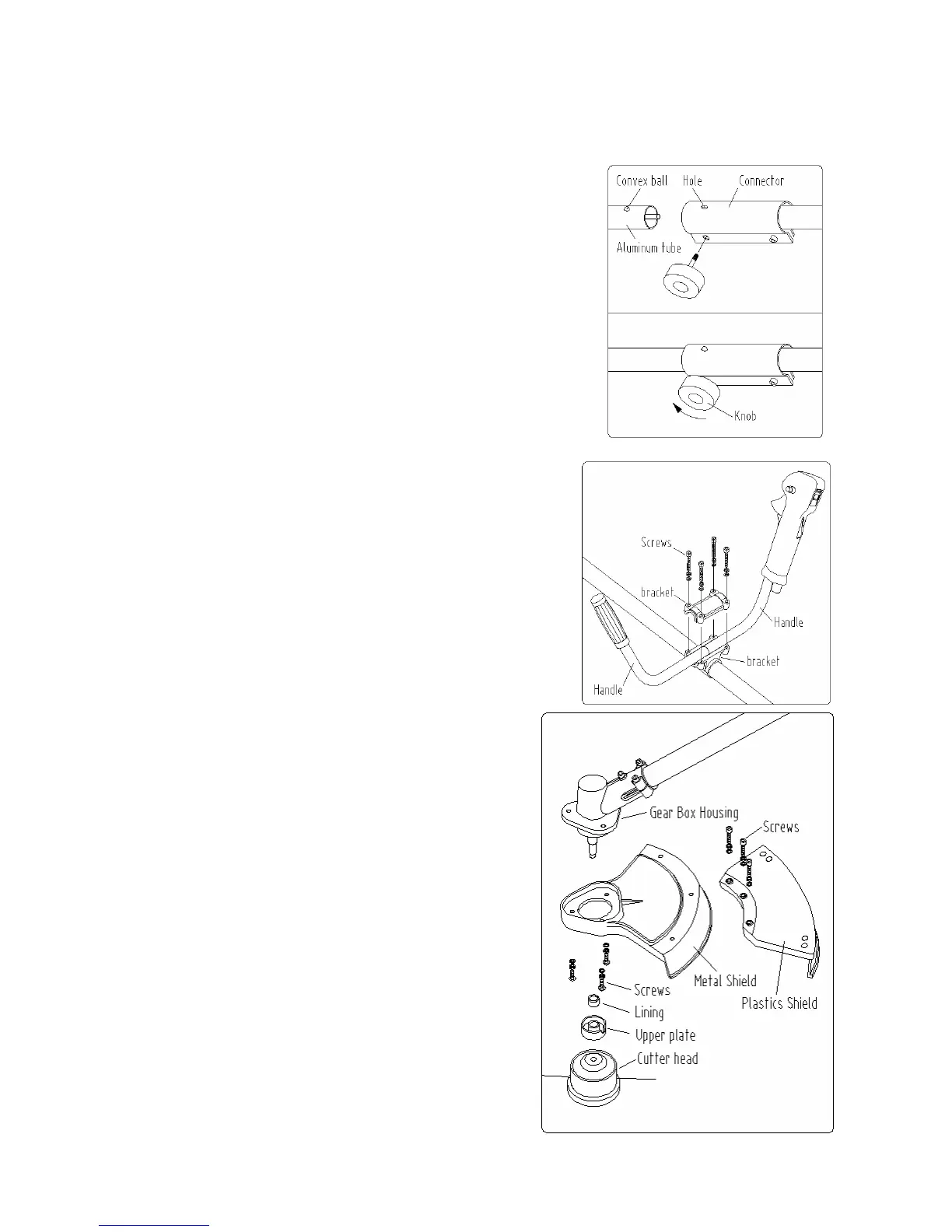

INSTALLING THE LOWER SHAFT
Pack the aluminum tube into the
connector inside, make the convex
ball aim at the hole on connector
Then turning the knob clockwise until it is tight
INSTALLING HANDLE
Install handle in bracket. Position
handle in a comfortable operating
position and tighten two bolts.
INSTALLING PLASTIC SHIELD
(For Nylon Line Operation)
Install the metal shield to the gear box
housing.
using three screws and install
the plastic shield to the metal shield.
using three screws
INSTALLING NYLON LINE
CUTTER HEAD
Fit the lining to the gear box housing.
Align hole in adapter plate with
Hole in shaft and install locking tool.
Thread cutter head onto shaft
(turning
it counter clockwise) until it is tight.
Remove locking tool.
