Transmitter Front Panel Buttons — The transmitter has buttons which
are used to raise or lower the desired set point and change the mode. See
Fig. 2.
SET POINT BUTTONS — The UP ARROW and DOWN ARROW buttons
will raise or lower the current desired temperature set point. The thermostat
will turn on heating or cooling to meet the heating or cooling temperature set
point.
If the thermostat is in AUTO mode, pressing the UP ARROW or DOWN
ARROW buttons will adjust both the heating and cooling set points.
Pressing the UP ARROW or DOWN ARROW buttons in Cooling mode
will adjust only the cooling set points.
Pressing the UP ARROW or DOWN ARROW buttons in Heating mode
will adjust only the heating set points.
The UP ARROW and DOWN ARROW buttons are also used in Program-
ming mode.

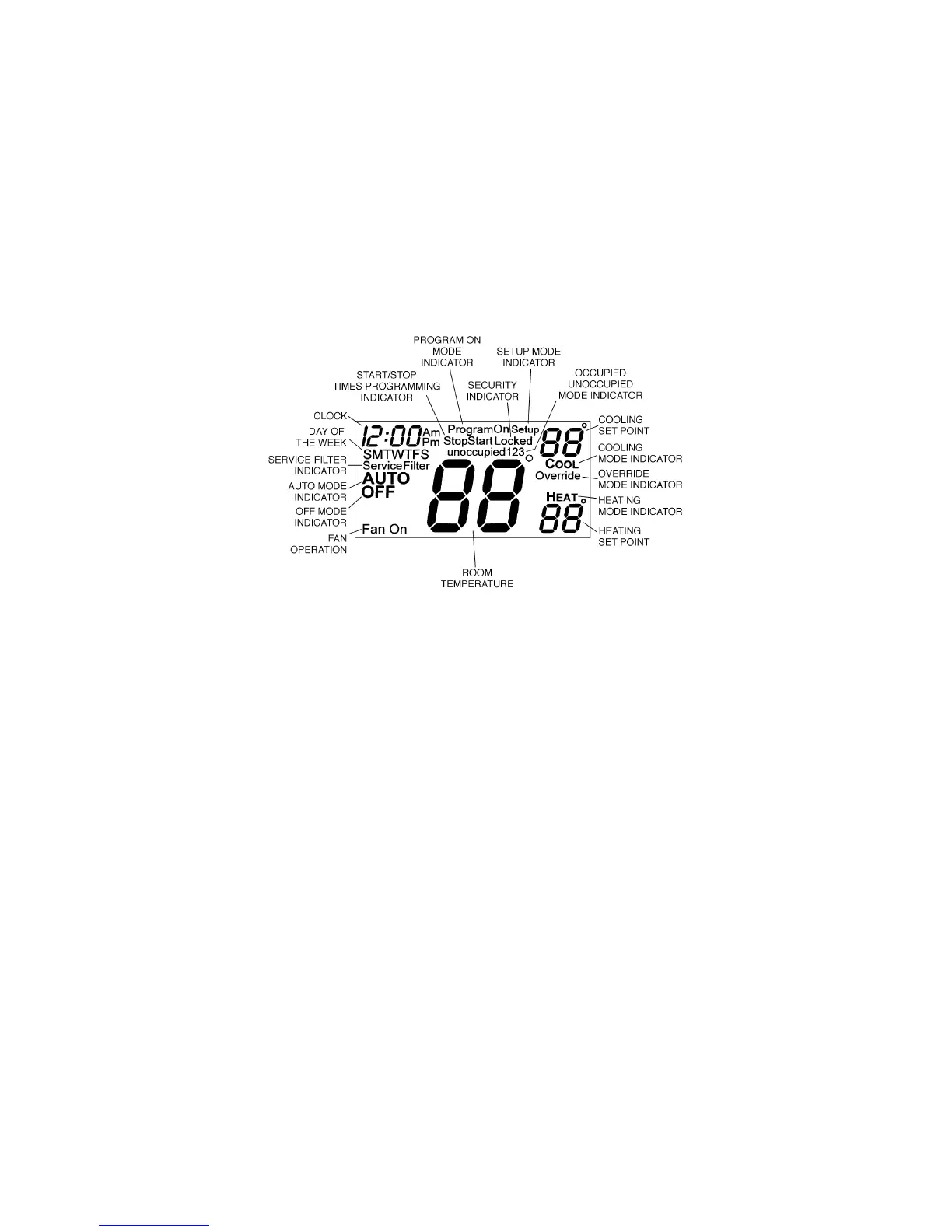

Fig.1—Transmitter Display
4
