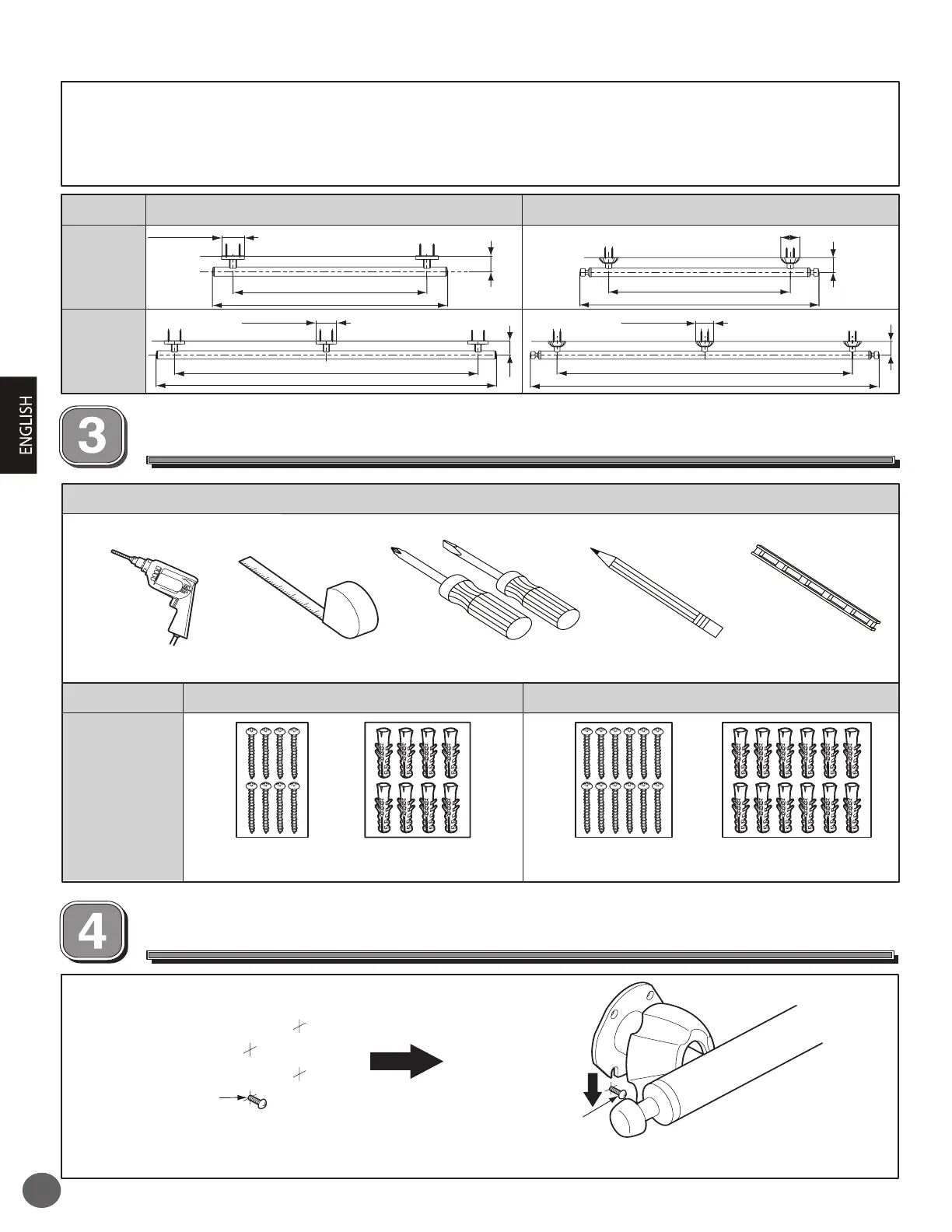

Toto Soiree - Tools and Materials; Recommended Tools; Installation of Grab Bars

2
Soiree Guinevere
2-1/5”(64mm)
2-1/8”(54mm)
24 inches
24”(610mm)
24”(610mm)
32”(803mm)
29”(740mm)
42 inches
42” (1067mm)
42” (1067mm)
50” (1260mm)
47” (1197mm)
Available Finishes: Polished Chrome (#CP), Brushed Nickel (#BN), Polished Nickel (#PN),
Oil Rubbed Bronze (#RB), Polished Brass (#PB),
Rose Bronze (#RS), and Black Nickel (#BL).
Soiree™ and Guinevere™ Grab Bars comply with ICC/ANSI A177.1, ASTM F446 and CSA guidelines.
2-1/8”(54mm)
2-1/8” (54mm)
2-1/8”
(54mm)
2-1/5”(64mm)
2-1/5”(64mm)
2-1/2”(64mm)
Tools and Materials
24” Grab Bar (provided in the box)
42” Grab Bar (provided in the box)
Soiree™
Guinevere™
#9x11/2 (4.5×45mm) #9X11/2(4.5×45mm) Twelve (12) Anchors
Eight (8) Screws
Eight (8) Anchors
Twelve (12) Screws
Recommended Tools
Screwdrivers
Pencil
Level
Tape Measure
Installation of Grab Bars
・Installation method
Partially drive
the screw in.
Use the cut-out hole
to hang the product
temporarily for easy
installation.
Drill
