Hardware Overview and Installation

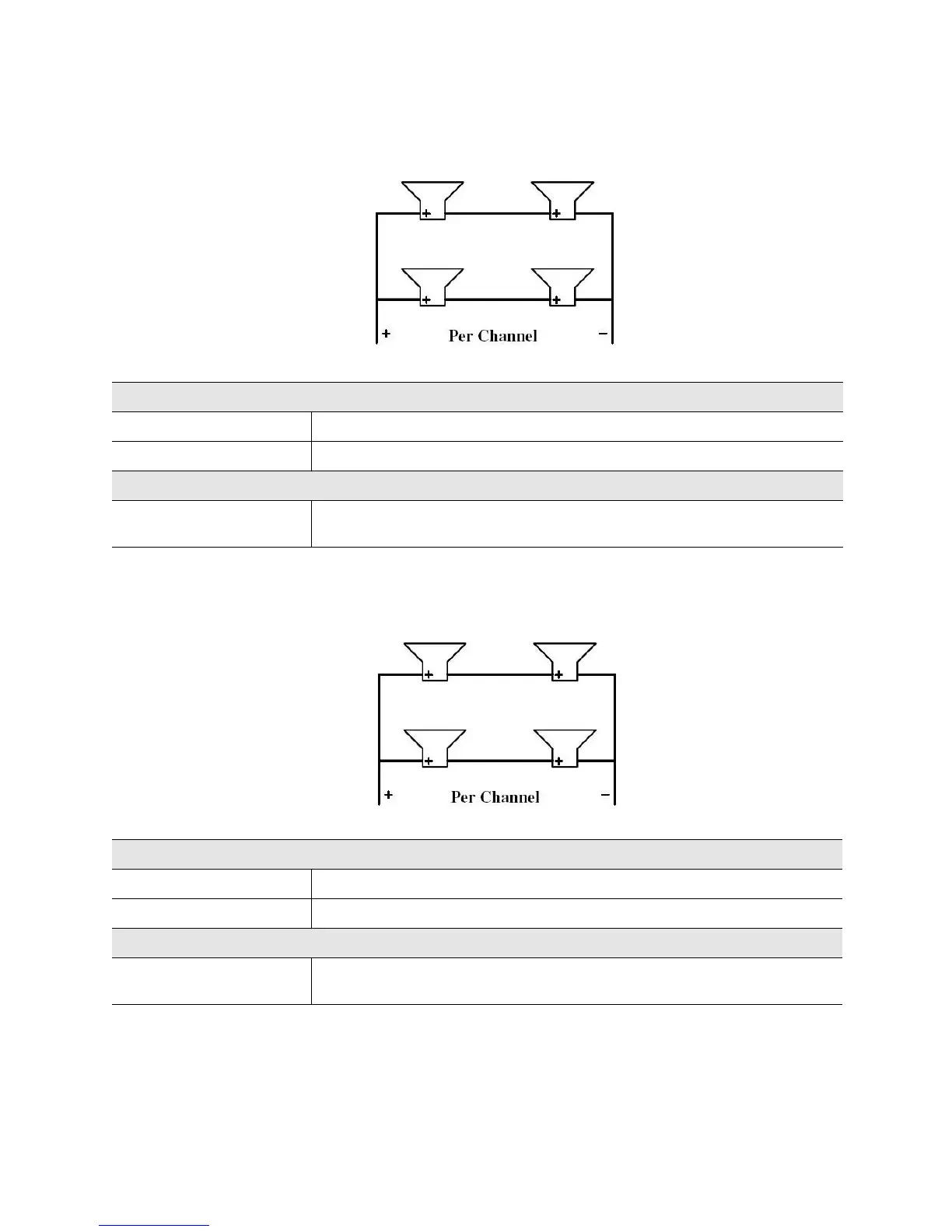

Example 1: TouchTunes 2-Way Speakers
This example illustrates wiring of TouchTunes 2-way speakers (maximum 4 per channel)
for a total impedance load of 4 ohms. Requires setting 4-channel mode on the DA950-U.
TouchTunes 2-Way Speakers Wiring
Row (series) impedance specifications
Row 1 2 speakers in series: 4.0 ohms + 4.0 ohms for a total of 8 ohms per row.
Row 2
2 speakers in series: 4.0 ohms + 4.0 ohms for a total of 8 ohms per row.
Total impedance specifications
Connecting Rows 1 and 2 in
Parallel
4.0 ohms total for this combination.
Power over 4 ohms = 125W/channel.
Example 2: Standard 6-Ohm Speakers
This example illustrates wiring of standard 6-ohm speakers (maximum 4 per channel) for
a total impedance load of 6 ohms. Requires setting 4-channel mode on the DA950-U.
Standard 6-Ohm Speakers Wiring
Row (series) impedance specifications
Row 1 2 speakers in series: 6.0 ohms + 6.0 ohms for a total of 12 ohms per row.
Row 2
2 speakers in series: 6.0 ohms + 6.0 ohms for a total of 12 ohms per row.
Total impedance specifications
Connecting Rows 1 and 2 in
Parallel
6.0 ohms total for this combination.
Power over 6 ohms = 100W/channel.
Row 1
Row 2
Row 1
Row 2
