拓陽精密科 TOYAN ENGINE
28

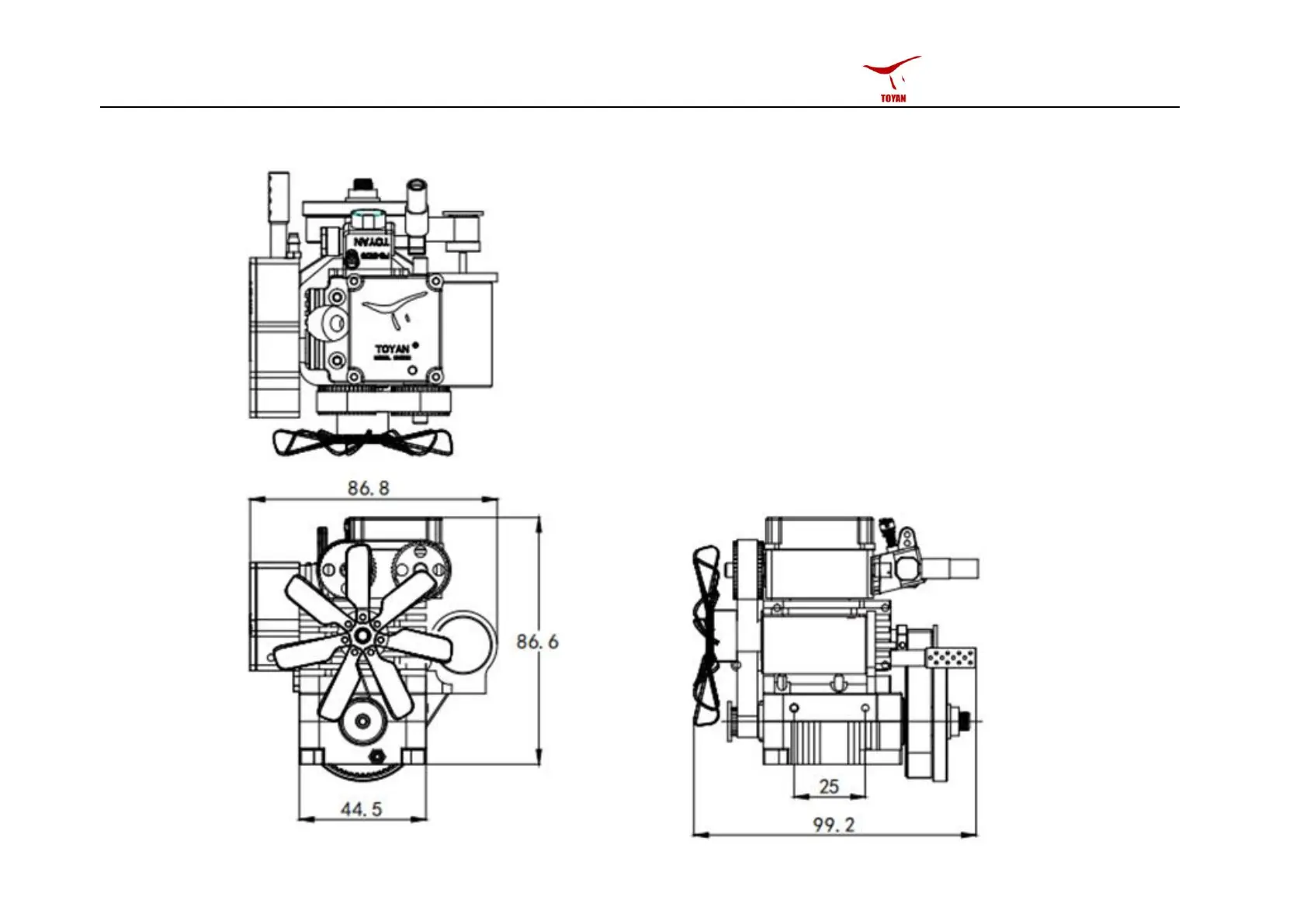

THREE VIEW DRAWING
FS-S100A THREE VIEW DRAWING
Dimension(mm)
Specification
·Displacement: 3.5cc
·Bore: 16.60
·Stroke: 17.0
·Practical rpm: 2500-13500
·Output: 0.5ps @ 11500 rpm
·Weight: 380g
