ATTENTION ABOUT STARTING
For the sake of safety, it is strongly recommended not to disassemble the engine and start the mechanism. If any
starting problems, please contact your local dealer or TOYAN technician to solve them. If return to the factory for testing,
TOYAN will provide you with high-quality after-sales service. If any problem caused by unauthorized disassembly, you will bear
the corresponding responsibilities and expenses
1 .Sparking plug
The Item of FS-S100AT requires a special sparking plug(including already) . , spark plug needs to be done through
the special CDI ignition control, when hall detects display the piston running to the TDC, spark plug will be ignited,
fuel will be ignition,then generate will acting.Therefore, you can control the engine speed by adjusting the damper to
achieve the best effect you want.

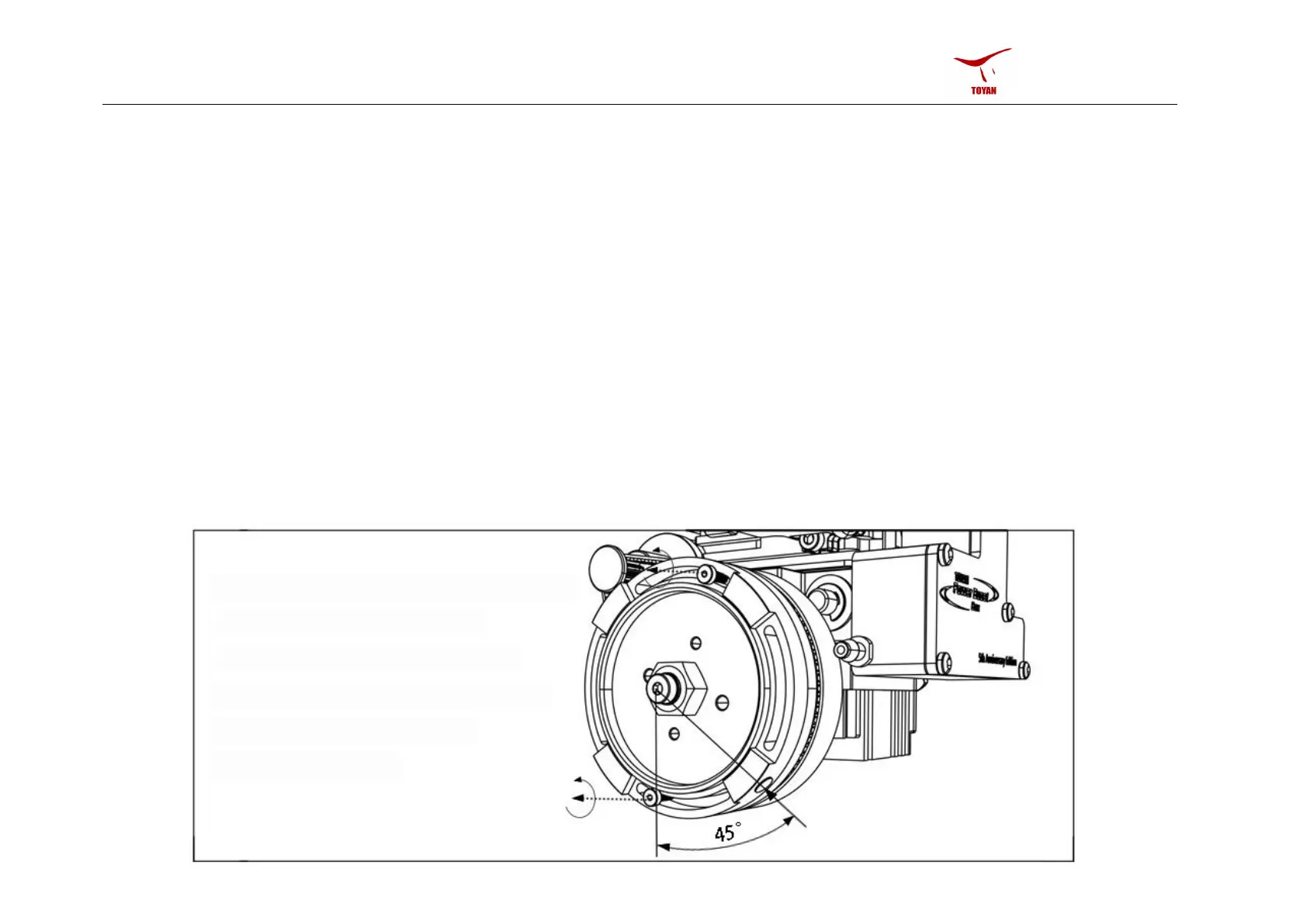

Check the relative position of the magnet before starting (as shown below)：
The marking point of the timing pulley is facing
Under the circumstances (see 11P),
Loosen the two screws on the flywheel,
Turn the collar to make the magnet position
To the arrow (45 degree direction),
Tighten two more screws
