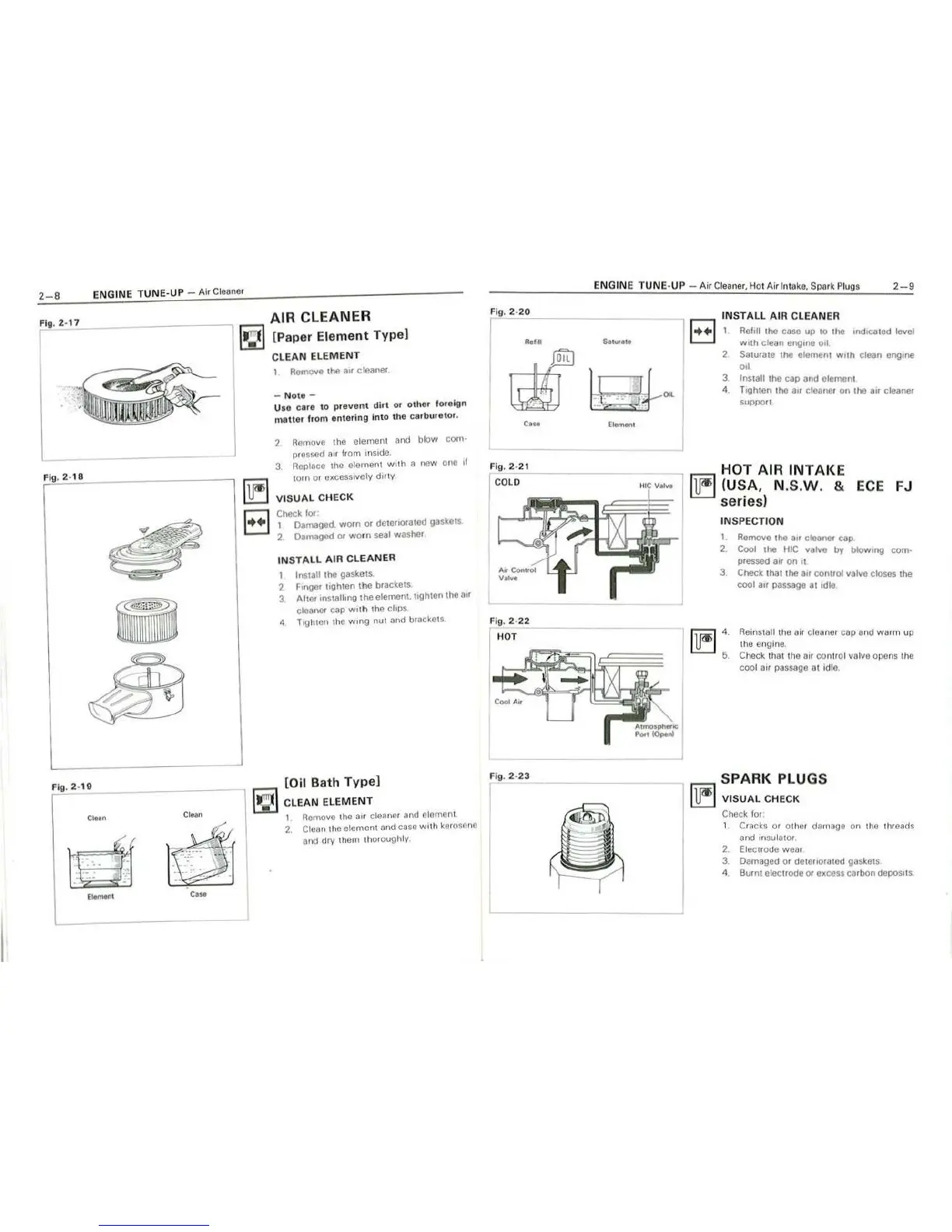

ENG INE TUNE -UP Air Cl eane r
Fig. 2- 17
Fig. 2- 18
Fig. 2- 19
C le an
Cle an
Cue
AIR CLEANER
1 1 ~ 1 [Paper Element Typ e]
CLEAN EL E MENT
Remove 1he air cleaner
- N ot e -
Use care to
preve nt di rt or o th er foreign
mo tt er from entering into the carburetor.
2. Remove 1he element and bl ow coi n·
prossed air from 1ns1de .
3 Replace the element w ith a new one 11
to1n or excess ively dirty
VISUA L CHECK
Check for·
I Damaged. worn or deteriorated gaskets
2. Damaged or worn seal washer
IN STALL AIR CL EA NE R
1 Install the gaskets.
2
Finger 119h1en lhe brackets
3 A her 1nstall1ng the etement.119hton tho au
clcane1 cap wit h t he clips.
4 Tighten
1he w 1 1\9 nut and brackets
[ Oil Bath Type ]
CLE AN E LEM EN T
1 Remove the
a ir cleaner and elemen1
2. Cl ean the element and case with kerosene
and dry them thoroughly
EN GI NE TU N E- UP - Air Clea ne r, Hot Air Intake. Spa rk P lu gs
2 9
Fig. 2 - 20
r
Refill
Ce so
Fig. 2-21
I CO LD
Saturate
El emen 1
lllC Volvo 1
IN STALL AIR CLEA NER
Refill
the case up to tho 1ndrcated level
with clean engine 011
2 Saturate the element w11h clean engine
otl
3. Install the cap and clement
4. T tQhten the air cleaner on the a11 cleaner
suppetl
HOT A IR IN TAKE
~ (USA, N.S .W . &
s er ies)
IN SPECTION
1 Rerroove 1he a11 cleaner cap
ECE FJ
2. Cool the HIC volvo by blowing com·
pressed au on 1t
3 Check that the a11 conuol volvo closes the
cool air passage al 1dlo
Fig. 2 - 2 _ -' 2 '-----~--
HOT
] ~ 4.
5.
Reinstall th e air cleaner cop and w ar m up
the engine.
Check
th at 1h o air control va l ve opens th e
cool air passage
al idl e.
Fig. 2- 23
Atmosphenc
P0tl IOpenl
J
SPARK PLUGS
VISU AL CHECK
Check for
1. Cracks or ot h er dam age on the threads
and
insulator
2. Electrode wear
3. Damaged or
do1 e11ora1od gaskets
4
Burnt electrode or excess carbon depos11s .
