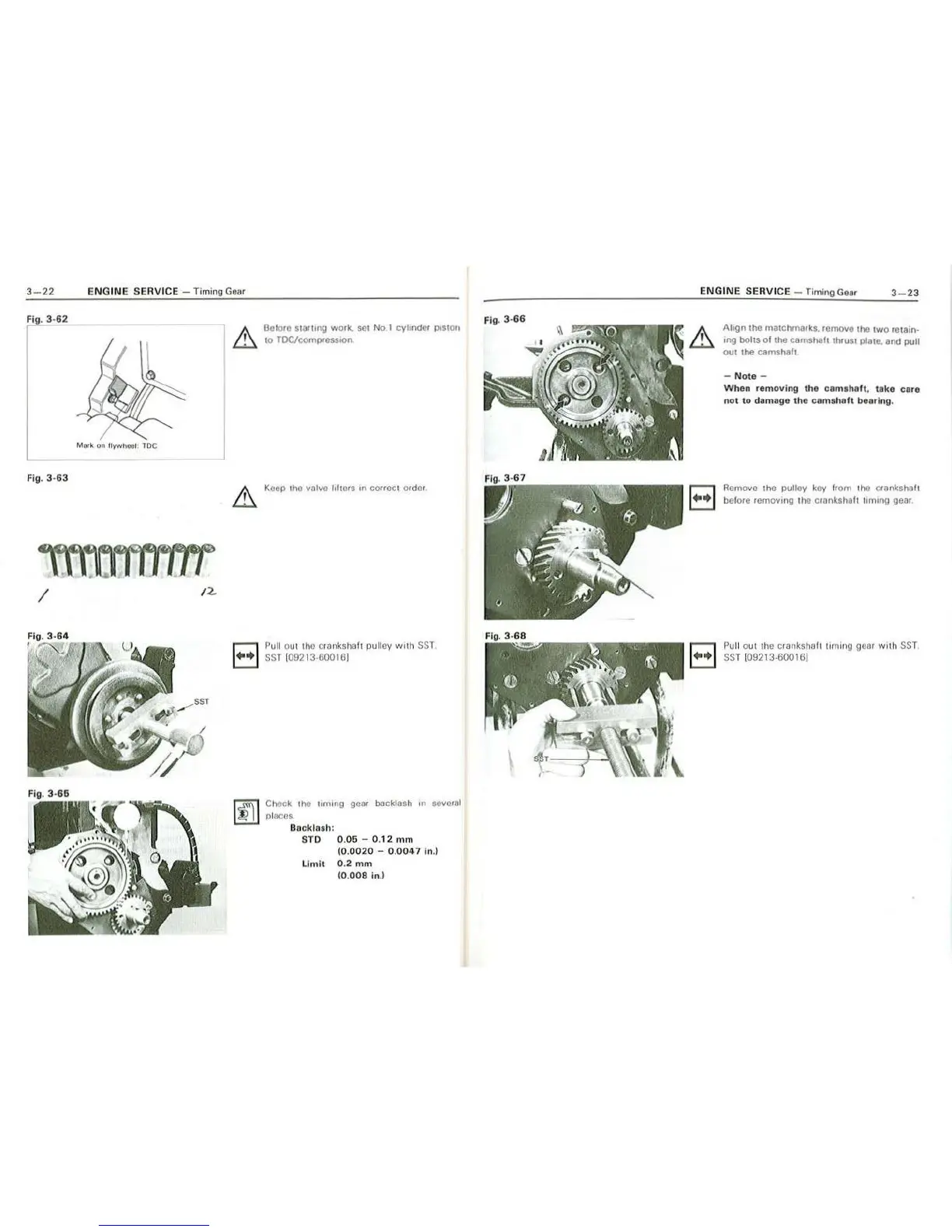

Toyota 2F - Page 30

3-22
Fig. 3- 62
Fig. 3·63
I
Fig. 3· 66
ENGINE SER VI CE - Timing Gear
Matk on llywhool: TDC
Before smrung work. set No I cylinder piston
to TDC/compression
.&. Koop tM valve lifters on correct order
ti.
Pull ou1 tho crankshaft pulley with SST
SST
1092 13 60016)
Ch oc k 1 ho tomong gear backlash on sovoral
pl
aces
Bnck lnsh:
STD 0. 06 - 0 . 12 mm
(0. 0020 - 0. 004 7 In .I
Li mi t 0.2 mm
(0.008 in.)
Fig.
3-66
ENGINE SE RVI CE - Timing Gear
3-23
Align the matchmark s. remove the two retain·
ing bolts of the camshaft thrust plate. and pull
out the camshaft
- Note -
When removing tho camsha ft , take care
not to damage th e camshaft bearing.
Remove the
pulley key from t ho cronkshaft
before removing
th e crankshaft 11mon g gear.
Pu ll o ut 1h c crankshaft llfnmg gear with SST
SST (092 t 3-600 l 6)
