Toyota 2F - Page 31

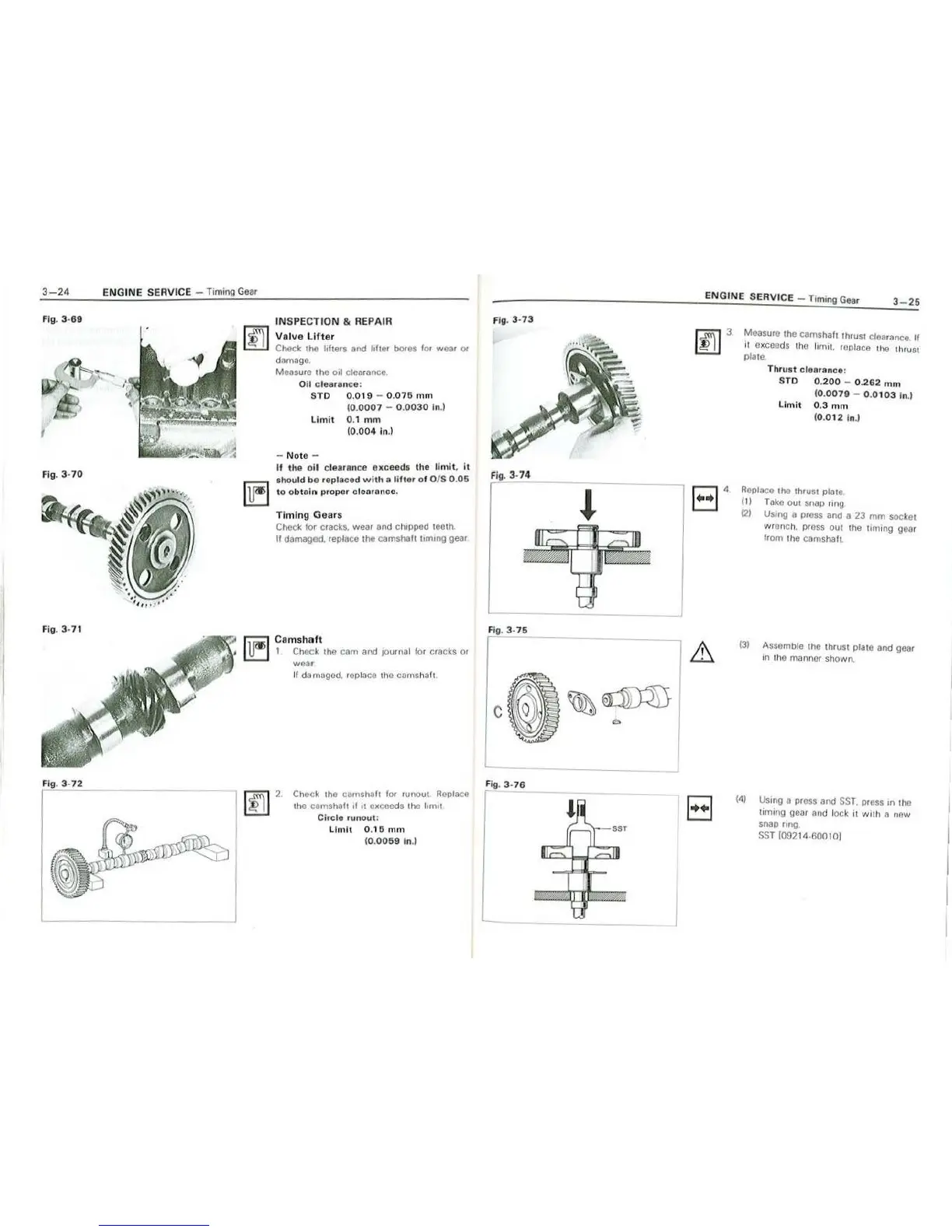

3-24
E NGINE SERVICE - Timing Gear
Fig.
3· 6g
'
Fig. 3· 70
Fig. 3.71
Fig.
3 :E__
INSPECTION & REPAIR
Volve Lifter
Check tho hfters and liher bores for wear or
damage.
Measure
th e oil clearance.
Oil clearance:
STD 0.019 - 0.076 mm
(0.000 7 - 0. 0030 in.I
Limit 0. 1 mm
I0.004 In.I
- Note -
If the oil clearance exceeds lhe flm il , it
shou
ld be replaced with a lifter of 0 /S 0.05
to obtalr\ proper clearance.
Timing Gears
Check for cracks. wear and chrpped toelh.
fl damaged. replace tho camshah t1m1ng gear
Cam shaf t
Check the cam a11d jour na l f or cracks or
wear
II damaged, replace the camshaft.
Check the camshaft for runout Replace
the
camshah 11 11 exceeds the limit
Circle runout:
Li mit 0.16 mm
(0.
0059 In .)
Fig. 3-73
Fig . 3.74
Fig . 3- 75
c
Fig. 3-76
_J
ENGINE SERVICE Timing Gear
3 25
Measure the camshaft thrust clearance If
it oxcoeds tho li mit, replace the thru st
plale
Thrust clearan ce :
ST D 0. 200 - 0 .262 mm
(0.0079 - 0. 0103 In.I
Li mit 0.3 mm
I0 . 012 in .I
Roplace the thrust plate
(I I Take out snap nng
121 Usrng a pross and a 23 mm sock et
wr onch, press out the 11mong gear
from the camshalt
(3)
(4)
Assemble tho thrust plate and goer
1n th o mann er sho wn .
Us i ng a pross and SST, press on tho
timing gear and lock it w11h a now
snap
ring
SST 109214 600 1 01
