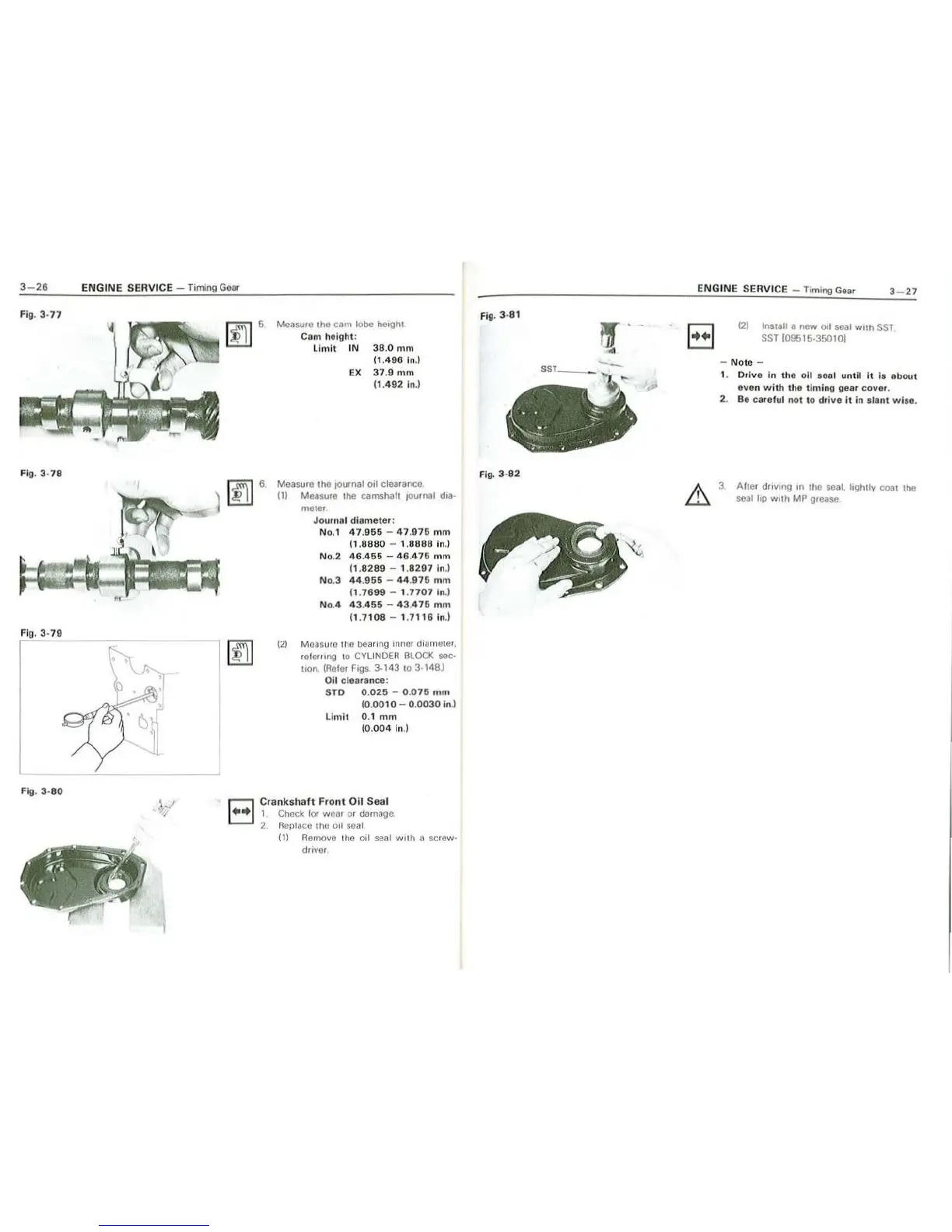

3- 26
ENGINE SERV ICE - Timing Gear
Fig.
3· 77
Fig. 3- 78
~ -
Fig. 3· .;_ 79 .:_ ________ _
Fig.
3· 80
~ 5
) ~ 6 .
l ~
Measure 1he cam lobe he19h1
Cam height :
Limit IN 38.0 mm
11 . 496 in .I
EX 37 .9 mm
(1 . 492 In.)
M easu re 1he 1ournal oil clearance
(1) Measure lhe camshah 1ournal d1a ·
me1er
Journol diameter :
No. 1 47 . 955 - 47 . 976 mm
(1. 8880 - 1 . 0888 in .)
No.2
46.455 - 46.4 76 mm
(1.8289 - 1.8297 in.l
No.3 44 . 955 - 44 . 976 mm
(1. 7699 - 1. 7707 In.I
No .4 43 . 455 - 43 , 476 mm
f1.7108 - 1. 7116 In.I
(2} Mo as ur o Iha bea ring inner d1amo 1er.
referring 10 CYLIND ER BLOC K sec·
11on (Refer Figs 3-143 10 3 140.l
Oil
cl earance:
STD 0. 025 - 0. 075 mm
(0. 0010 - 0. 0030 in .I
Llmll 0.1 mm
(0. 004 in .)
r=J Crankshaft Front Oil Seal
~ 1 Check tor woar or damage
2.
Rep loco 1h o 0 11 seal.
( 1) Remove lhe oil seal wnh a screw·
d11vor
fig . 3 -81
fig, 3· 82
ENG I NE SERVICE - Timing Ge ar
3- 27
(2) lnsiall a now 011 seal w11h SST
SST [09515-35010)
- Note -
1. Drive in tho oil soal until it Is about
even with tho ti ming gear cover .
2.
Be careful not to dr ive it in slant wi se.
After droving 1n lhC seal. hghlly coa1 lho
seal hp wnh MP grease
