Toyota 2F - Page 36

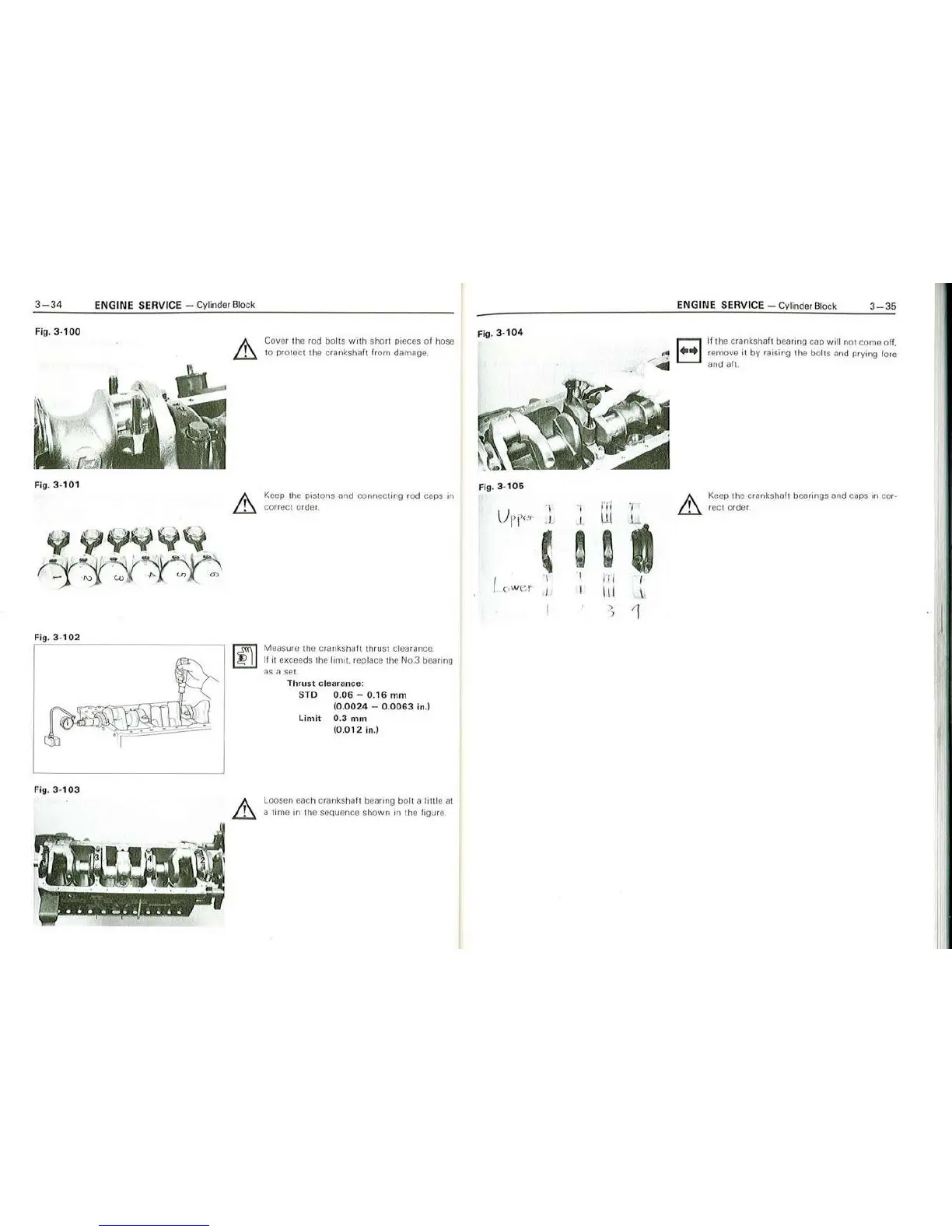

3 - 34 ENGINE SERVICE - Cyli nder Block
Fig. 3-100
Fig. 3-101
Fig. 3. 102
Fig. 3 - 103
Cover l he rod bo lls wi 1h shon pieces of hose
10 pro1 ec1 1he cr an kshaft fr om damage.
Keep lhe pis1ons and connec 11 n9 ro d caps in
co r rec t o rd ei.
Measure 1he cranksha l1 1hru s1 clearance.
If i1 exceeds lhe l im 1 1. replace the No.3 bearing
as a s et
Thrust clearance:
STD 0 . 06 - 0.16 mm
(0.0024 - 0.0063 in .)
Limit 0.3 mm
(0. 012 In .)
Loosen each crankshah bearing bo lt a li1lle a1
a 11 n10 1n the se qu en ce sh own in the fig ur e.
Fig. 3-104
"'
.... .
....
Fig. 3- 1 05
' I 'I /'ii 'f
-1. I !J-\ L
' ! D I
'\ I I 1 ( - I
I 1 I \i
>, 1
ENGINE SERVICE - Cylin de r Blo ck
3-3 5
if l he crankshaft be arin g ca p will no1 come o ff ,
r
emo ve it by raising lhe bolts a "d prying lore
and ah
Keep
lh e c ra nksh ah bearings and caps in co r-
rect
order.
