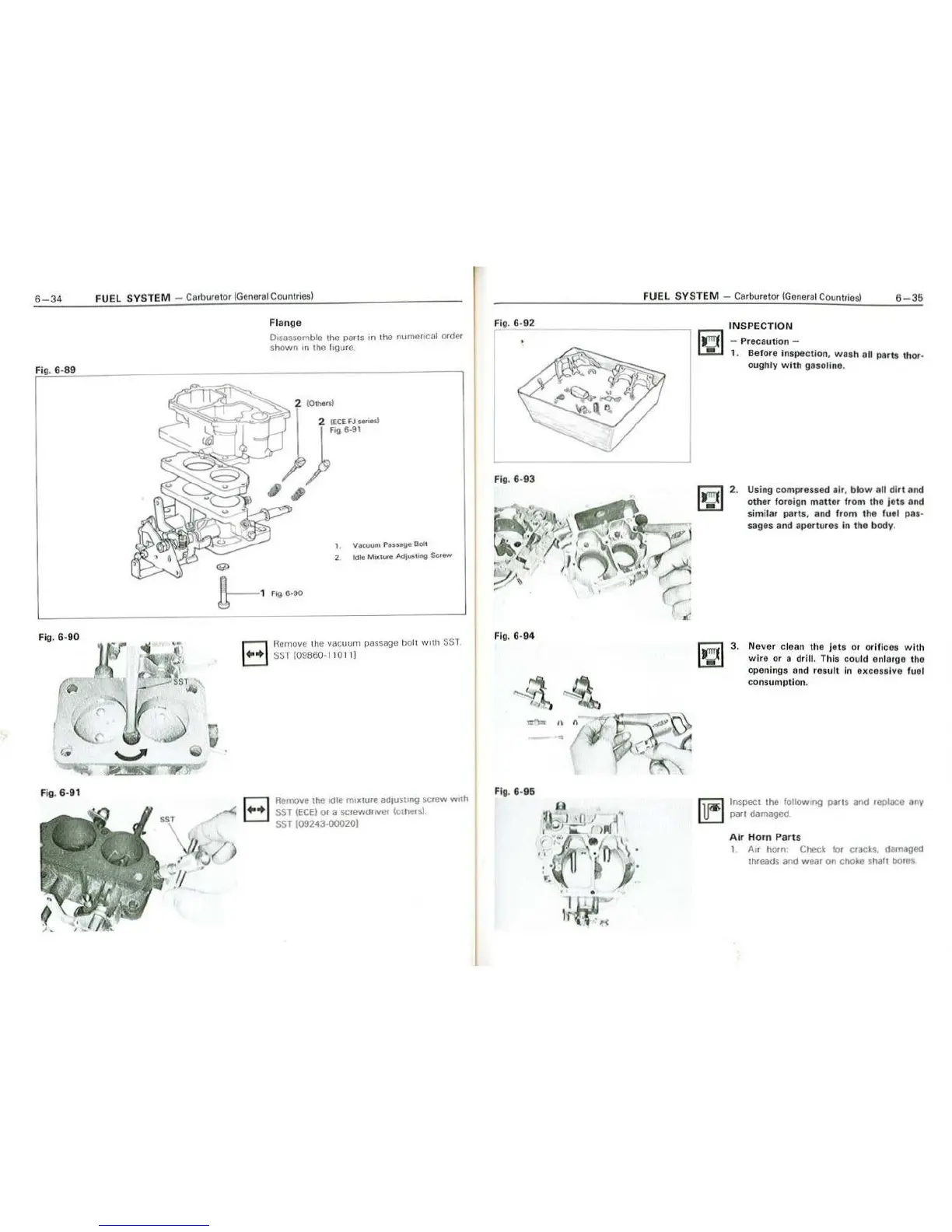

FUEL SYSTE M - Co rburct or (General Countries)
(!j!)
Flange
Oosassomblc the pans on the numerical order
shOwn
on the logure.
2 (Othe<sl
1. v~m P as.s-age Bolt
2 Idle Mix ture Adjusting Sc. 1ew
n- 1 Ftg . 6-90
SST ~ l• .. I
\;;~ ~)
,,. ,
~ I/
Remove th e vacuurn pa ssage bolt wi th SST
SST [09660·
1 I 01 I]
Remove the idle mi xture ad1ust1ng screw with
SST (ECE) or a screwdriver (others!
SST (09243-00020)
Fig. 6· 92
Fig. 6· 93
Fig . 6 · 94
fig . 6- 96
FUEL SYSTE M - Carburetor {General Countries)
6 - 35
J
IN SPECTIO N
- Precaution -
1, Before inspection, wash e ll ports thor ·
ou9hly with gasoline.
~2 .
~3.
Using compressed air. blow all di rt and
other fore
ign matter fr om the jots and
similar parts . and from tho fuol pas·
sages and apertures in tho body.
Never clean the jets or or ific es with
wiro or a dri ll. This cou ld onlorgo tho
openings and
result in o•cesslve fuel
consumption.
Inspect the following pans and replace any
part damaged
Air Horn Parts
1 A" horn Check for cracks. damaged
threads and wear on choke shaft bores
