Toyota 2F - Page 72

6 36

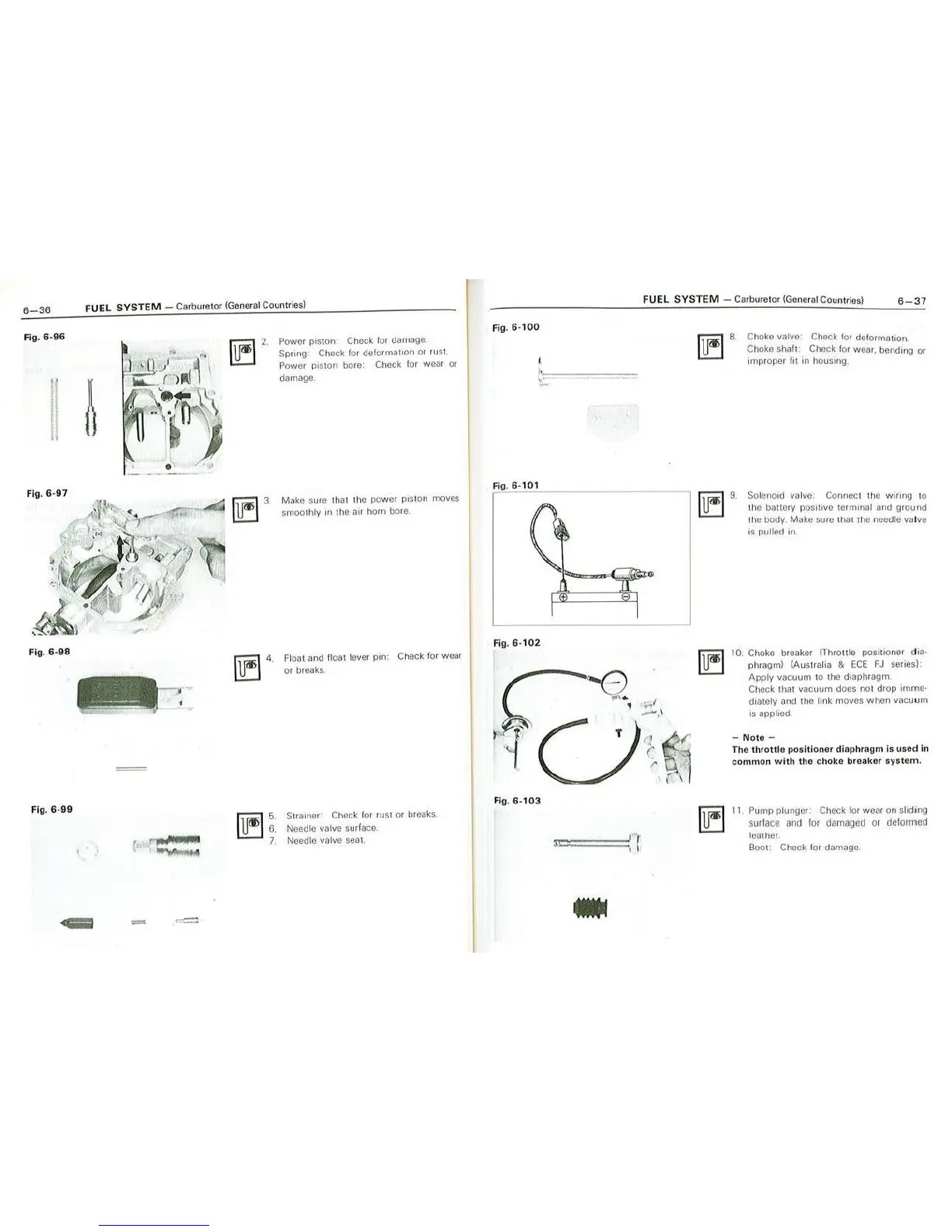

Fig. 6- 96
••
Fig. 6· 97
Fig. 6-98
Fig. 6-99
FU EL SYSTEM - Ca rburetor (Ge n era l Countries)
. .
;··----.
-
{
=
i;e111•
- ....
... -
~ 2 .
~ 4.
Po wer piston. Check t or damage.
Spring. Check
fo r defo r1 na11on or rust.
Po w er piston boro: Check fo r w ea r 01
damage.
Ma
ke sure th at th e power piston mov es
s n1 oothly 10 \h e air horn bore.
Fl oa t a nd float le ver pin: Check for w ear
or br ea ks
5.
St ra iner· Check fo1 rust or breaks
6.
Needle valve surface
7. Needle valve sea t.
Fig.
6-100
l' .. ::--:,-------
~
Fig.6- 10 1
Fig. 6-102
Fig. 6- 103
e
,., .
,
-::: === '=1-n
. \'C t I
•
FUEL SYSTEM - Carburetor (Ge neral Countries)
6 37
-;:...I
-.)
~ 8 .
~ 9 .
Choke valve: Check tor deformati on.
Ch oke sha ft· Check for w ear. bending or
improper
l it in housing.
So lenoid valve: Connect th e w 11 1ng to
th e batlery pos111 vc 1erm1nal and gr ound
th e body. Make su re t ha t th e needle valve
rs pulled 1n
10. Choke break er (T hroule J)-OS1 t io ner dia·
phragm) (Austral ia & EC E FJ series):
Apply vacuum to
the diaphragm.
Ch
ec k tha I vacu um d oes not drop rmme·
diately and the li nk 1 no ves wh en vacuum
is applied
- Note -
The throttle positioner diaphragm is used in
common with the choko breaker system.
11 . Pu mp plunger· Ch eck f or w ea r on sliding
surface and for damogod or deformed
lealher.
Boot: Ch ec k tor damage.
