Toyota 2F - Page 76

6 - 44
Fig. 6 -12 4
fig . 6 · 12 6
' ' ' ' r
.,..,,,,,.;

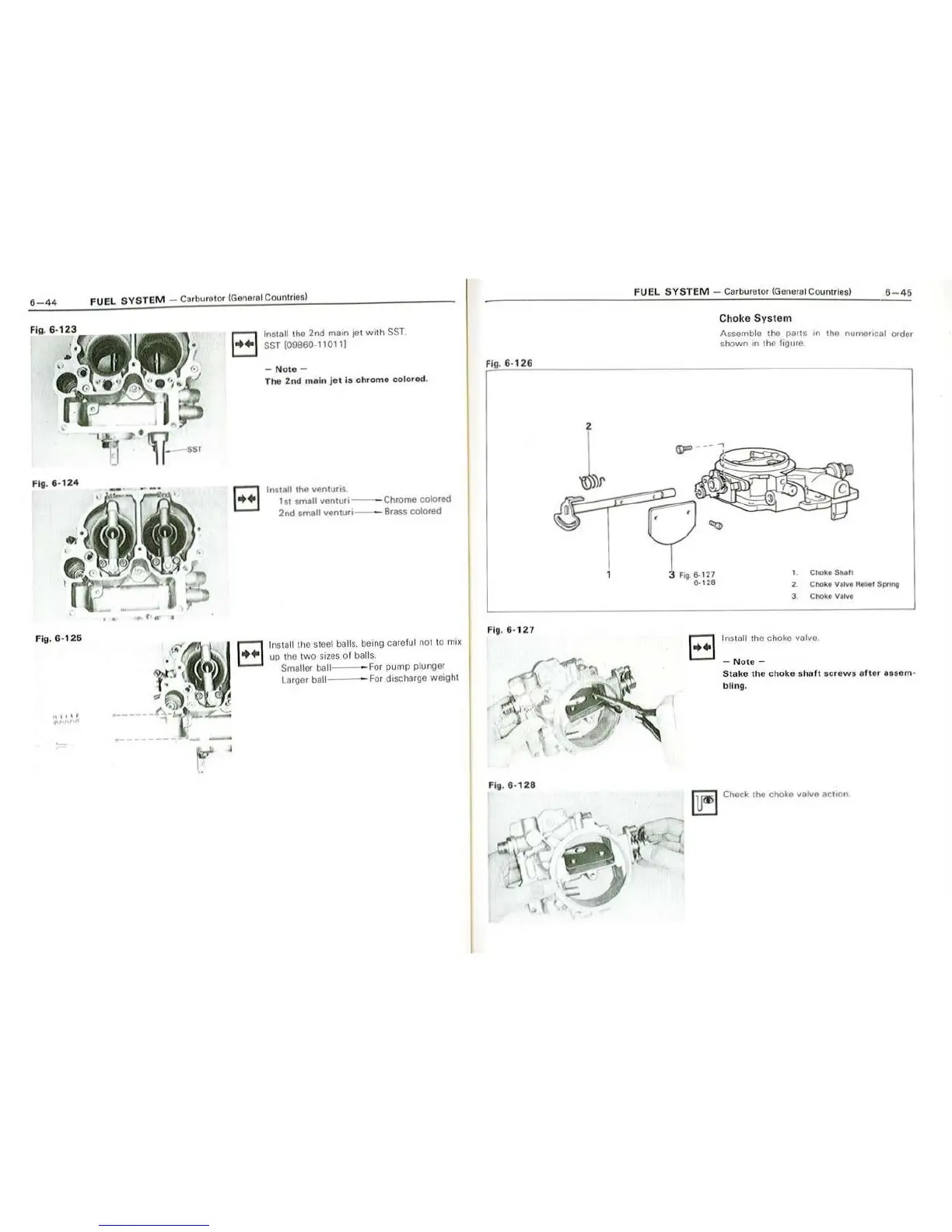

FUEL SYSTEM - Carburotor IGenorel Countries)
•
El
Install the 2nd main 1et with SST.
SST {09860-11011)
- Note -
The 2nd mai n jet is chrome colored .
Install the venturis
l st
small venturi Chrome colored
2nd small venturi- Brass colored
El
Insta ll the steel balls. being careful not to mix
up the two sizes of ba ll s.
Smaller ball- - - Fo1 pump plunger
Larger ball Fo r discharge weight
FUEL SYSTEM - Carburetor (General Countri es)
6 46
Choke System
Assemble the parts 1n the nume11ca1 order
shown
in the figure
Fig. 6·1_2 "' 6 ----------- --- -- --- -------- -
2
1
Flg . 6·127
Fig. 6 · 128
3 F;g.6- 12 7
6-128
El
l. Choke Shatt
2 Choke Va lve Relief Spring
3 Choke Valve
Install lhe choke valve
- N
ote -
Stake the choke sha ft screws ni t er asson>-
bling.
l 1J1'5 1 Cheek the choke valve action
