Toyota 2F - Distributor (FA & General FJ series)

8 -10
F(g. 8- 26
Fig. 8-27

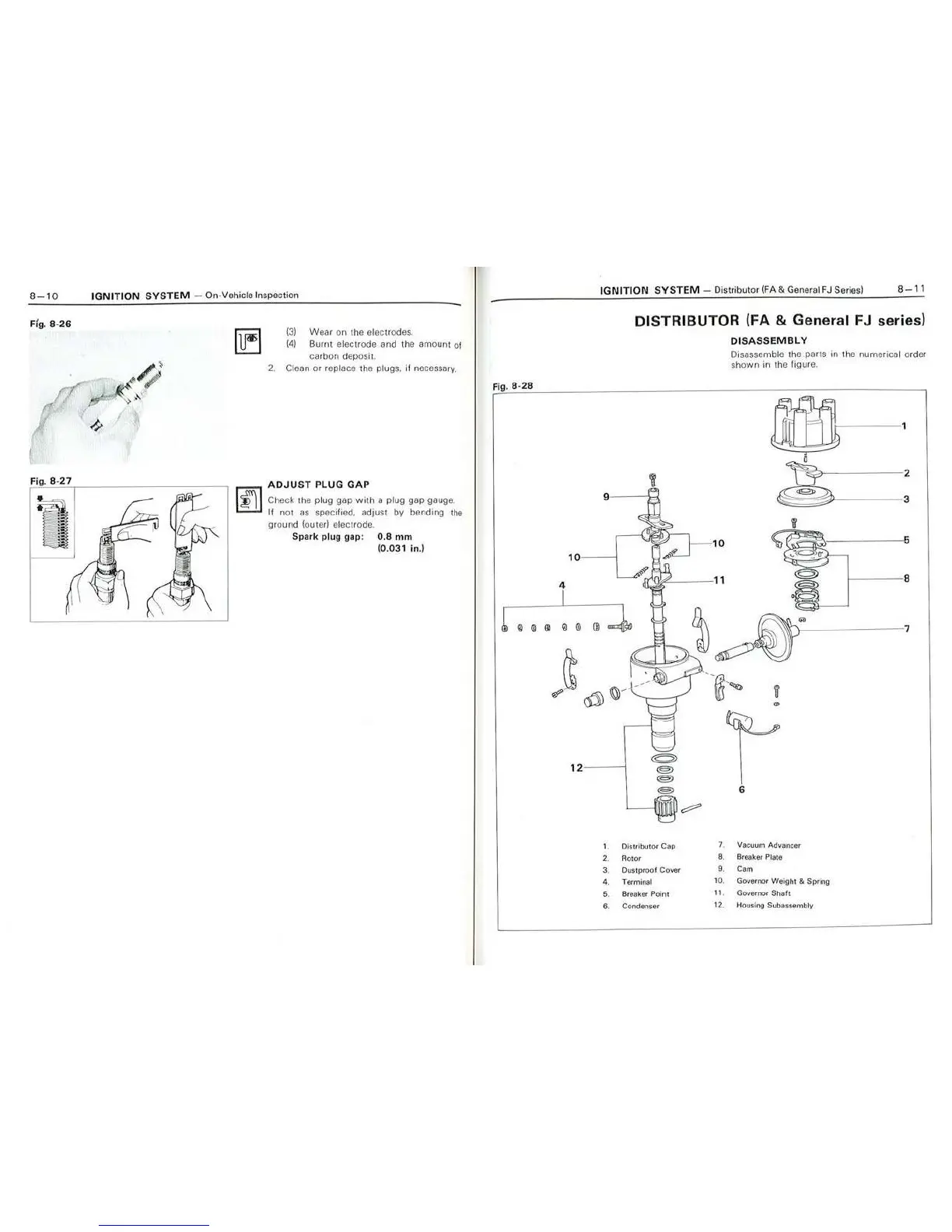

IGNITION SYSTEM - On-Ve hi cle Inspection
(3) Wear on the electrodes.
(4) Burnt electrode and the amount of
ca rbon deposil.
2. Clean 01 replace th e plugs. if ne cessa ry .
ADJUST PLUG GAP
Check t he plug gap with a plug gap gauge.
If not as speci fi ed. adjust by bendi ng the
ground (ou 1 erl electrode.
Spark pl ug gap: 0.8 mm
(0 . 031 in.I
Fig. 8 · 28
4
I
IGNITION SYSTEM - Distribu to r !F A & General FJ Seri es)
8 -11
10 - --1
DISTRIBUTOR (FA & General FJ series)
DISASSEMBLY
Disassemble the.pans In th e numer ic al 01 d er
shown in the figure.
e - 1
D
~,____ __ :
'if
1----- 8
..
l- ------ 7
12 ----1
l Disttlbu1 or Cap
7. V~uum Advancet
2. Rotor
8. Breciker Plate
3. Dustproot Cover
9. Cem
4. Terminal
10 , Gove r nor We ight & Spring
5.
Breaker Point
11, Governor Shaft
6.
Condenser
12 . H ous1119 Subassenlbly
