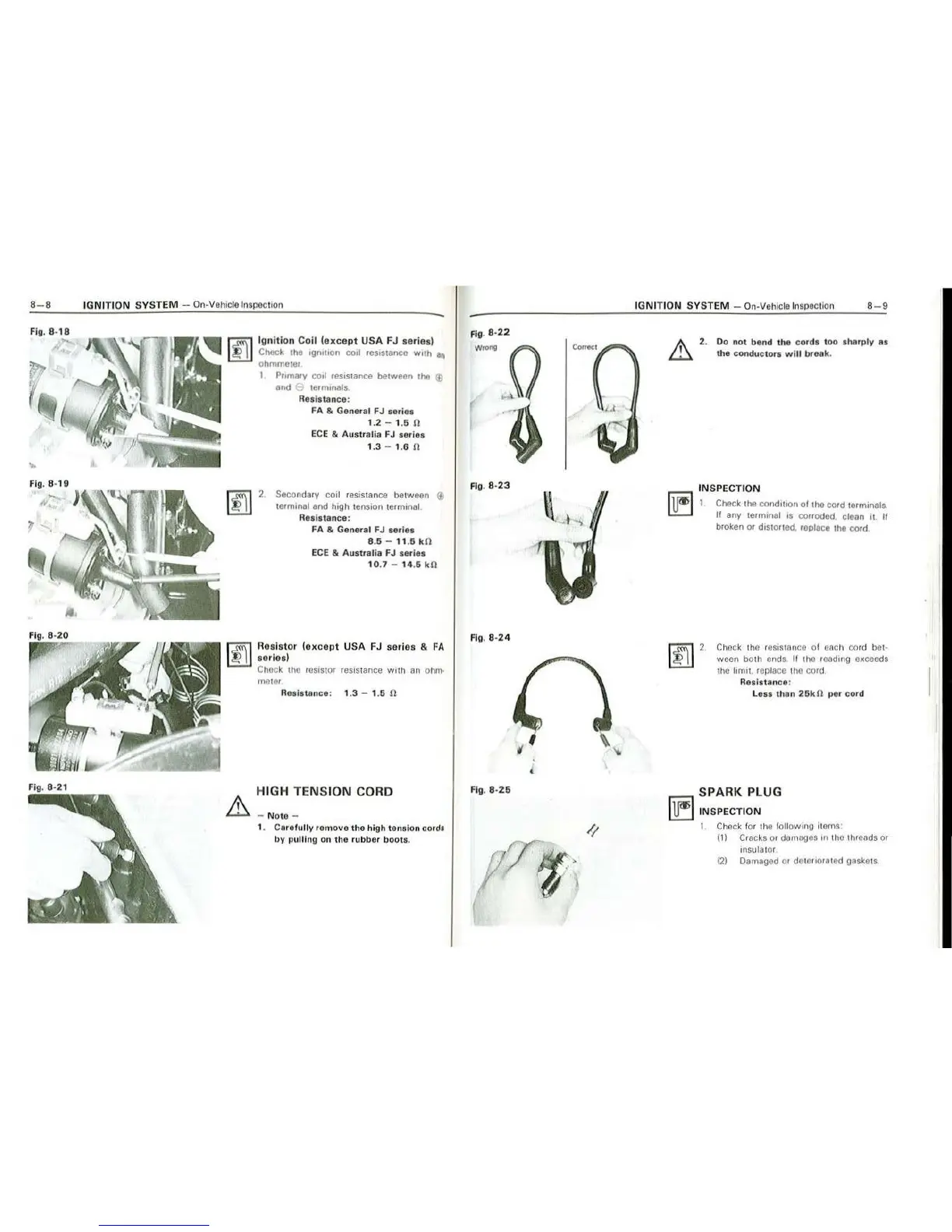

IGNIT I ON SYSTEM - On-Vehic le lnsp ee 1lon
Ignition Coil (ex cept USA FJ series)
Check 1he 1gn111on cool resosrnnce w11h
8
~
ohmme1er
l Primary cool res1s1ance be1ween lhe $
and "::! 1ermonals .
Resistance:
FA & General FJ series
1.2 - 1.5 0
ECE & Australia FJ series
1.3 - 1.6 0
~ 2 .
Secondary cool resis1ancc be1ween (ii)
terminal and hogh 1ension 1 ermonal
Resistance:
&
FA & General FJ series
8.5 - 11 .5 k O
ECE & Australia FJ ser ies
10 .7 - 14 .5 k O
Roslstor (exce11t USA FJ series & FA
sor l es l
Check
1he resistor resistance woth an ohm·
Resistance: 1.3 - 1.6 0
HIGH TENSION CORD
- N oto -
1. Ca r ef u ll y re move the high tension co rds
by pul lin g on the rubber boot s.
Fig . 8-22
wroog
fig. 8- 23
Fig . 8- 24
Fig. 8-25
IGNITION SYSTEM - On - Ve hic le lnspoclion
8-9
Do not bend the cords too sharply as
the conductors
will break.
INSPEC TIO N
Check the cond1
11on ol the cord te rminals.
If any termonal is corroded. clean 11. II
broken or distorted. replace 1he cord.
Check the resostonco ot each co rd bet-
ween bolh ends. II tho 1eading exceeds
the
lim11. replace tho cord.
Resistance:
Less than
25k 0 per cord
SPARK PLUG
l 1r5 l 1NSPECTION
1 Check f or 1he lollowing it ems ·
(I) Cracks
or damag es Ir• th o threads or
insulator.
(2) Damaged or dowroora1cd gaske t s.
