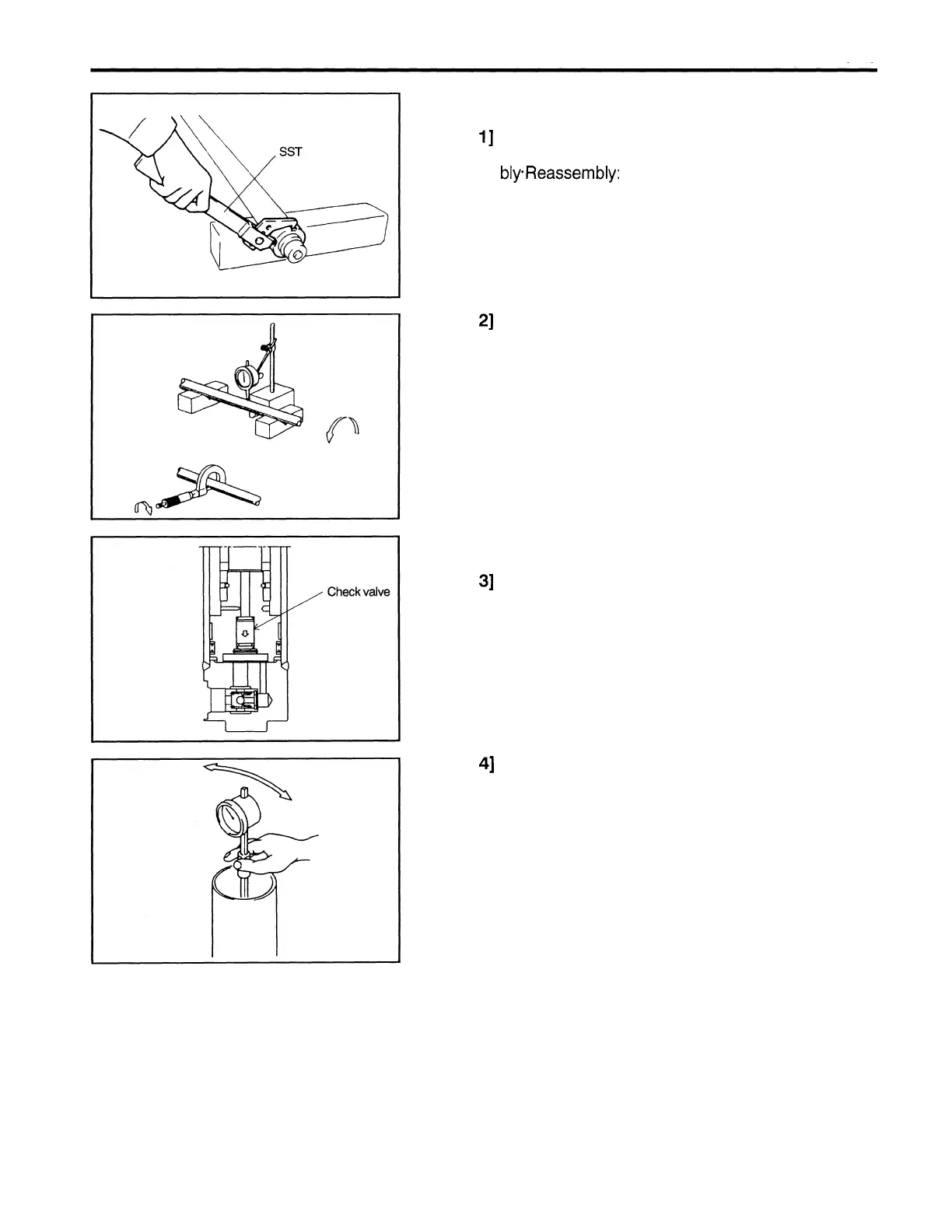

Point Operations
[Point
I]
Disassem bly.Reassembly:
SST
09620
-
1
01
00
-
71
[Point 21
Inspection:
Measure the piston rod outside diameter.
2
ton series and
3
ton series:
Standard: 50.8 mm (2.0 in)
Limit: 50.72 mm (1.9969 in)
Inspection:
Measure the piston rod bend.
Limit: 2.0 mm (0.079 in)
[Point
31
Assembly:
Install the check valve so that the arrow will direct down
-
ward of the front lift cylinder.
[Point 41
Inspection:
Measure the lift cylinder bore.
2
ton series
Standard: 75.0 mm (2.953 in)
Limit: 75.35 mm (2.9665 in)
3
ton series
Standard: 85.0 mm (3.346 in)
Limit: 85.40 mm (3.3622 in)
