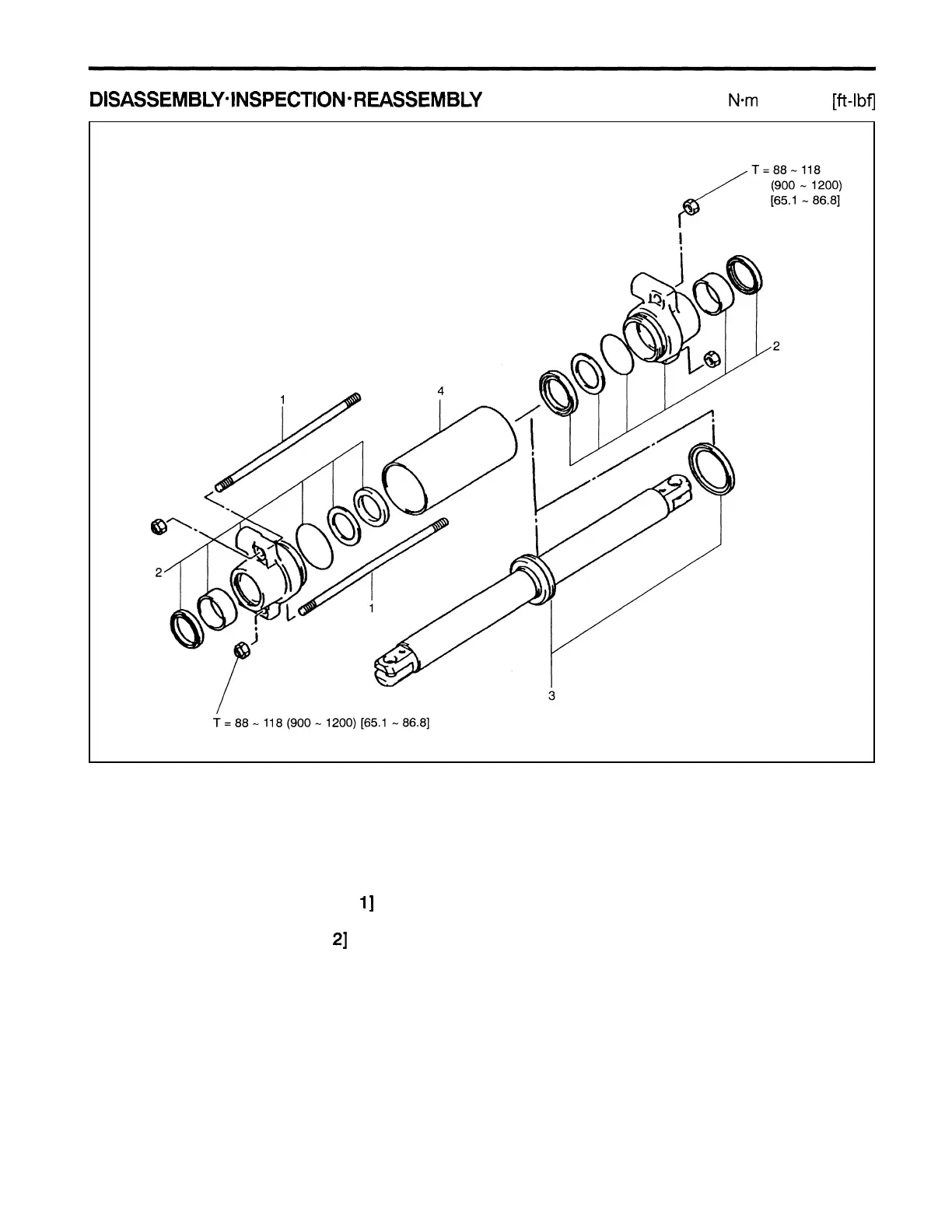

DISASSEMBLY*lNSPECTIONgREASSEMBLY T = N-m (kgf - cm) [ft-Ibfl
Disassembly Procedure
1 Remove the through bolt.
2 Remove the piston rod guide.
3
Remove the piston rod. [Point I]
4 Inspect the cylinder. [Point 21
Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
Note:
Coat hydraulic oil before reassembly.
