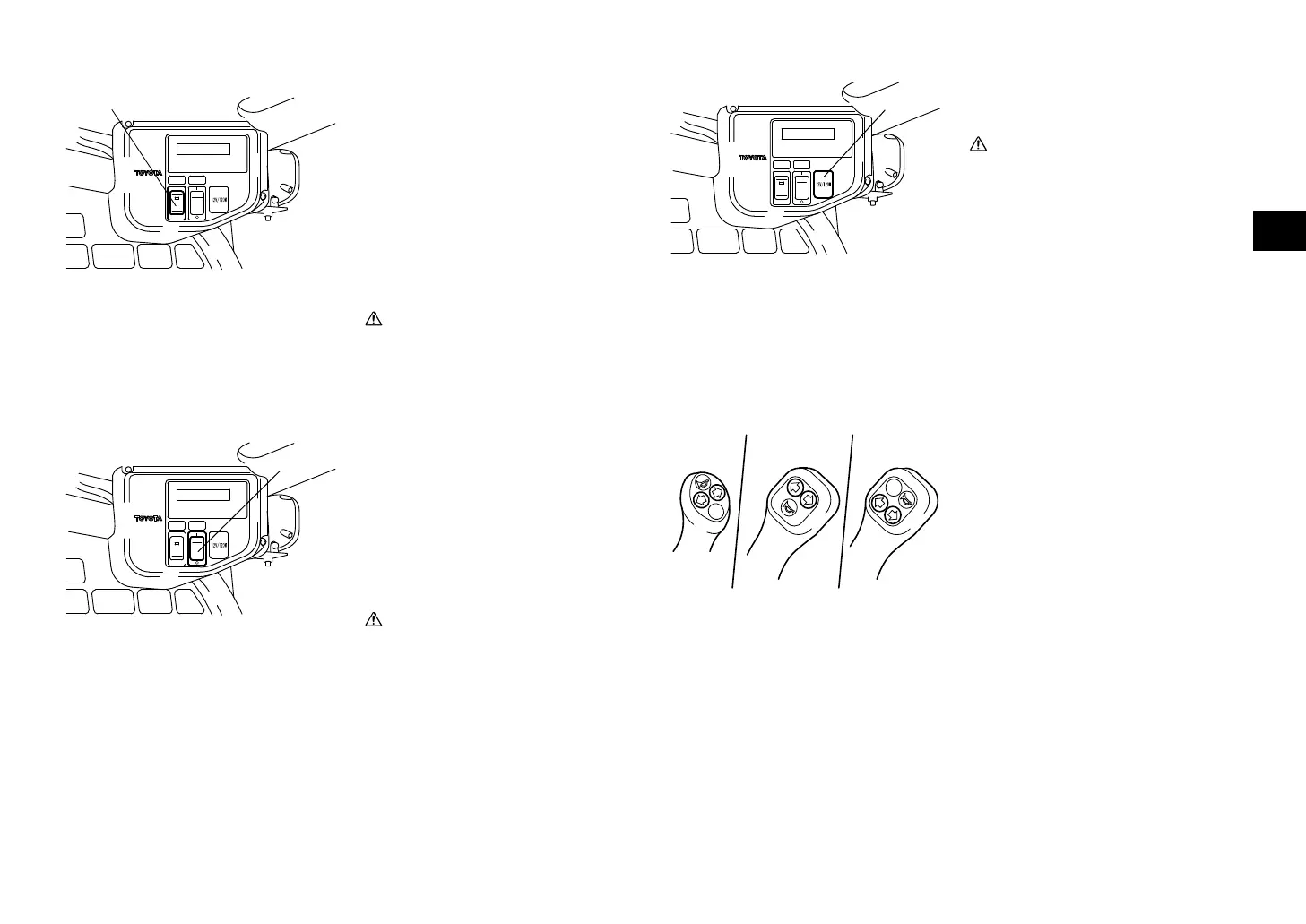

(1) Operation switch
Operation switch
When this switch is turned ON, traveling and
material handling operations can be started.
Also, when the switch is turned ON, the LED
lamp comes on to notify the operator that the
vehicle is operating.
With the interlock system, if the operator does
not sit in the seat properly, if the operator does
not lower the seat bar correctly, if the ignition
switch is not turned ON, if the operation switch
is not turned ON, if the parking brake switch is
not turned OFF, traveling and material handling
operations cannot be performed.
Make sure that the interlock system is oper-
ating when leaving the vehicle.
(1) Parking brake switch
Parking brake switch
When this switch is turned ON, the parking
brake can be engaged.
With the interlock system, if the operator does
not sit in the seat properly, if the operator does
not lower the seat bar correctly, if the ignition
switch is not turned ON, if the operation switch
is not turned ON, if the parking brake switch is
not turned OFF, traveling and material handling
operations cannot be performed.
When leaving the vehicle, make sure to turn
the parking brake switch ON and make sure
that the parking brake is operating.
(1) Accessory socket
Accessory socket
This socket can provide a power supply when
the ignition switch is turned ON.
Do not use in places subject to large amounts
of dust. Dust could build up inside the acces-
sory socket, causing malfunctions and/or
faults.
• Equipment up to 120W (10A) may be used.
• Use the socket with the engine in start con-
dition. If the socket is used with only the
ignition switch turned ON, the battery will
run flat, and as a result the engine may not
start.
(1) 30-5SDK5
(2) 30-5SDK8, 9, 10, 11
(3) 30-5SDK8, 9, 10, 11 (Option)
Turn signal switch (Option)
The turn signals blink to indicate the direction
to which the vehicle is to turn.
Left turn ......................... Push the switch to
left.
Right turn....................... Push the switch to
right.
This switch functions even with the ignition
switch OFF.
The turn signal blinks while the switch is
pressed.
