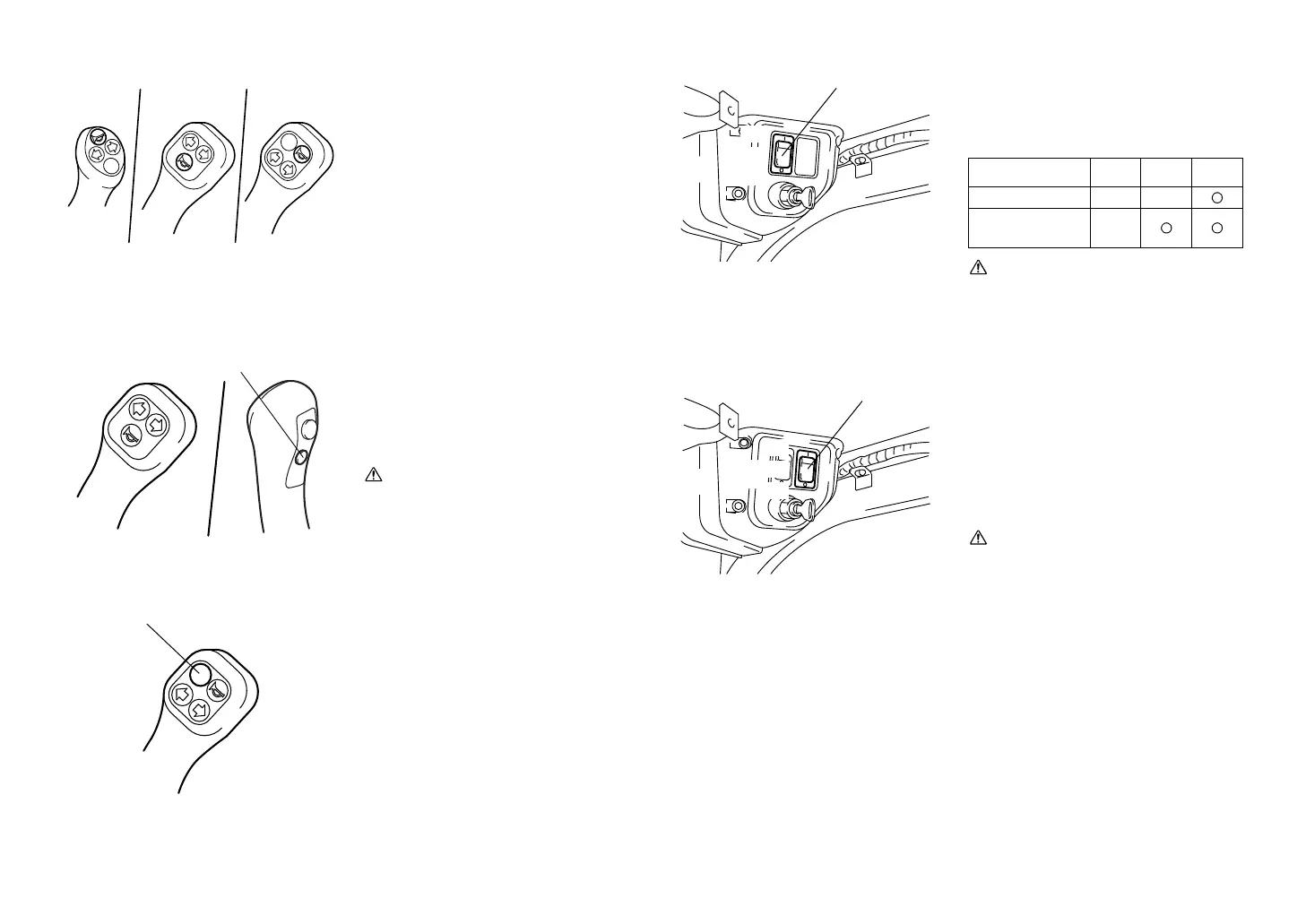

Horn switch
The horn is sounded by pushing the switch at
the tip of steering control lever (at left side).
The horn can be sounded even with the ignition
switch OFF.
(1) Ride control switch
(2) Ride control switch
(Material handling hand control vehicle:
Option)
Ride control switch (Option)
While this switch is push on, the hydraulic
accumulator activates and the lift arm vibration
is absorbed.
This feature contributes to dynamic stability
when traveling on rough road with load.
Do not operate this switch during material
handling operations.
• When the switch is turned ON, the arm may
move slightly.
• The arm moves upward and downward in
proportion to the weight of load and road
surface vibration.
• While the switch is held down, the leveling
function does not operate.
(1) Head lamp switch
(2) ON
(3) Center ON
(4) OFF
Head lamp switch
This is a 3-step type switch. The lamps which
come on for each position of the switch are
marked by a circle symbol in the table below.
Do not keep the head lamp and other lamps
on for a long time when the engine is not run-
ning.
It may consume the battery charge, resulting
in failure in engine starting.
OFF
Center
ON
ON
Head lamp - -
Side clearance lamp
(Option),
tail lamp (Option)
-
(1) Working lamp switch
(2) ON
(3) OFF
(4) BACK ON
Working lamp switch
When this switch is turned ON, the rear opera-
tion lamp is always on, if it is turned into the
BACK ON position, the lamp will light up only
when the vehicle is moving backwards.
Also, when the switch is turned ON, the LED
lamp comes on to notify the operator that the
rear operation lamp is on.
Do not keep the working lamp and other
lamps on for a long time when the engine is
not running.
It may consume the battery charge, resulting
in failure in engine starting.
