INSTRUMENTS

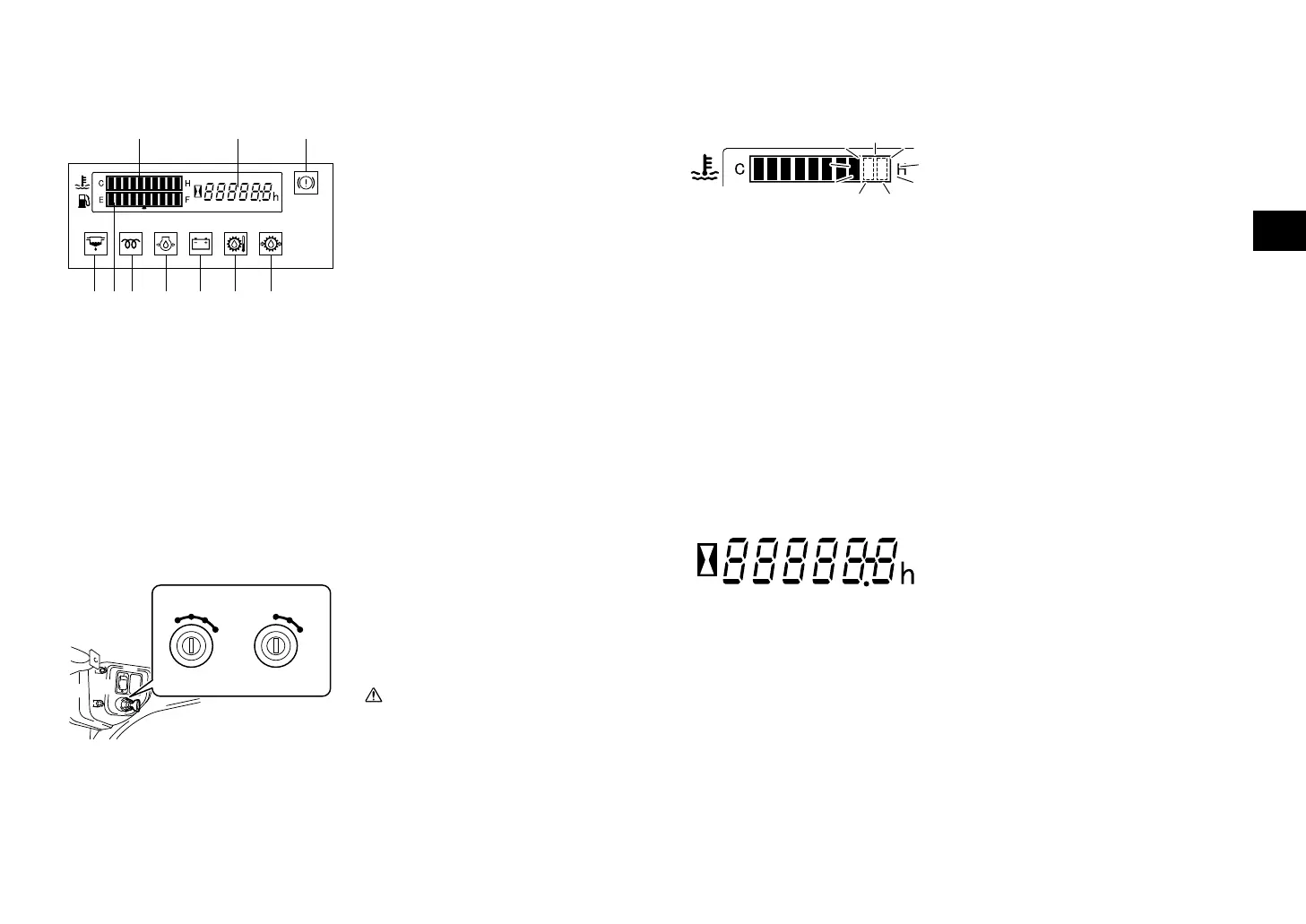

Combination meter
1. Water temperature gauge
2. Hour meter
3. Parking brake warning lamp
4. Sedimenter warning lamp
5. Fuel gauge
6. Glow indicator lamp
(3TNV88, 1DZ-II engine models)
Preheating indicator lamp
(2Z engine models)
7. Engine oil pressure warning lamp
8. Charge warning lamp
9. HST oil temperature warning lamp
10. HST oil filter warning lamp
(1) ON
(2) 3TNV88 engine models
(3) 1DZ-II, 2Z engine models
Each warning lamp check method
Please check if all warning lamps come on
when the ignition switch is turned to ON.
Use the light control switch to check the meter-
lighting lamp.
• The glow indicator lamp is only on for 2
seconds when the engine coolant temper-
ature exceeds 50ºC.
• If a lamp does not light up, contact your
Toyota dealer to request an inspection.
Water temperature gauge
Indicates the temperature of the engine coolant.
1. This gauge functions with the ignition
switch ON, and displays the coolant water
temperature from left to right in a 10-stage
gradation scale.
2. The operator will be notified when the
water temperature is 95ºC or over (above
8th stage), as the final two stages at far
right begin blinking. Again, when the
engine protection function activates, the
entire gauge will start blinking to inform
the operator.
3. Temporary overheating may be caused by
coolant leakage, low engine coolant level,
loosened fan belt, or other problem in the
cooling system. Contact your Toyota
dealer to request an inspection.
Hour meter
The hour meter operates when the ignition
switch is turned to ON. It indicates the total
number of vehicle operating hours.
The unit of the right most digit is 1/10 hour.
Please use this meter for the timing of periodic
maintenance and recording the operation hours.
