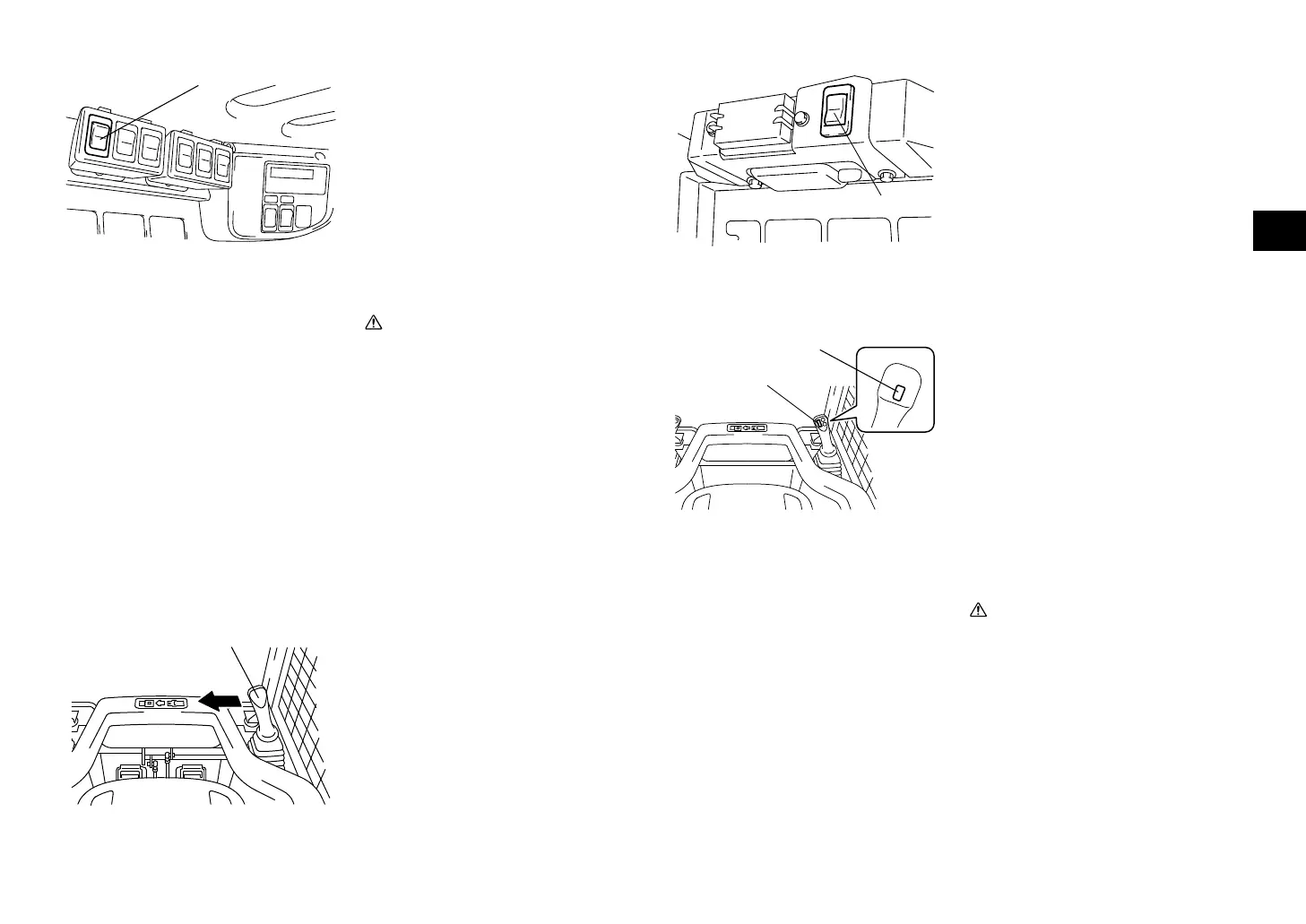

(1) External hydraulic pressure supply switch
External hydraulic pressure supply
switch
When this switch is turned ON, the vehicle with
an attachment installed can be used as a power
unit.
Also, when the switch is turned ON, the LED
lamp comes on to notify the operator that exter-
nal hydraulic pressure can be supplied.
Note:
When the seat bar is raised and the switch is
turned ON, the vehicle enters the external
hydraulic pressure supply status, therefore it
cannot travel or perform material handling
operations.
Caution
Caution
• Turn ON the external hydraulic pressure
supply switch after making sure that the
bucket has been grounded and that the
operation switch and the parking brake
switch are turned ON.
• Since oil can be conveyed oil from the
attachment pipe even when the driver is
not in the driving seat, please pay attention
when climbing in and out of the vehicle.
(1)
(1) Steering control lever
Operation
(Standard vehicle)
1. Firmly raise the seat bar.
2. Turn ON the external hydraulic pressure
supply switch.
(At this time the LED lamp comes on.)
3. Operate the steering control lever (at right
side) towards the left.
(1)
(1) Attachment detent switch
4. If oil conveying should be maintained,
press the attachment detent switch to
move the steering control lever (at right
side) fully towards the left.
(The lever will remain in this position.)
5. If oil conveying should be stopped, return
the steering control lever (at right side) to
the center position or turn OFF the attach-
ment detent switch.
(When the attachment detent switch is
turned OFF, the lever will automatically
return to the center position.)
(1)
(1) Attachment output maintenance switch
(2) Attachment operation switch
Operation
(Material handling hand control vehicle: Option)
1. Firmly raise the seat bar.
2. Turn ON the external hydraulic pressure
supply switch.
(At this time the LED lamp comes on.)
Note:
When the external hydraulic pressure supply
switch is turned ON, the attachment operation
switch will be disabled.
3. When the attachment output maintenance
switch is pressed, oil conveying starts and
will be maintained.
4. To stop oil conveying, press the attach-
ment output maintenance switch again.
Caution
Caution
When any of the following situations arise,
the external hydraulic pressure supply status
will be released and the LED lamp will go
off.
• When the external hydraulic pressure
supply switch is turned OFF.
• When the seat bar is lowered.
• When the ignition switch is turned OFF.
When the external hydraulic pressure supply
status is released as a result of any of the
above situations, after restoring the appro-
priate operational conditions, perform the
steps again.
(1)
(2)
