TOYOTA ─ Remote Engine Starter Page 8
OPERATION (PRIMARY FEATURES)

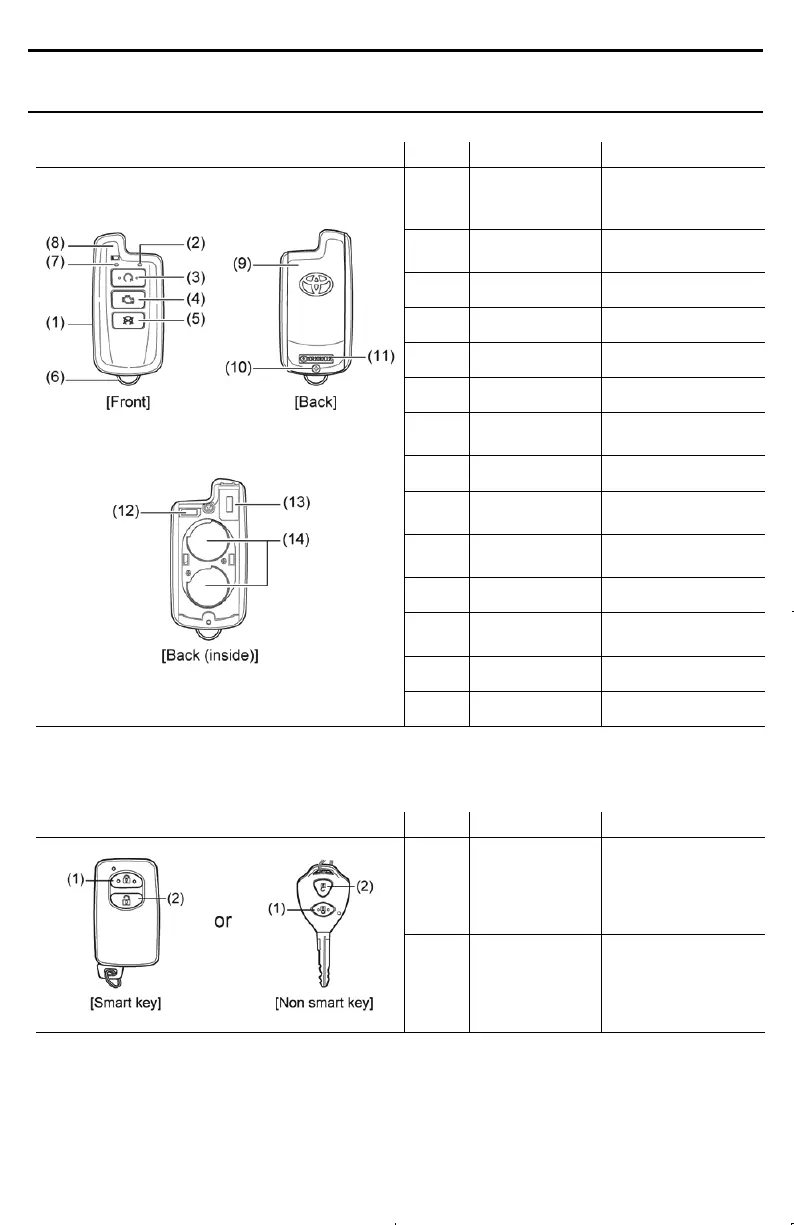

PARTS AND FUNCTION DESCRIPTION
Accessory remote control (TYPE A)
[x1 per accessory kit]
Item Description Function
(1)
Accessory
remote control
Only for remote
engine start/stop
operation
(2)
Light emitting
diode (LED)
Engine status
feedback
(3) Start button Start activation
(4) Engine button Enable system
(5) Stop button Stop activation
(6) Key ring Attachment
(7)
Light emitting
diode (LED)
Battery power level
indicator
(8) Built in antenna Signal transmission
(9) Battery cover
Battery access
protection
(10) Screw
Battery cover
attachment
(11) Battery model Easy identification
(12)
Serial number
label
Identification
(13) Certification label Regulation
(14) Battery Power
NOTE: Maximum number of accessory remote controls to be paired with one antenna: 4
Please contact your Toyota dealer to purchase replacement or extra remote control(s).
Original vehicle key fob (TYPE B)
[x2 per vehicle]
Item Description Function
(1) Lock button
Sequence of lock
signals to activate
remote engine control
(2) Unlock button
Unlock signals to
activate engine stop
NOTE: Actual vehicle keys may be different from illustration above. These vehicle key images are for
illustration purpose only. This Remote Engine Starter kit does not include any vehicle key fobs.
