Avensis (T25) TNS 700
Avensis (RHD) - 1201-07
Pliers
Splicing connector
Vehicle wire harness

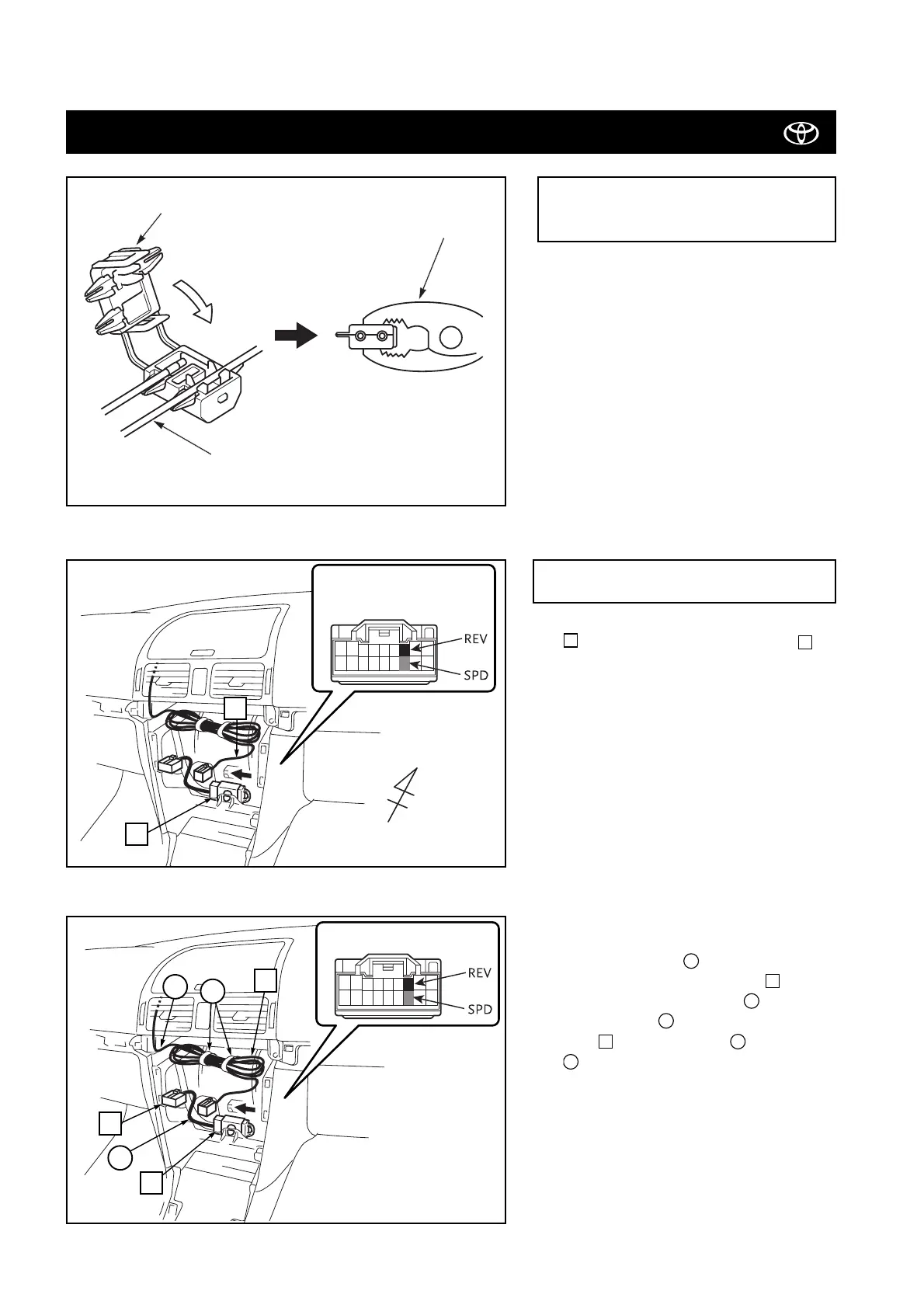

Fig. 9
a) Remove the vinyl tube or wrapping
tape from the length of vehicle wire
harness to be connected.
b) Insert the vehicle wire harness to
beconnected securely into the guide
slit.
c) After inserting the vehicle wire harness
into the guide slit, lock the splicing
connector securely using a pair of pliers
or the equivalent until the connector
clicks.
CONNECTING PROCEDURES OF
SPLICING CONNECTOR
Fig. 10
Fig. 11
WIRE SIDE VIEW
23
1. Disconnect the female 18P connector
of the vehicle wire harness as
shown.
28
23
3
28
29
28
WIRE SIDE VIEW
FOR MODELS WITH PRE-WIRE
23
4
9
WIRE HARNESS INSTALLATION
2.
a) Connect the female 18P connector of
the wire harness to the vehicle wire
harness male 18p connector .
b) Attach the wire harness and GPS-
antenna wire to the vehicle wire har-
ness using a wire tie .
: Wire tie (2x)
9
9
29
3
4
28
4
To Next Page
