60
GB
DEHUMIDIFIER
Model: TDE-20GSP21 & TDE-24GSP21
SPECIALIST’S MANUAL
The dehumidifi er should only be repaired and serviced by an authorized
licensed technician.
a. Any person who is involved with working on or braking into a refrigerant
circuit should hold a current valid certifi cate from an industry-accredited
assessment authority, which authorizes their competence to handle
refrigerants safely in accordance with an industry recognized assessment
specifi cation.
b. Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of other
skilled personnel shall be carried out under the supervision of the person
competent and offi cially authorized in the use of fl ammable refrigerants.
SAFETY PREPARATION WORK BEFORE INSTALLATION
The maximum refrigerant charge amount is shown on the following table a.
Note: Please refer to the nameplate for the charging quantity of R290.
Room area (m
2
)41115
Maximum charge (kg) <0.152 0.225 0.304
Table a – Maximum charge (kg)

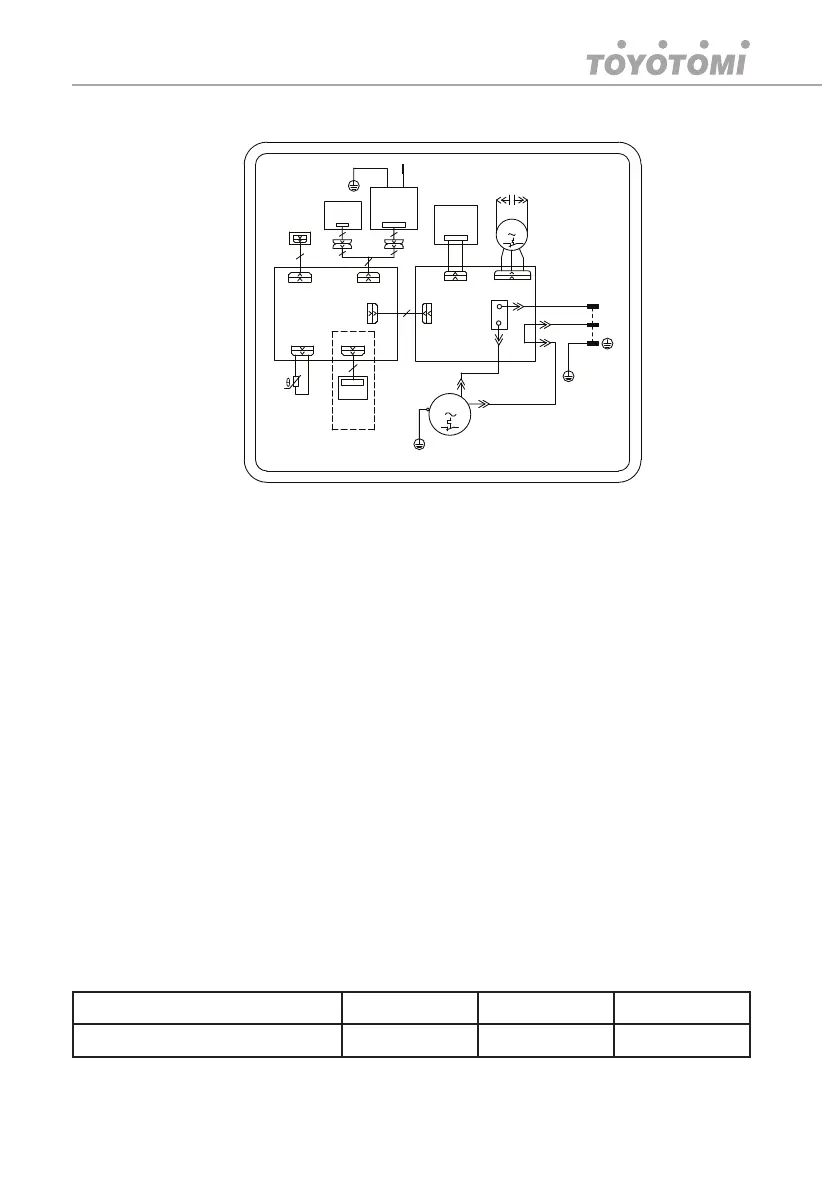

PE
AP1
DISP
AP2
DISP
BN(BK)
BU(WH)
TUBE TEMP.
BU
POWER
L
N
RD
AC-L
N
COMP
TEMP/HUM
CN5
YEGN(GN)
MAIN BOARD
DISPLAY
BOARD
HUMIDITY
SENSOR
ST
COMP
PE
YEGN
C
2
COMP.
TUBE
RT1
WIFI
SENSOR
WIFI
K4
HEALTH
MODULE
OPTIONAL
PE
YEGN
SWITCH
PROXIMITY
AP3
CARBON
BRUSH
CHARGED
PARTICLE
MODULE
MODULE
UV
600007065478
FAN
M1
BN
RD
C2
CAP.
FAN
MOTOR
To Next Page
