- 34 -
4.6 Wireless 2.4GHz

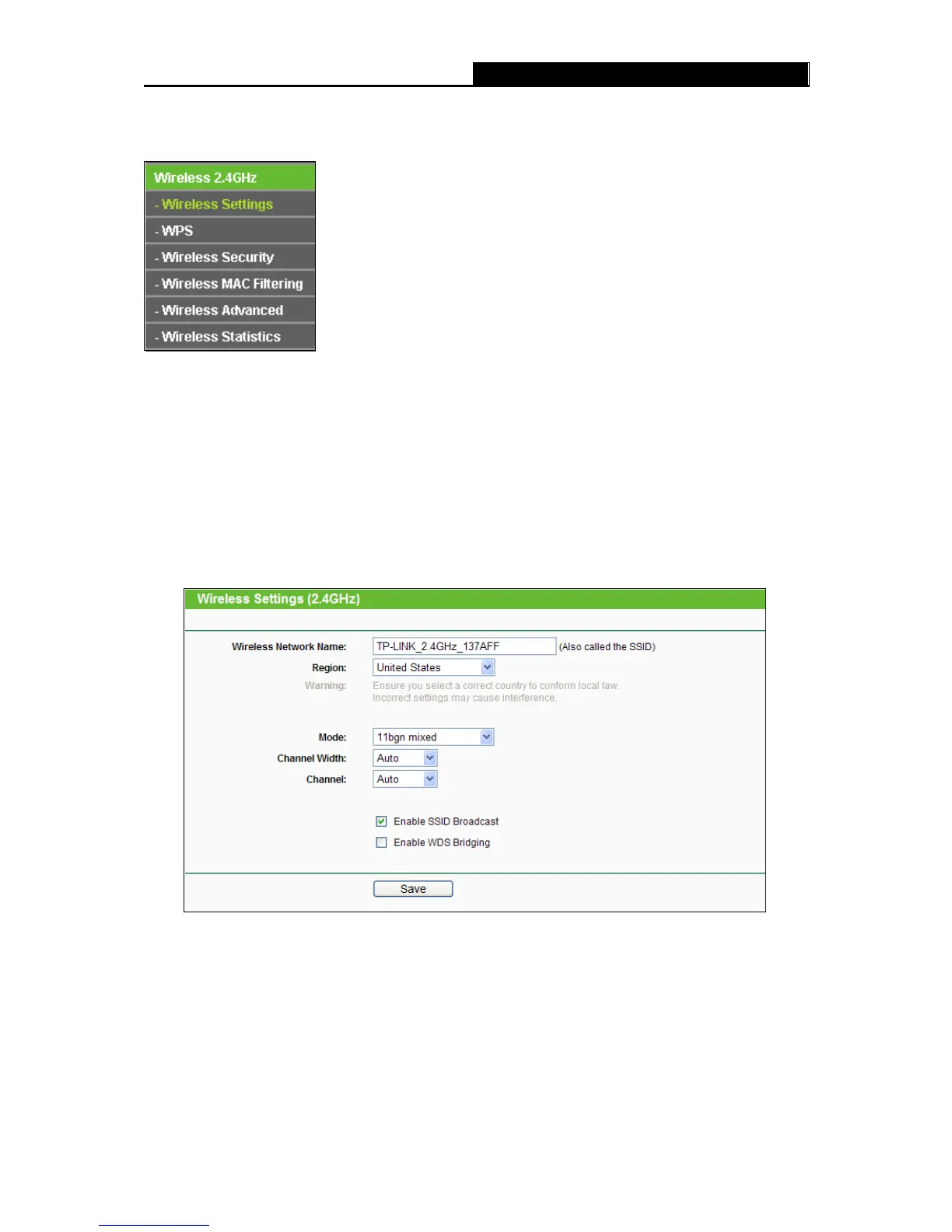

Figure 4-13 Wireless menu
There are six submenus under the Wireless menu (shown in Figure 4-13): Wireless Settings,
WPS, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless
Statistics. Click any of them, and you will be able to configure the corresponding functions.
4.6.1 Wireless Settings
Choose menu “Wireless 2.4GHz
Wireless Settings”, you can configure the basic settings for
the wireless network of 2.4GHz on this page.
Figure 4-14 Wireless Settings – 2.4GHz
Wireless Network Name - Also called the SSID (Service Set Identification). Enter a value of
up to 32 characters. The same name must be assigned to all wireless devices in your
network. Considering your wireless network security, the default SSID is set to be
TP-LINK_2.4GHz_XXXXXX. This value is case-sensitive. For example, TEST is NOT the
same as test.
