TP-Link Archer D5 - Page 82

Archer D5 AC1200 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
71

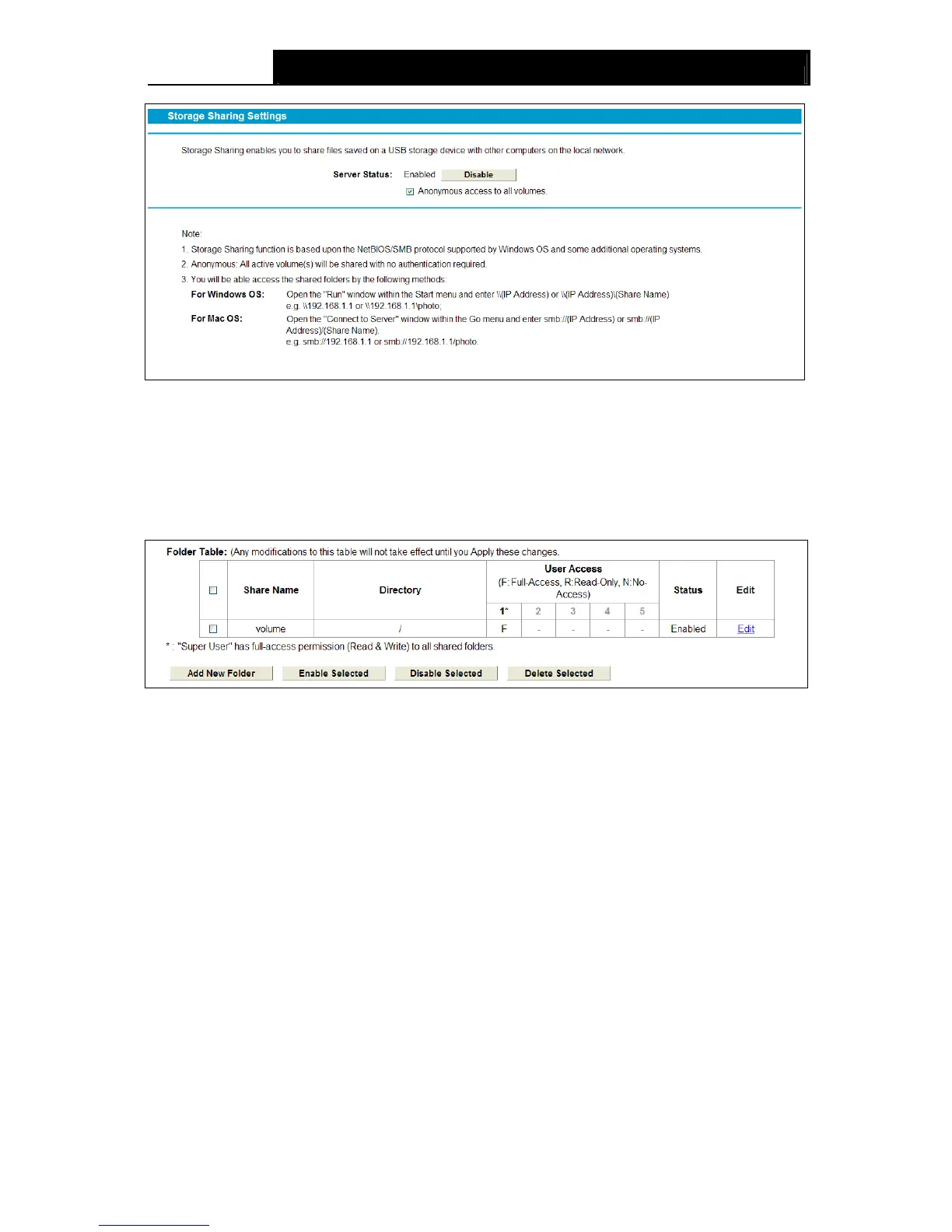

Figure 4-57
 Server Status: Indicates the Storage Sharing's current status.
 Anonymous access to all the volumes: This function is enabled by default, so that users
can access to all activated volumes without authentication. If you want to add a shared folder
which does not allow anonymous login, uncheck the box. Then Folder Table will be
displayed as shown below.
 Share Name: This folder's display name.
 Directory: The real full path of the specified folder.
 User Access: The authorization of users. * users mean Super Users who have the
full-access permission to all activated volumes and share folders.F stands for fully access, R
stands for read-only and N stands for no-access.
 Status: The status of the entry is enabled or disabled.
 Edit: Click Edit in the table, and then you can modify the entry.
To add a new folder, follow the instructions below.
1. Click Add New Folder.
