JetStream L2/L2+ Managed Switch
02 Introduction

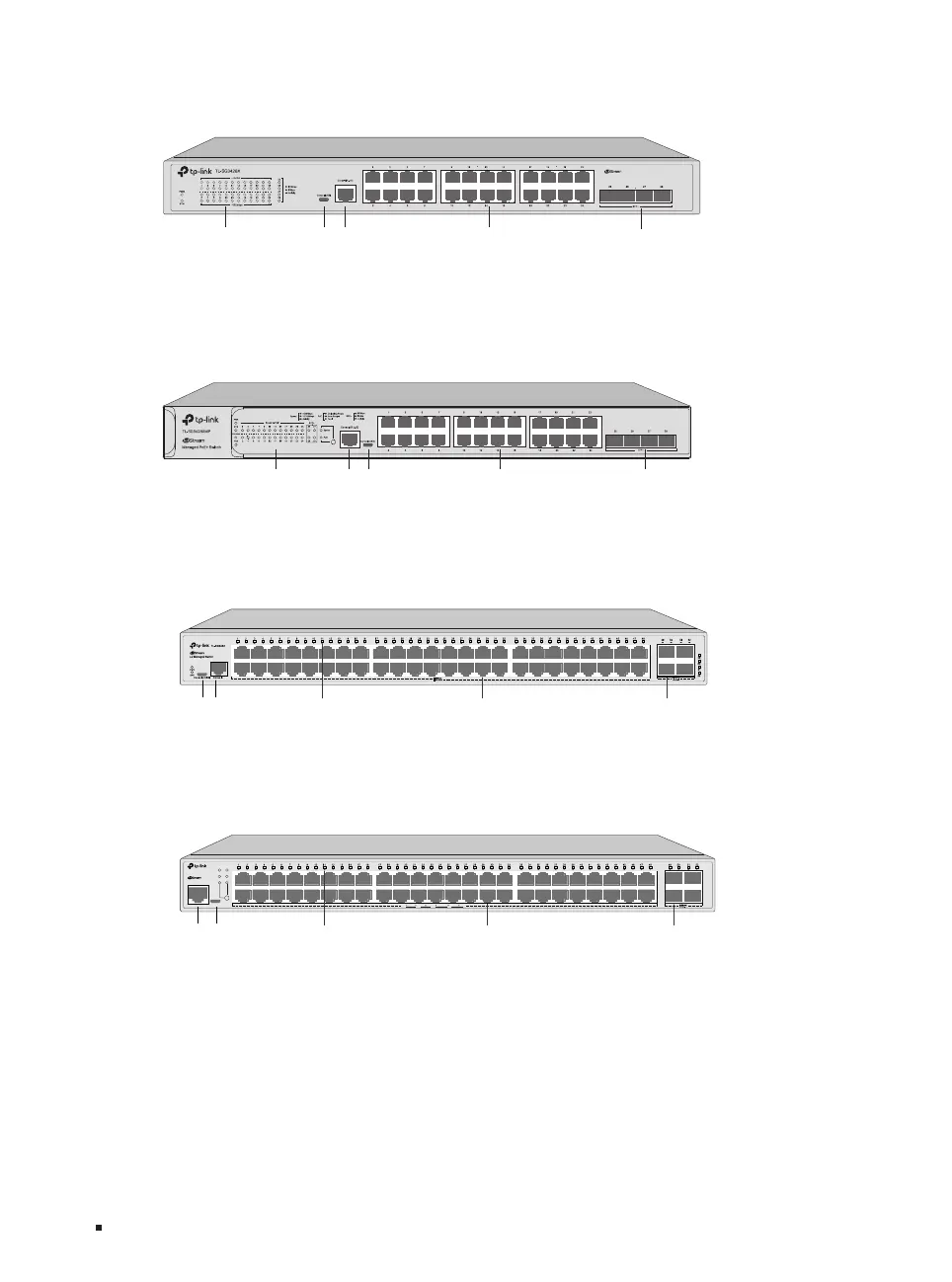

The front panel of TL-SG3428MP is shown as the following figure.
Figure 1-3 Front Panel of TL-SG3428MP
LED Console Port
(RJ45/USB)
1G
RJ45 Port
SFP Slot
The front panel of TL-SG3428XMP is shown as the following figure.
Figure 1-4 Front Panel of TL-SG3428XMP
LED Console Port
(RJ45/USB)
1G
RJ45 Port
SFP+ Slot
LEDs
For TL-SG3210XHP-M2
LED Indication
PWR
On: The switch is powered on.
Off: The switch is powered off or power supply is abnormal.
Flashing: Power supply is abnormal.
SYS
Flashing: The switch works properly.
On or Off: The switch works improperly.
PoE Max
On: The remaining PoE power is ≤ 7 W.
Flashing: The remaining PoE power keeps ≤ 7 W after this LED is on for 2 minutes.
Off: The remaining PoE power is > 7 W.
FAN
Green: All the fans work properly.
Yellow: Not all the fans work properly.
Speed
Green On: Running at 2.5 Gbps, but no activity.
Green Flashing: Running at 2.5 Gbps and transmitting or receiving data.
Yellow On: Running at 100/1000 Mbps, but no activity.
Yellow Flashing: Running at 100/1000 Mbps and transmitting or receiving data.
Off: No device is linked to the corresponding port.
