• In order to better protect the power supply module during
removal, it is recommended that you package it in an
antistatic bag.
2.4 Connecting the Power Cord
• Connecting the Power Cord
After the power supply module is installed on the switch,
please plug the female connector of the provided power cord
into the power socket of the device, and the male connector
into a power outlet as the following figure shows.

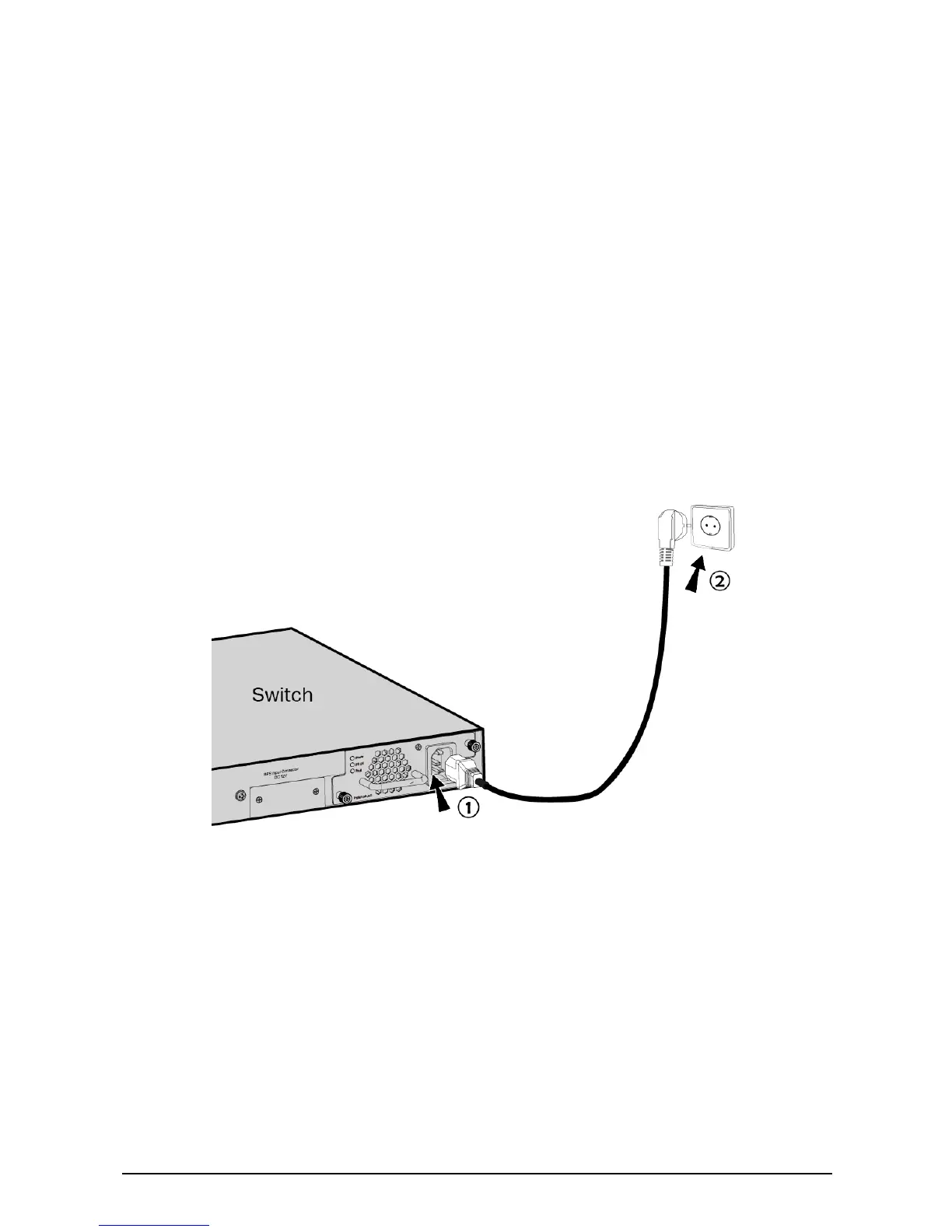

Figure 2-4 Connect the Power Cord
2.5 Verifying the Installation
To verify the installation status of PSM150-AC, firstly, please
make sure the two captive screws on PSM150-AC are
tightened, then connect the power cord and check the LEDs
of PSM150-AC. If the Power LED is on while Fault LED is off, it
