TG-3269 Gigabit PCI Network Adapter
11

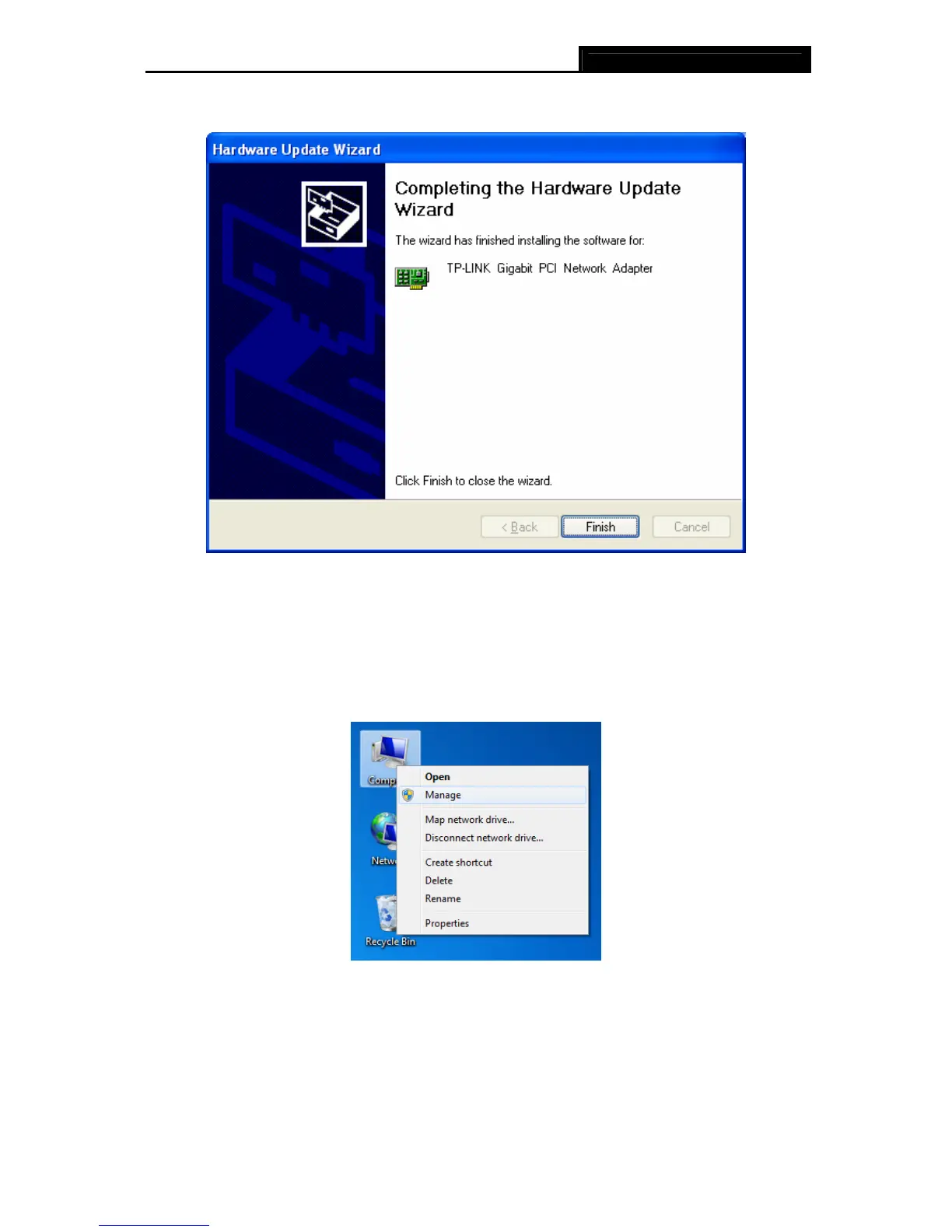

13. Click Finish to complete the installation.
Figure 2-13
2.2.2 For Windows 7
1. Insert the TP-LINK Resource CD into the CD-ROM drive.
2. Right-click the icon Computer on the desktop, and then click Manage.
Figure 2-14
3. The Computer Management screen will appear as shown in Figure 2-15. Click Device
Manager, and then you will see the various options on the right. Click Network adapters,
and then from the drop-down list please find the new network adapter Realtek RTL
8169/8110 Family PCI Gigabit Ethernet NIC (NDIS 6.20) you have installed. Right-click it,
