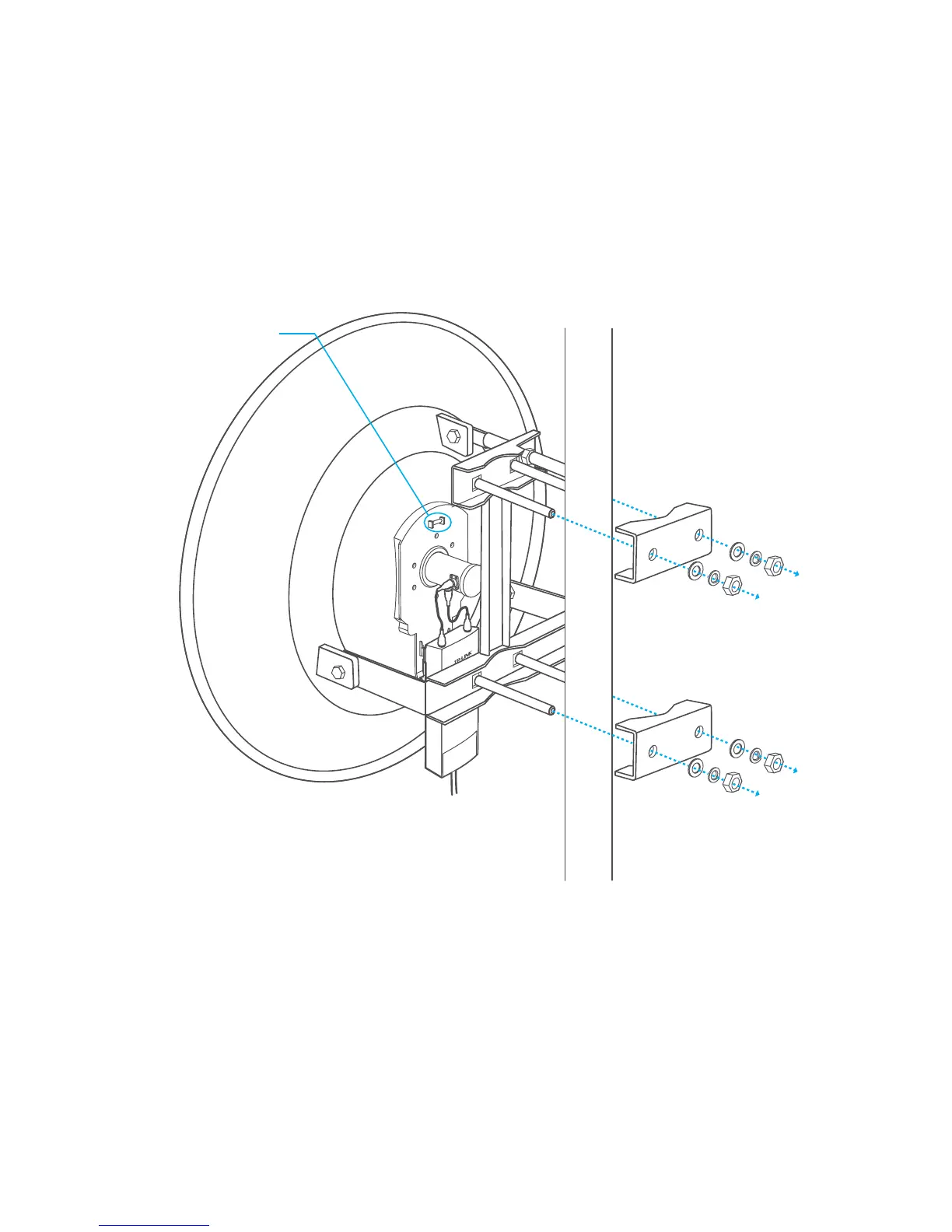

8. Mount the antenna assembly to the pole using the two Pole-mount
Clamps and the four sets of flat washers, spring washers and nuts of
the M10x150 Carriage Bolt Assemblies.
Note:
1. Pole diameter ranges from 1.5 in to 4.0 in.
2. Do not over-tighten these bolts and nuts to allow angle adjustment later.
3. In step 8 to 9, use the Level Vital to ensure proper alignment.
8
Level Vial
To Next Page
