TP-Link TL-ANT2424MD - Page 9

7

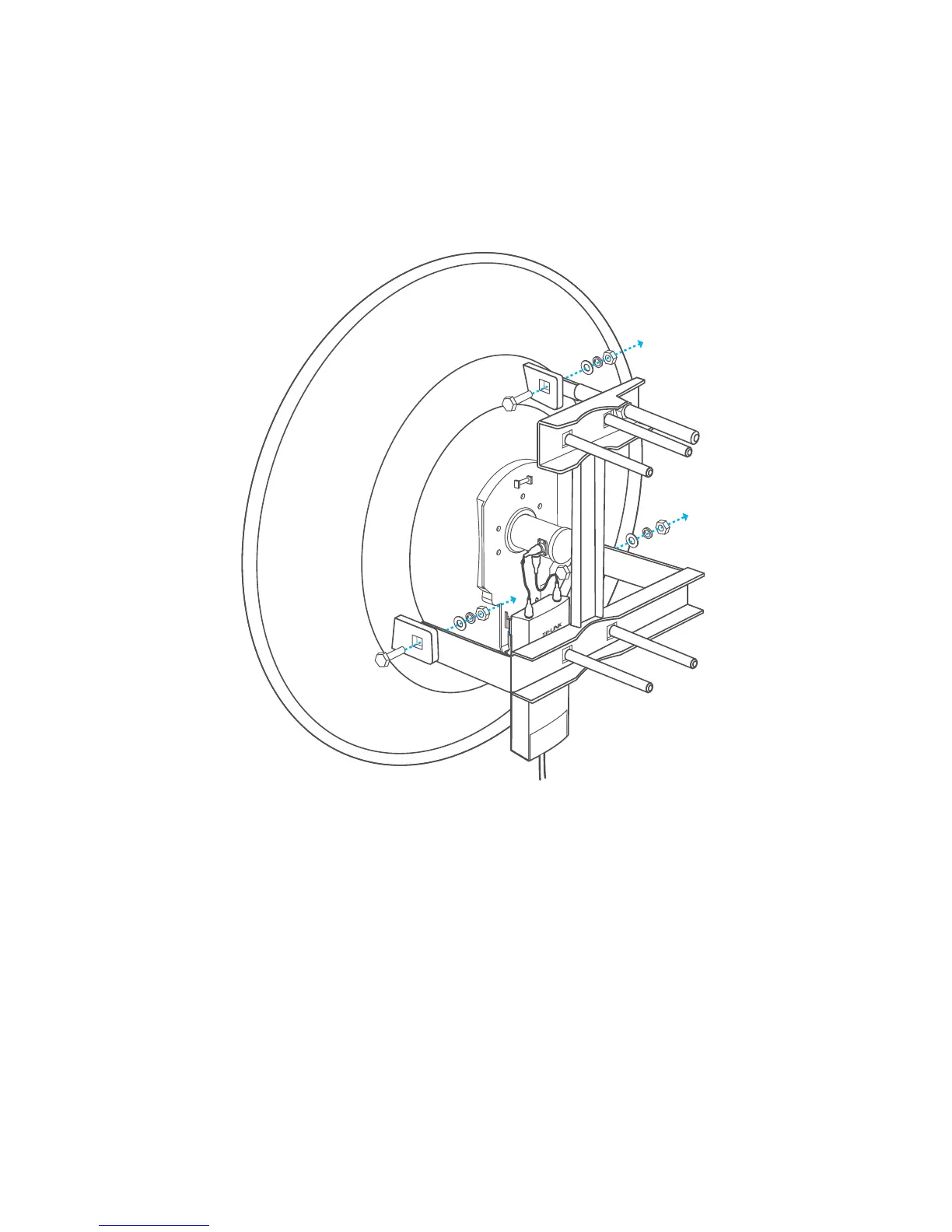

7. Attach the Dish Reflector to the Antenna-mount Bracket:
a. Secure one M10x35 Carriage Bolt Assembly to attach the Dish
Reflector to the Elevation Rod.
b. Secure two M10x35 Carriage Bolt Assemblies to attach the Dish
Reflector to the lower section of the Antenna-mount bracket.
