4

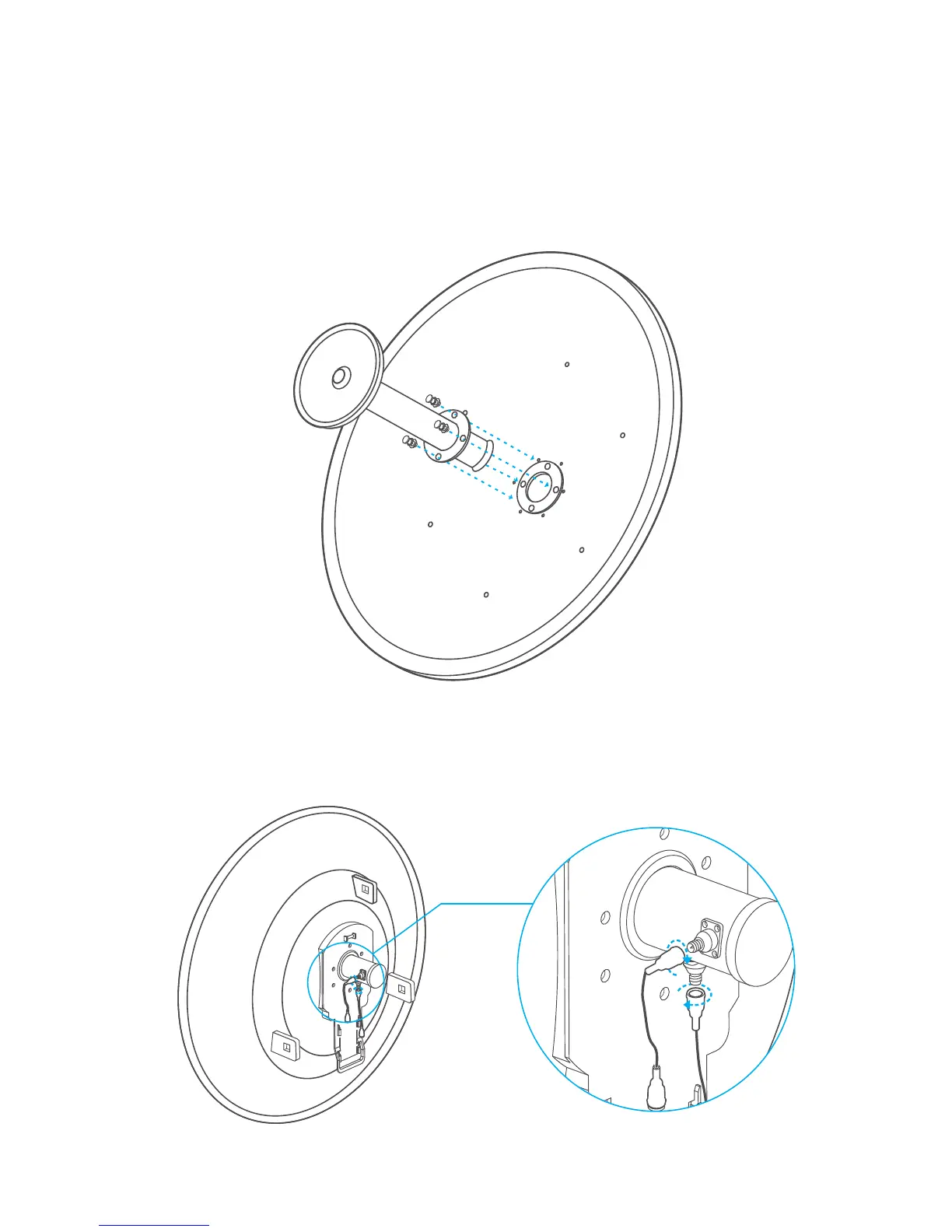

1. Secure the Antenna Feed to the Dish Reflector using the four M4
Bolts and a Phillips screwdriver.
Hardware Installation
2. Connect the RF Cables to the RF Connectors on the Antenna Feed.
Note: Do not handle the Dish Reflector by the Antenna Feed once the feed is installed.
Note: TL-ANT 2424MD doesn't require this step, please go directly to step 3.
