TP-Link TL-ANT2424MD - Page 7

5

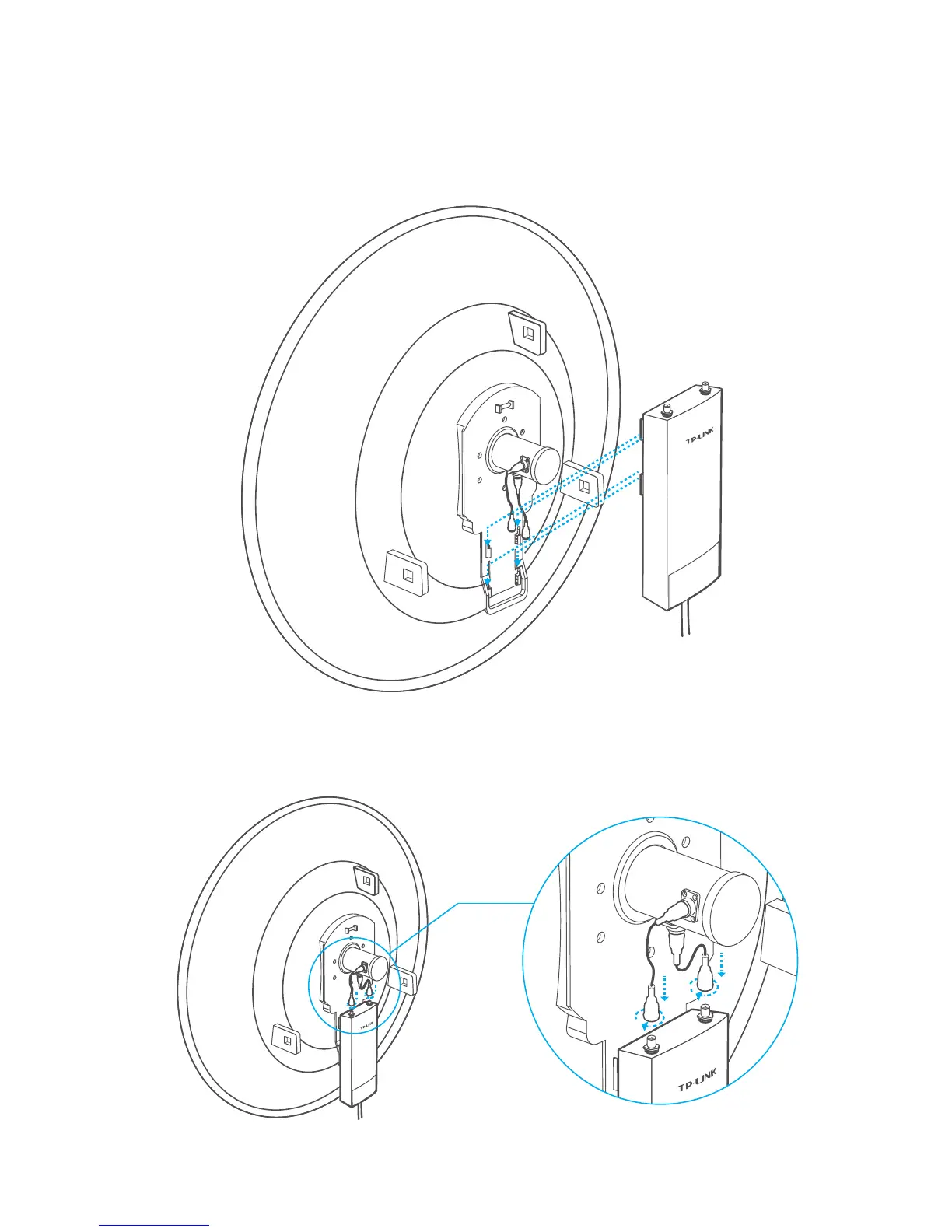

3. Attach the Base Station to the Dish Reflector as follows:
a. Align the mounting tabs on the back of the Base Station with the
four mounting slots on the Base Station mounting bracket.
b. Slide the Base Station down until it locks into place.
4. Connect the other ends of the RF Cables to the Base Station.
