-105-
Bytes Rx: Displays the bytes of packets received on the interface.
Bytes Tx: Displays the bytes of packets transmitted on the interface.
¾ Advanced WAN Information
Interface: Displays the interface.
IP Fragment Rx: Displays the amount of IP Fragments received by WAN port.
Abnormal IP Packets Rx: Displays the rate for transmitting data frames.
3.6.3.2 IP Traffic Statistics
IP Traffic Statistics screen displays the detailed traffic information of each PC on LAN or DMZ.
Choose the menu Maintenance→Statistics→IP Traffic Statistics to load the following page.

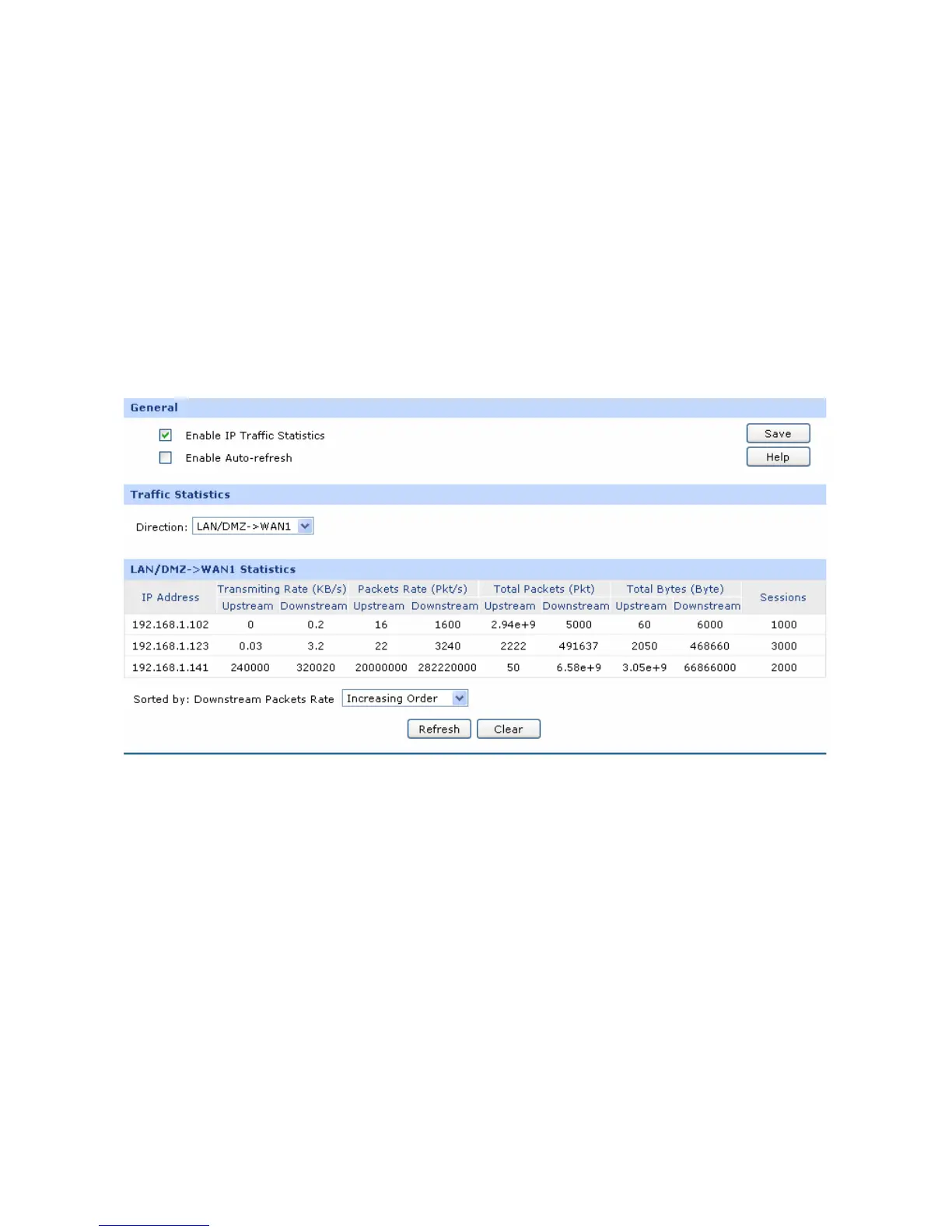

Figure 3-77 IP Traffic Statistics
The following items are displayed on this screen:
¾ General
Enable IP Traffic
Statistics:
Allows you to enable or disable IP Traffic Statistics.
Enable Auto-refresh: Allows you to enable/disable refreshing the IP Traffic Statistics
automatically. The default refresh interval is 5 seconds.
¾ Traffic Statistics
Direction: Select the direction in the drop-down list to get the Flow Statistics o
f
the specified direction.
¾ IP Traffic Statistics
This table displays the detailed traffic information of corresponding PCs.
