-48-
3.3.1.3 Multi-Nets NAT
Multi-Nets NAT functions to allow the IP under LAN or DMZ port within multiple subnets to access the
Internet via NAT.
Choose the menu Advanced→NAT→Multi-Nets NAT to load the following page.

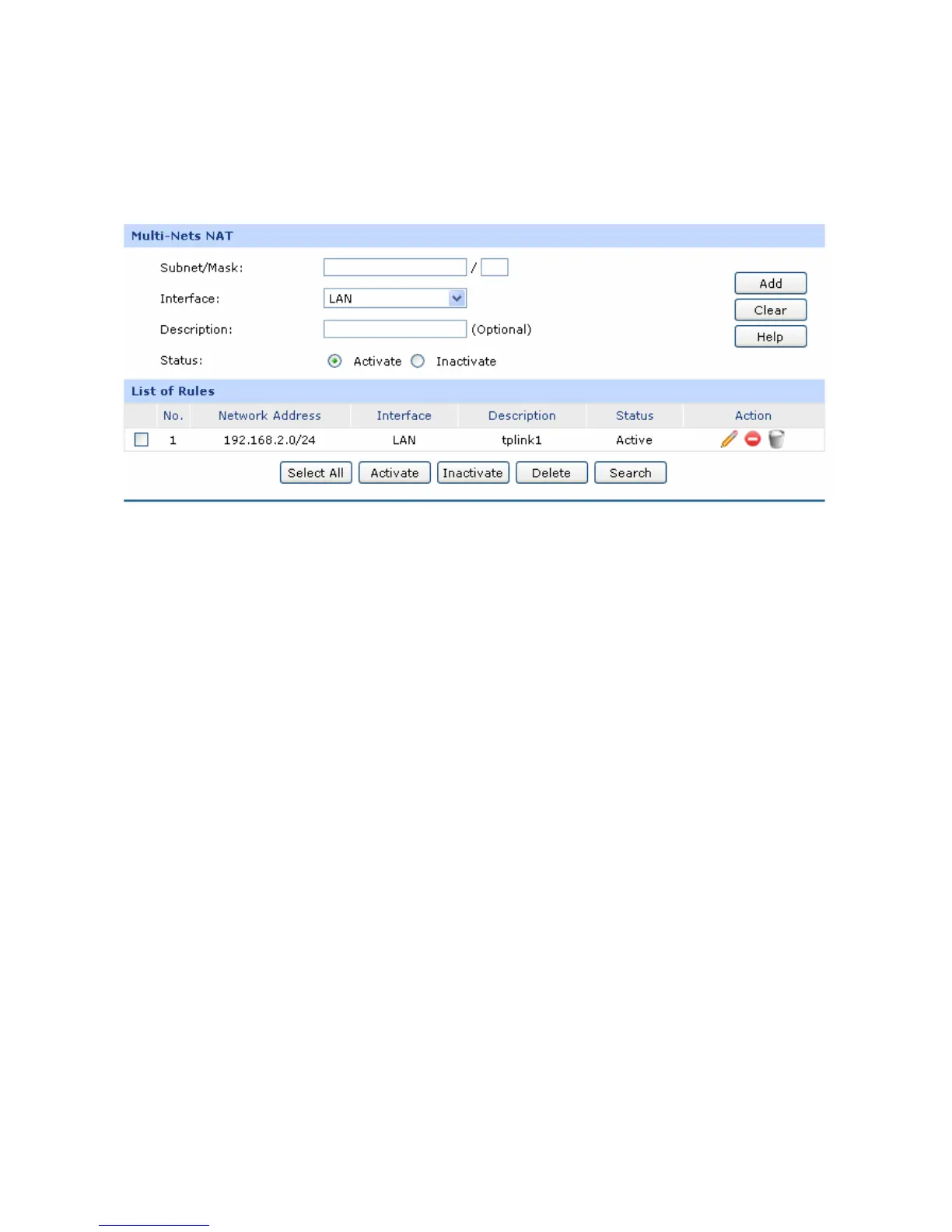

Figure 3-32 Multi-Nets NAT
The following items are displayed on this screen:
¾ Multi-Nets NAT
Subnet/Mask:
Enter the subnet/mask to make the address range for the entry.
Interface:
Select the interface for the entry. You can select LAN or DMZ port.
Description:
Give a description for the entry.
Status:
Activate or inactivate the entry.
¾ list of Rules
You can view the information of the entries and edit them by the Action buttons.
The first entry in Figure 3-32 indicates that: This is a Multi-Nets NAT entry named tplink1. The subnet
under the LAN port of the router is 192.168.2.0/24 and this entry is activated. After the corresponding
Static Route entry is set, the hosts within this subnet can access the Internet through the router via
NAT.
